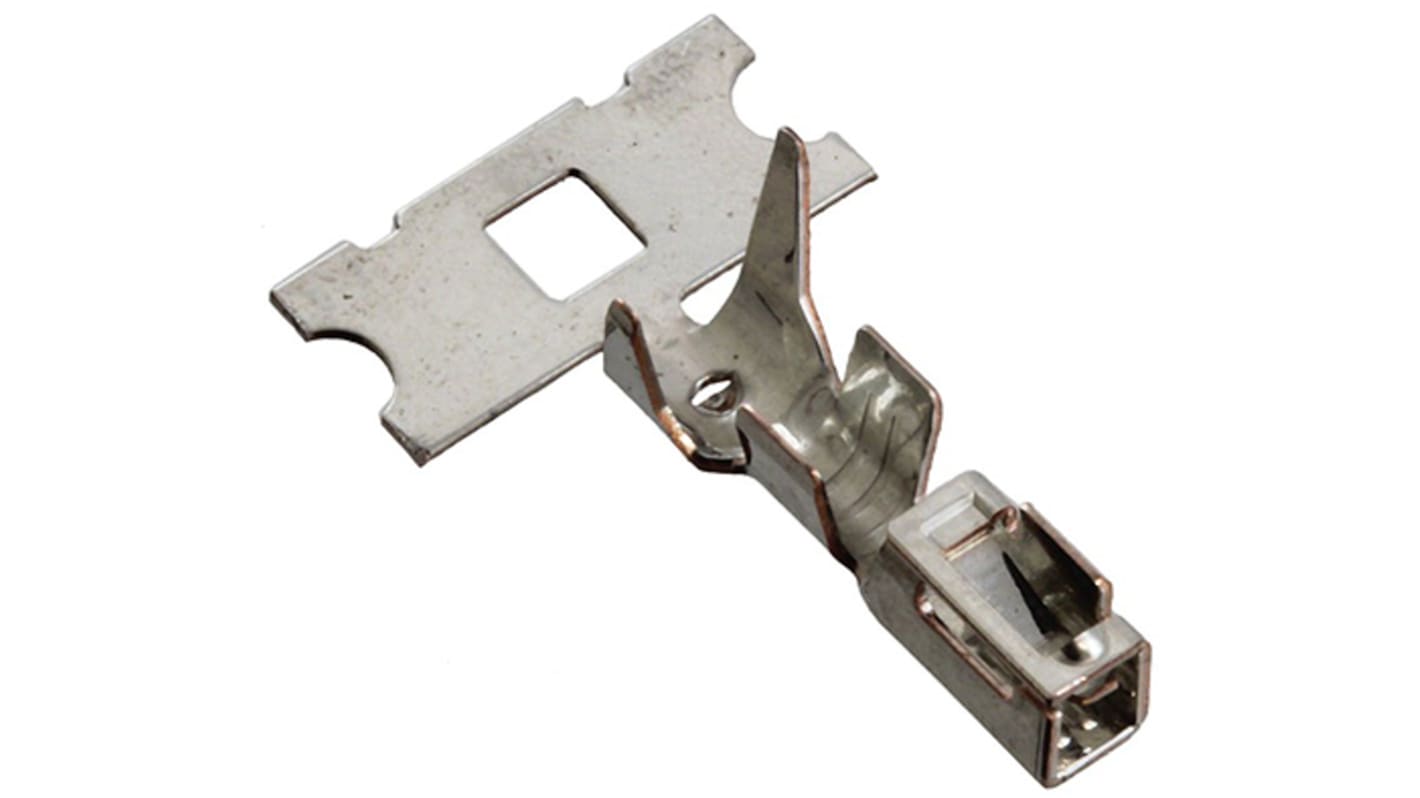

Hirose DF63 Series Female Crimp Terminal, 18AWG Min, 16AWG Max
- RS Stock No.:
- 111-3934
- Mfr. Part No.:
- DF63-1618SC
- Brand:
- Hirose
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 111-3934
- Mfr. Part No.:
- DF63-1618SC
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Gender | Female | |
| For Use With | DF63 and DF63R Connector Housings | |
| Series | DF63 | |
| Maximum Wire Size mm² | 1.3mm² | |
| Termination Method | Crimp | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 18AWG | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 16AWG | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Current | 10A | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Gender Female | ||
For Use With DF63 and DF63R Connector Housings | ||
Series DF63 | ||
Maximum Wire Size mm² 1.3mm² | ||
Termination Method Crimp | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 18AWG | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 16AWG | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Current 10A | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- MY
Hirose EnerBee DF63 Series Crimp Receptacle Contacts
EnerBee DF63 series crimp receptacle contacts for use in the EnerBee DF63 series crimp socket housings. These EnerBee DF63 crimp receptacles have a rugged design and feature a multi-point structure that ensures good contact wipe with high contact reliability and electrical performance.
Features and Benefits
• Rated for up to 15A
• Secure mating, clear tactile click
• Crimp contact incomplete insertion prevention
• Incorrect mating prevention
• Reverse mounting prevention to PCB
• Moulded lance
• Prevents short-circuiting
• Ideal for potting
• Solder crack prevention
• Secure mating, clear tactile click
• Crimp contact incomplete insertion prevention
• Incorrect mating prevention
• Reverse mounting prevention to PCB
• Moulded lance
• Prevents short-circuiting
• Ideal for potting
• Solder crack prevention
Standards
IEC 60695-2-11
Hirose EnerBee DF63 3.96mm Series
