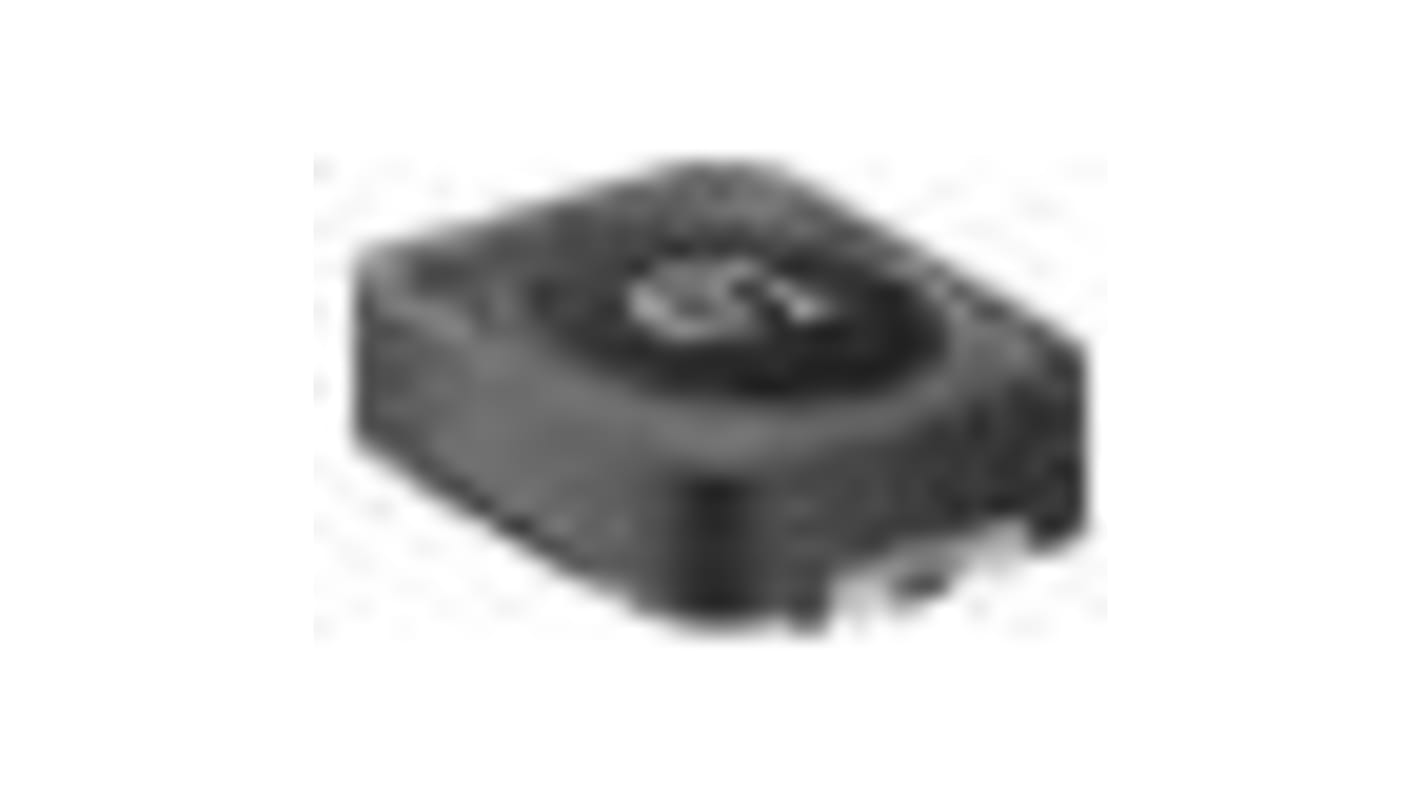

Bourns Shielded Coupled Inductor Ferrite Core , 33 μH
- RS Stock No.:
- 180-8856
- Mfr. Part No.:
- SRF1260-330M
- Brand:
- Bourns
Bulk discount available
Subtotal (1 reel of 400 units)*
£226.00
(exc. VAT)
£271.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 800 unit(s) shipping from 08 December 2025
- Plus 999,998,800 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 400 - 400 | £0.565 | £226.00 |
| 800 + | £0.51 | £204.00 |
*price indicative
- RS Stock No.:
- 180-8856
- Mfr. Part No.:
- SRF1260-330M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 33 μH | |
| DC Resistance | 61.8mΩ | |
| Core Material | Ferrite | |
| Tolerance | ±20% | |
| Current Rating | 3.28A | |
| Series | SRF1260 | |
| Package/Case | 1260 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Shielded | Yes | |
| Inductor Construction | Shielded | |
| Depth | 12.5mm | |
| Dimensions | 12.5 x 12.5 x 6mm | |
| Length | 12.5mm | |
| Height | 6mm | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 33 μH | ||
DC Resistance 61.8mΩ | ||
Core Material Ferrite | ||
Tolerance ±20% | ||
Current Rating 3.28A | ||
Series SRF1260 | ||
Package/Case 1260 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Shielded Yes | ||
Inductor Construction Shielded | ||
Depth 12.5mm | ||
Dimensions 12.5 x 12.5 x 6mm | ||
Length 12.5mm | ||
Height 6mm | ||
Multiple applications: parallel, series,
dual-inductor and transformer
Magnetically shielded, low radiation
Inductance range: 0.47 to 4000 μH
Rated current up to 17.6 A
Applications
SEPIC topology
Power supplies for:
Communication equipment
Notebooks, desktop computers,
servers
LCDs, flat panels, backlights
Camcorders, HDTVs
dual-inductor and transformer
Magnetically shielded, low radiation
Inductance range: 0.47 to 4000 μH
Rated current up to 17.6 A
Applications
SEPIC topology
Power supplies for:
Communication equipment
Notebooks, desktop computers,
servers
LCDs, flat panels, backlights
Camcorders, HDTVs
