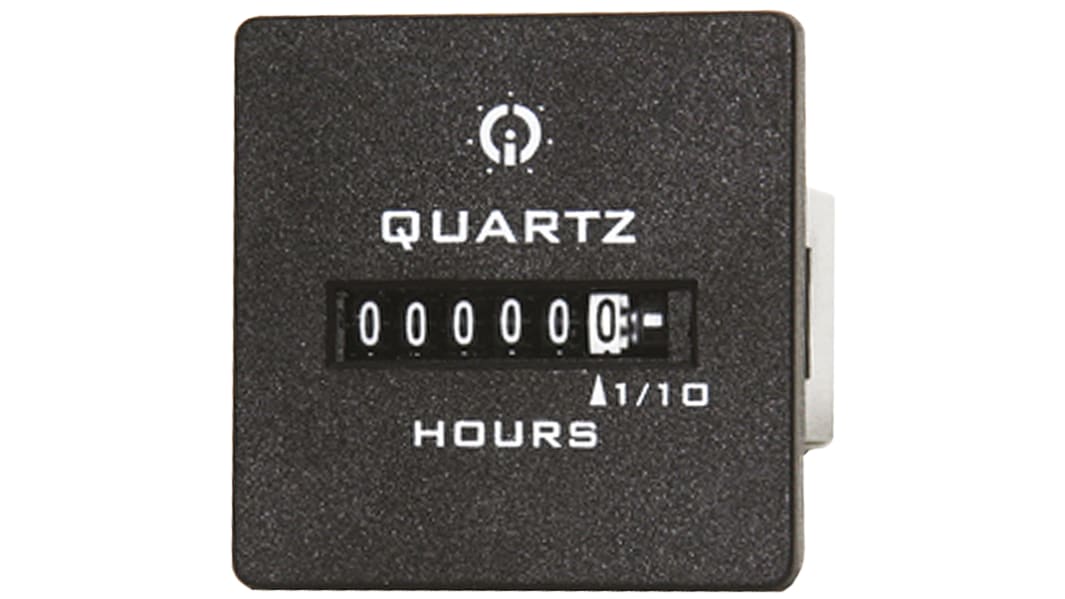

GIC Hour Meter, 6 Digit, 10 → 80 V dc
- RS Stock No.:
- 818-4585
- Mfr. Part No.:
- LD17F1
- Brand:
- GIC
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£15.09
(exc. VAT)
£18.11
(inc. VAT)
- RS Stock No.:
- 818-4585
- Mfr. Part No.:
- LD17F1
- Brand:
- GIC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | GIC | |
| Supply Voltage | 10 → 80 V dc | |
| Function | Hour Meter | |
| Input Type | Voltage | |
| Connection Type | Spade Terminal | |
| Reset Method | No Reset | |
| Number of Digits | 6 | |
| Mounting Type | Panel Mount | |
| Digit Height | 3.6 mm | |
| Display Range | 99999.9 | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Measurement Range | 99999.9 | |
| Weight | 47g | |
Select all | ||
|---|---|---|
Brand GIC | ||
Supply Voltage 10 → 80 V dc | ||
Function Hour Meter | ||
Input Type Voltage | ||
Connection Type Spade Terminal | ||
Reset Method No Reset | ||
Number of Digits 6 | ||
Mounting Type Panel Mount | ||
Digit Height 3.6 mm | ||
Display Range 99999.9 | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Measurement Range 99999.9 | ||
Weight 47g | ||
- COO (Country of Origin):
- IN
Hours Run Counter 48x48mm
HM36 series of hours run counters provides the user with a reliable, rugged meter for use within harsh environments. With the compact design of the unit this can be used a wide variety of applications
6 digit counter with automatic recycle to zero
High level of accuracy
Compact robust design provides shock and vibration protection
IP65 rated for protection from dust and moisture
Independent frequency for AC applications
Non resettable design
High level of accuracy
Compact robust design provides shock and vibration protection
IP65 rated for protection from dust and moisture
Independent frequency for AC applications
Non resettable design
Standards
CE, SAE & NEMA 4X
GIC Mechanical Hour Run Counter
