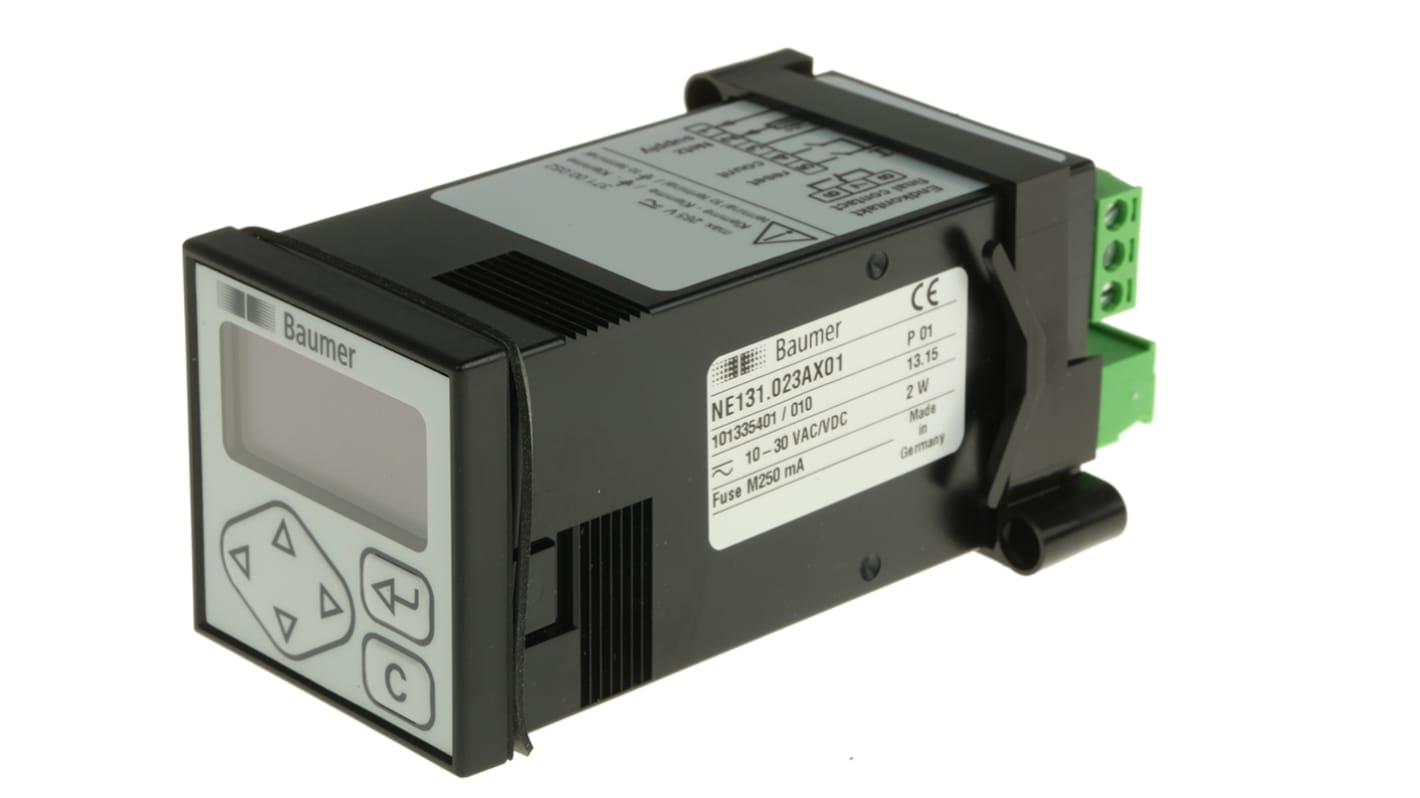

Baumer NE131 Counter, 6 Digit LCD, 25Hz, 10 → 30 V ac/dc
- RS Stock No.:
- 348-1525
- Mfr. Part No.:
- NE 131.023
- Brand:
- Baumer
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£327.14
(exc. VAT)
£392.57
(inc. VAT)
- RS Stock No.:
- 348-1525
- Mfr. Part No.:
- NE 131.023
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Supply Voltage | 10 → 30 V ac/dc | |
| Count Mode | Impulses | |
| Display Type | LCD | |
| Input Type | Voltage | |
| Function | Counter | |
| Connection Type | Screw | |
| Reset Method | Automatic, Electrical, Manual | |
| Number of Digits | 6 | |
| Mounting Type | Panel Mount | |
| Output / Interface | Relay | |
| Count Direction | Bi-Directional | |
| Digit Height | 7 mm | |
| Backlighting | Yes | |
| Maximum Count Frequency | 25Hz | |
| Display Range | 0.0001 → 9999.99 | |
| Maximum Operating Temperature | +50°C | |
| Series | NE131 | |
| Weight | 140g | |
| Measurement Range | 0.0001 → 9999.99 | |
| Minimum Operating Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Supply Voltage 10 → 30 V ac/dc | ||
Count Mode Impulses | ||
Display Type LCD | ||
Input Type Voltage | ||
Function Counter | ||
Connection Type Screw | ||
Reset Method Automatic, Electrical, Manual | ||
Number of Digits 6 | ||
Mounting Type Panel Mount | ||
Output / Interface Relay | ||
Count Direction Bi-Directional | ||
Digit Height 7 mm | ||
Backlighting Yes | ||
Maximum Count Frequency 25Hz | ||
Display Range 0.0001 → 9999.99 | ||
Maximum Operating Temperature +50°C | ||
Series NE131 | ||
Weight 140g | ||
Measurement Range 0.0001 → 9999.99 | ||
Minimum Operating Temperature 0°C | ||
- COO (Country of Origin):
- DE
Counters / timers with one or two presets, NE131 series
Ideal for replacing electro-mechanical counters.
Counter and zero-reset inputs at 12 → 260 Vac / Vdc
Dual 6-digit display for setpoint and current value.
Works as a pulse counter or time counter with four resolutions.
Unpluggable connector with screw terminals and mounting bracket.
Counter and zero-reset inputs at 12 → 260 Vac / Vdc
Dual 6-digit display for setpoint and current value.
Works as a pulse counter or time counter with four resolutions.
Unpluggable connector with screw terminals and mounting bracket.
