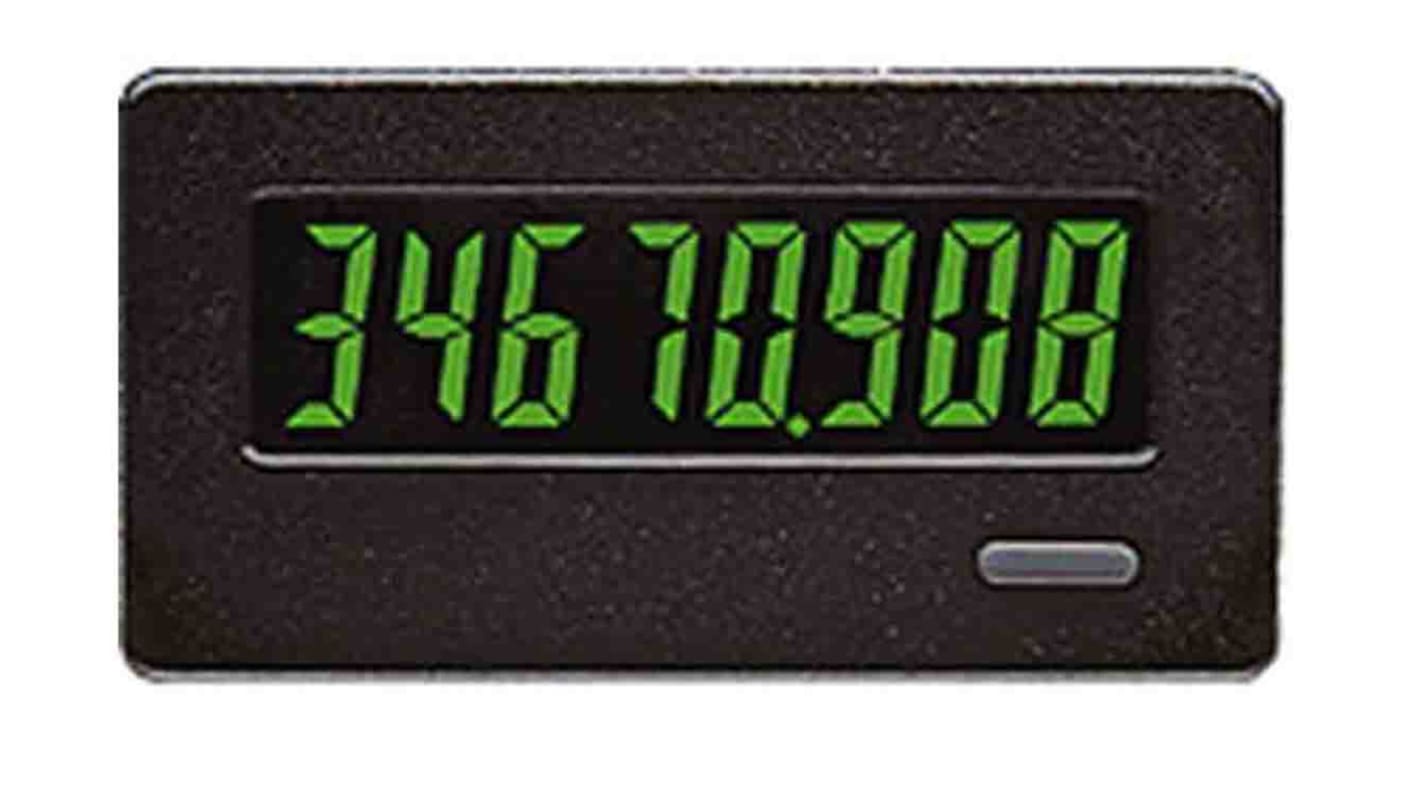

Red Lion CUB4L8 Counter, 8 Digit LCD, 9 → 28 V dc
- RS Stock No.:
- 195-9136
- Mfr. Part No.:
- CUB4L810
- Brand:
- Red Lion
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£158.73
(exc. VAT)
£190.48
(inc. VAT)
- RS Stock No.:
- 195-9136
- Mfr. Part No.:
- CUB4L810
- Brand:
- Red Lion
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Red Lion | |
| Supply Voltage | 9 → 28 V dc | |
| Count Mode | Seconds | |
| Display Type | LCD | |
| Function | Counter | |
| Input Type | Voltage | |
| Connection Type | Screw Clamp Terminal | |
| Reset Method | Automatic | |
| Number of Digits | 8 | |
| Mounting Type | Panel Mount | |
| Output / Interface | Voltage | |
| Count Direction | Up | |
| Digit Height | 11.7 mm | |
| Backlighting | Yes | |
| Cutout Size | 68 x 33 mm | |
| Cutout Height | 33mm | |
| Series | CUB4L8 | |
| Meter Type | Electronic | |
| Maximum Operating Temperature | +60°C | |
| Depth | 34.5mm | |
| Minimum Operating Temperature | 0°C | |
| Cutout Width | 68mm | |
| Weight | 85g | |
| Select all | ||
|---|---|---|
Brand Red Lion | ||
Supply Voltage 9 → 28 V dc | ||
Count Mode Seconds | ||
Display Type LCD | ||
Function Counter | ||
Input Type Voltage | ||
Connection Type Screw Clamp Terminal | ||
Reset Method Automatic | ||
Number of Digits 8 | ||
Mounting Type Panel Mount | ||
Output / Interface Voltage | ||
Count Direction Up | ||
Digit Height 11.7 mm | ||
Backlighting Yes | ||
Cutout Size 68 x 33 mm | ||
Cutout Height 33mm | ||
Series CUB4L8 | ||
Meter Type Electronic | ||
Maximum Operating Temperature +60°C | ||
Depth 34.5mm | ||
Minimum Operating Temperature 0°C | ||
Cutout Width 68mm | ||
Weight 85g | ||
- COO (Country of Origin):
- US
39 mm x 75 mm
8 Digit, 0.46" (11.7 mm) LCD
Yellow/Green LED Backlight
3 V Lithium Battery (9 - 28 VDC Required for Backlit Models)
Front Panel, Remote Reset
5 KHz
8 Digit, 0.46" (11.7 mm) LCD
Yellow/Green LED Backlight
3 V Lithium Battery (9 - 28 VDC Required for Backlit Models)
Front Panel, Remote Reset
5 KHz
