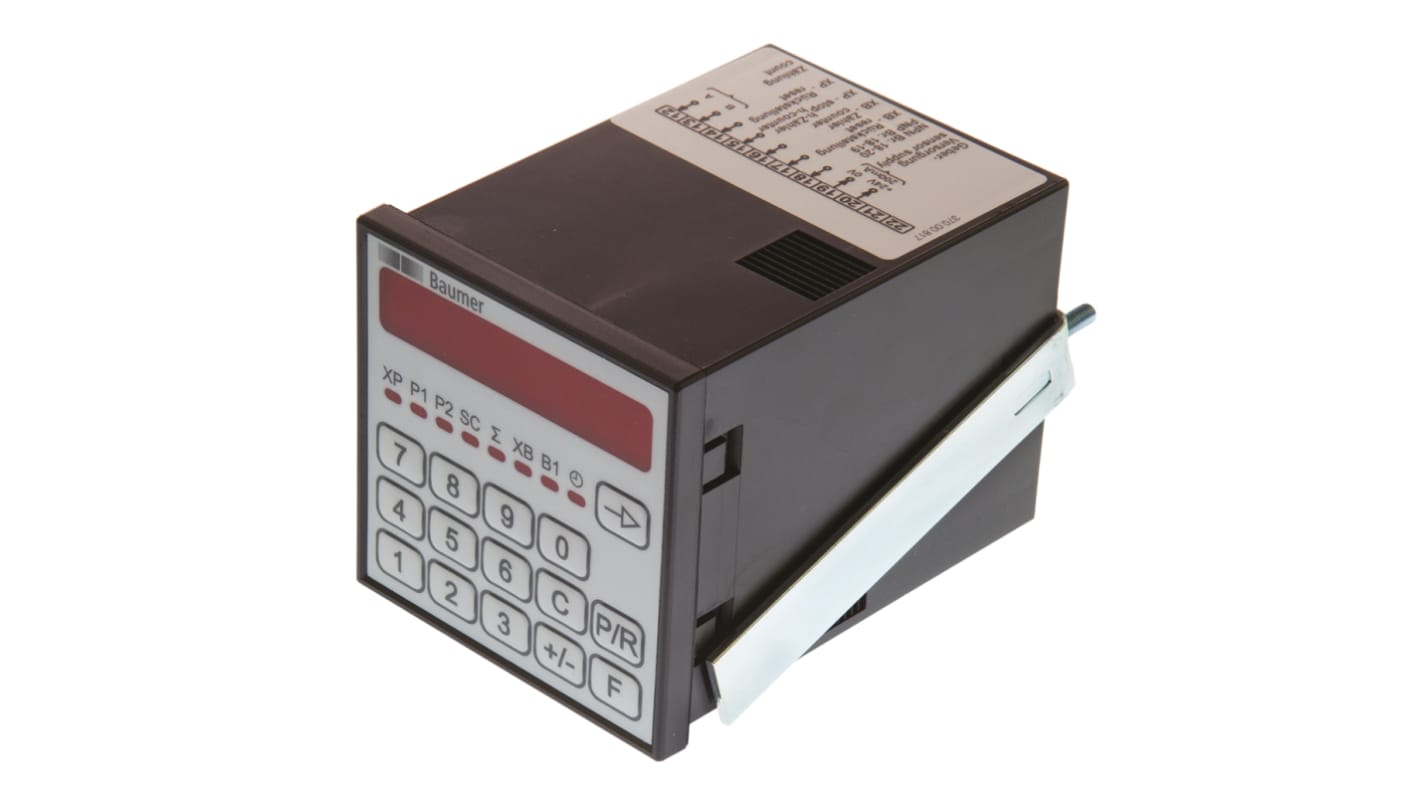

Baumer NE212 Counter, 8 Digit, 10kHz, 85 → 265 V ac
- RS Stock No.:
- 163-7158
- Mfr. Part No.:
- NE212.012AXA2
- Brand:
- Baumer
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£30.20
(exc. VAT)
£36.24
(inc. VAT)
- RS Stock No.:
- 163-7158
- Mfr. Part No.:
- NE212.012AXA2
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Supply Voltage | 85 → 265 V ac | |
| Count Mode | Hours | |
| Display Type | LED | |
| Input Type | Logic | |
| Connection Type | Screw | |
| Reset Method | Automatic, Electrical, Manual | |
| Number of Digits | 8 | |
| Mounting Type | Panel Mount | |
| Output / Interface | Relay | |
| Count Direction | Bi-Directional | |
| Digit Height | 7.6 mm | |
| Maximum Count Frequency | 10kHz | |
| Display Range | 0.0001 to 9999.99 | |
| Weight | 320g | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | 0°C | |
| Measurement Range | 0.0001 → 9999.99 | |
| Series | NE212 | |
| Select all | ||
|---|---|---|
Brand Baumer | ||
Supply Voltage 85 → 265 V ac | ||
Count Mode Hours | ||
Display Type LED | ||
Input Type Logic | ||
Connection Type Screw | ||
Reset Method Automatic, Electrical, Manual | ||
Number of Digits 8 | ||
Mounting Type Panel Mount | ||
Output / Interface Relay | ||
Count Direction Bi-Directional | ||
Digit Height 7.6 mm | ||
Maximum Count Frequency 10kHz | ||
Display Range 0.0001 to 9999.99 | ||
Weight 320g | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature 0°C | ||
Measurement Range 0.0001 → 9999.99 | ||
Series NE212 | ||
- COO (Country of Origin):
- DE
Baumer Digital Counter
The Baumer NE212 series digital counter is a two preset, programmable and panel mounted device. This counter has a logic input and relay output. It also has an 8-digit LED display and the scaling factor ranges from 0.001 and 99.999. This counter supplies voltage rating ranges between 85VAC and 265VAC. It supports a main preset, parallel alignment, trailing preset, step preset operating modes. It can be used as a batch counter, tachometer, totalizer and hour counter. This counter has a maximum count frequency of 10KHz.
Features and Benefits
Floating preliminary" and "permanent comparison of 2 preset" functions
Many programmable counter modes such as adding, subtracting, bi-directional, sum or difference
Pulse variation can be programmed from 0.0001 to 9999.99
Start count and scaling factor programmable
Connection: Incremental encoder or digital sensors
Plug-in screw terminal connection
Front Dimension 72mm x 72mm
Operating temperature ranges between 0°C and 50°C
Many programmable counter modes such as adding, subtracting, bi-directional, sum or difference
Pulse variation can be programmed from 0.0001 to 9999.99
Start count and scaling factor programmable
Connection: Incremental encoder or digital sensors
Plug-in screw terminal connection
Front Dimension 72mm x 72mm
Operating temperature ranges between 0°C and 50°C
Applications
Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines
Control and monitoring systems
Manufacturing assembly lines
Certifications
UL approved
E63076
DIN EN 61000-6-4
DIN EN 61000-6-2
E63076
DIN EN 61000-6-4
DIN EN 61000-6-2
