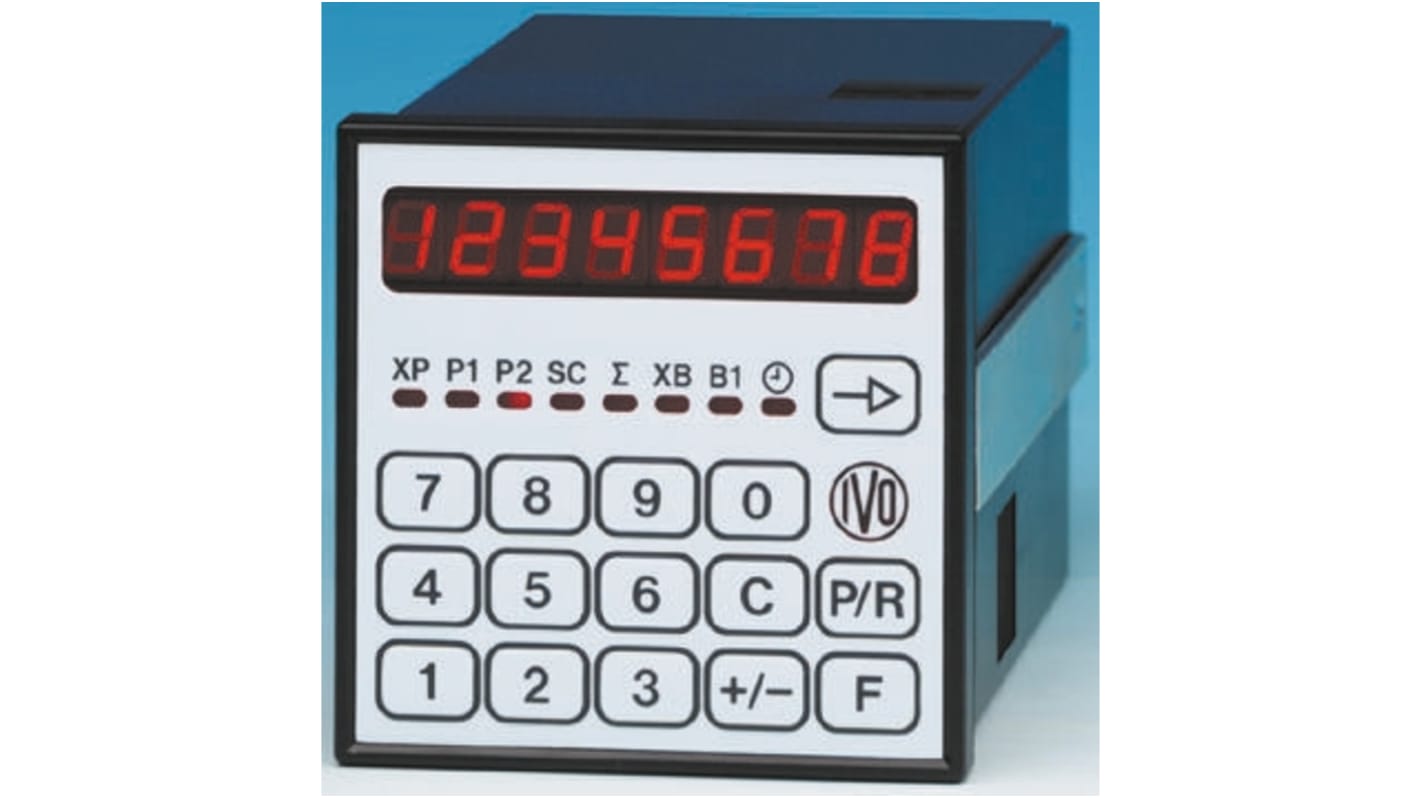

Baumer NE212 Counter, 8 Digit LED, 60Hz, 24 V ac, 48 V ac
- RS Stock No.:
- 163-5865
- Mfr. Part No.:
- NE212.011A01
- Brand:
- Baumer
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 163-5865
- Mfr. Part No.:
- NE212.011A01
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Supply Voltage | 24 V ac, 48 V ac | |
| Display Type | LED | |
| Input Type | Logic | |
| Function | Counter | |
| Connection Type | Screw | |
| Number of Digits | 8 | |
| Mounting Type | Panel Mount | |
| Output / Interface | Relay | |
| Count Direction | Bi-Directional | |
| Digit Height | 7.6 mm | |
| Maximum Count Frequency | 60Hz | |
| Display Range | 0.0001 → 99 9999 | |
| Weight | 450g | |
| Maximum Operating Temperature | +50°C | |
| Measurement Range | 0.0001 → 99 9999 | |
| Minimum Operating Temperature | 0°C | |
| Series | NE212 | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Supply Voltage 24 V ac, 48 V ac | ||
Display Type LED | ||
Input Type Logic | ||
Function Counter | ||
Connection Type Screw | ||
Number of Digits 8 | ||
Mounting Type Panel Mount | ||
Output / Interface Relay | ||
Count Direction Bi-Directional | ||
Digit Height 7.6 mm | ||
Maximum Count Frequency 60Hz | ||
Display Range 0.0001 → 99 9999 | ||
Weight 450g | ||
Maximum Operating Temperature +50°C | ||
Measurement Range 0.0001 → 99 9999 | ||
Minimum Operating Temperature 0°C | ||
Series NE212 | ||
- COO (Country of Origin):
- DE
6-digit LED display preset counters - NE 212
Very easy to use single counters thanks to the decimal keyboard and the set of LED indicators.
Main counter with 1 or 2 presets over 6 digits with sign.
General total over 8 digits.
Integrated auxiliary cycle counter (or tachymeter) and time counter.
Impulse scaling factor.
"Floating preliminary" and "permanent comparison of 2 preset" functions.
Many programmable counter modes: adding, subtracting, bi-directional, sum or difference, etc.
Main counter with 1 or 2 presets over 6 digits with sign.
General total over 8 digits.
Integrated auxiliary cycle counter (or tachymeter) and time counter.
Impulse scaling factor.
"Floating preliminary" and "permanent comparison of 2 preset" functions.
Many programmable counter modes: adding, subtracting, bi-directional, sum or difference, etc.
