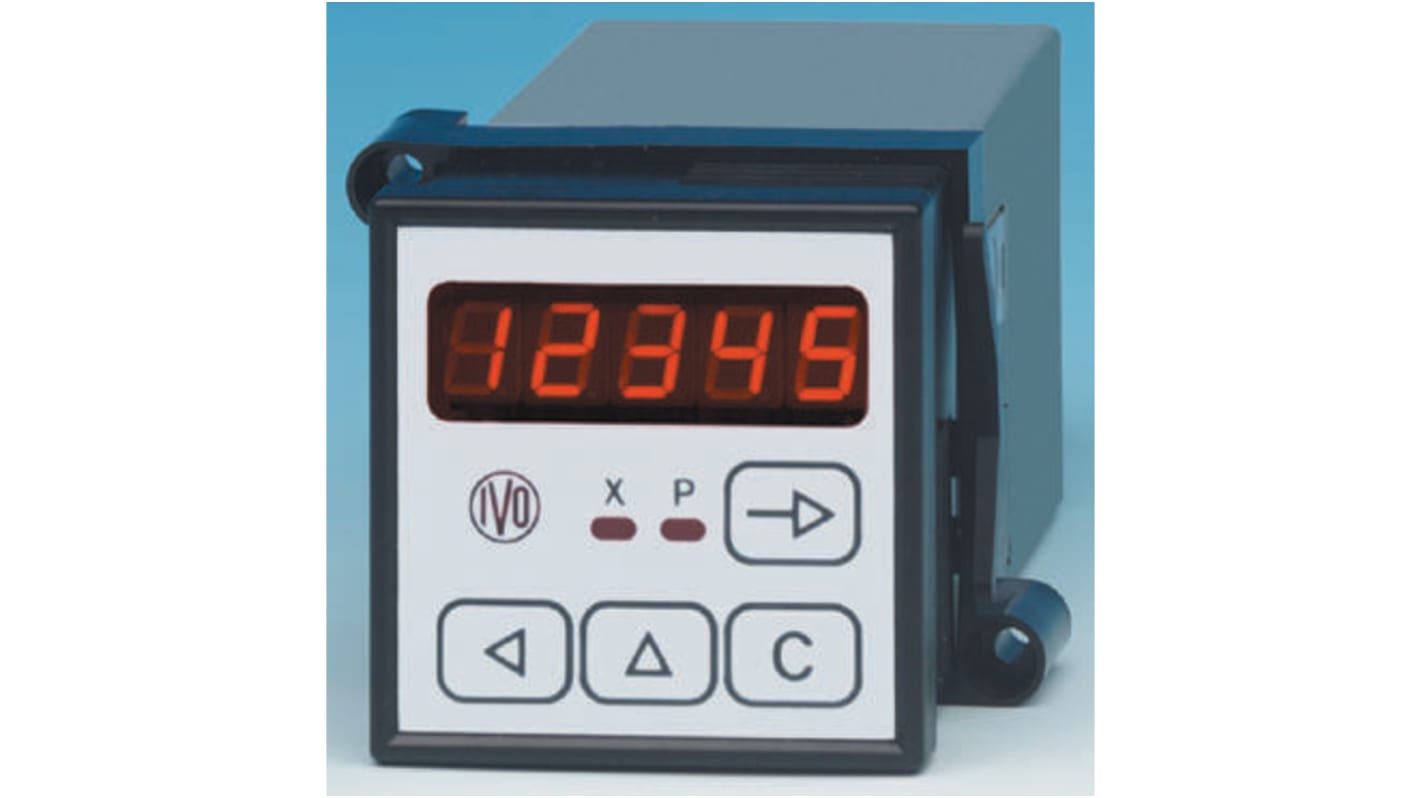

Baumer NE210 Digital Counter, 5 Digit, 10kHz, 22 → 48 V ac
- RS Stock No.:
- 163-5815
- Mfr. Part No.:
- NE210.011AXA1
- Brand:
- Baumer
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 163-5815
- Mfr. Part No.:
- NE210.011AXA1
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Supply Voltage | 22 → 48 V ac | |
| Display Type | LED | |
| Input Type | Logic | |
| Connection Type | Screw | |
| Reset Method | Automatic, Electrical, Manual | |
| Number of Digits | 5 | |
| Mounting Type | Panel Mount | |
| Output / Interface | Relay | |
| Count Direction | Bi-Directional | |
| Digit Height | 7.6 mm | |
| Maximum Count Frequency | 10kHz | |
| Display Range | 0.001 → 99.999 | |
| Minimum Operating Temperature | 0°C | |
| Series | NE210 | |
| Maximum Operating Temperature | +50°C | |
| Weight | 150g | |
| Measurement Range | 0.001 → 99.999 | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Supply Voltage 22 → 48 V ac | ||
Display Type LED | ||
Input Type Logic | ||
Connection Type Screw | ||
Reset Method Automatic, Electrical, Manual | ||
Number of Digits 5 | ||
Mounting Type Panel Mount | ||
Output / Interface Relay | ||
Count Direction Bi-Directional | ||
Digit Height 7.6 mm | ||
Maximum Count Frequency 10kHz | ||
Display Range 0.001 → 99.999 | ||
Minimum Operating Temperature 0°C | ||
Series NE210 | ||
Maximum Operating Temperature +50°C | ||
Weight 150g | ||
Measurement Range 0.001 → 99.999 | ||
- COO (Country of Origin):
- DE
5 Digit Single Preset
5-digit LED display
Operating mode, start count, scaling factor programmable
SPCO relay output
Time meter with four time ranges
Time relay with operation and release delay
Pogrammable as a time counter
Plug-in screw terminal connection
Operating mode, start count, scaling factor programmable
SPCO relay output
Time meter with four time ranges
Time relay with operation and release delay
Pogrammable as a time counter
Plug-in screw terminal connection
Baumer Digital Counter
The Baumer NE210 series digital counter is a single preset, programmable and panel mounted device. This counter has a logic input and one relay output. It also has a 5-digit LED display and the scaling factor ranges from 0.001 and 99.999. This counter supplies a voltage rating ranges between 24VAC and 48VAC. It has various operating modes such as main preset and meter/time relay. This counter has a maximum count frequency of 10KHz.
Features and Benefits
• Operating mode, start count, scaling factor programmable
• Connection: Incremental encoder or digital sensors
• Time meter with four-time ranges
• Time relay with operation and release delay
• Plug-in screw terminal connection
• Front Dimension 48mm x 48mm
• Operating temperature ranges between 0°C and 50°C
• Connection: Incremental encoder or digital sensors
• Time meter with four-time ranges
• Time relay with operation and release delay
• Plug-in screw terminal connection
• Front Dimension 48mm x 48mm
• Operating temperature ranges between 0°C and 50°C
Applications
•
Industrial counting applications
• Control and monitoring systems
• Manufacturing assembly line
Industrial counting applications
• Control and monitoring systems
• Manufacturing assembly line
Certifications
•
UL approved
• E63076
• DIN EN 61010-1
• IP65 rated
UL approved
• E63076
• DIN EN 61010-1
• IP65 rated
