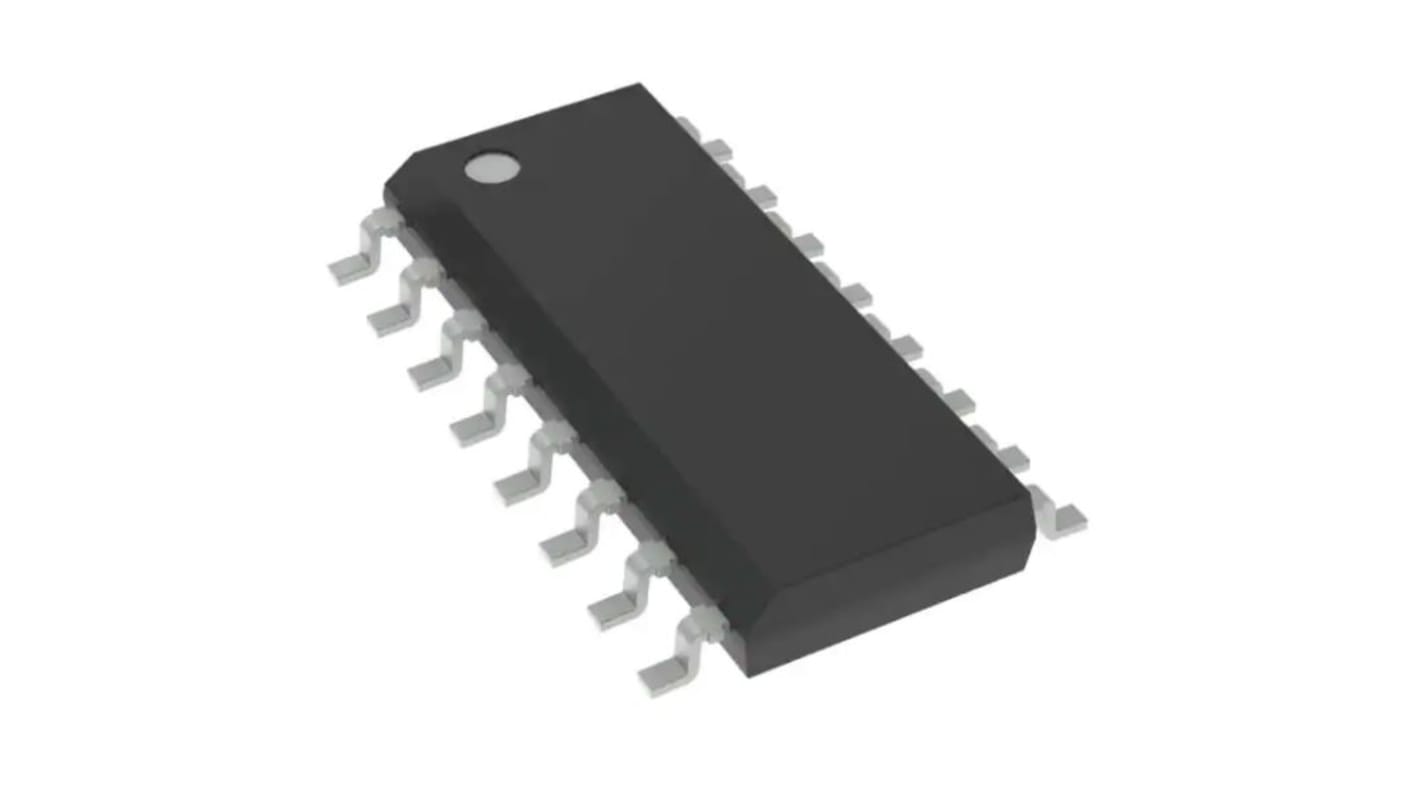

STMicroelectronics STPIC6C595MTR Surface Mount Shift Register DMOS SO-16

View all Counter ICs
Bulk discount available

Subtotal (1 pack of 5 units)*

£7.31

(exc. VAT)

£8.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,060 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 5£1.462£7.31
10 +£1.388£6.94

*price indicative

Packaging Options:
RS Stock No.:
239-6348
Mfr. Part No.:
STPIC6C595MTR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Package Type

SO-16

Logic Function

Shift Register

Logic Family

DMOS

Mounting Type

Surface Mount

The STMicroelectronics Monolithic, medium voltage, low current power 8-bit shift register is designed for use in systems that require relatively moderate load power. The device contains a built-in voltage clamp on the outputs for inductive transient protection and an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.

Low Rdson of 4 Ω typ
30 mJ avalanche energy
Eight 100 mA DMOS outputs
250 mA current limit capability
33 V output clamp voltage
Device are cascadable
Low power consumption
