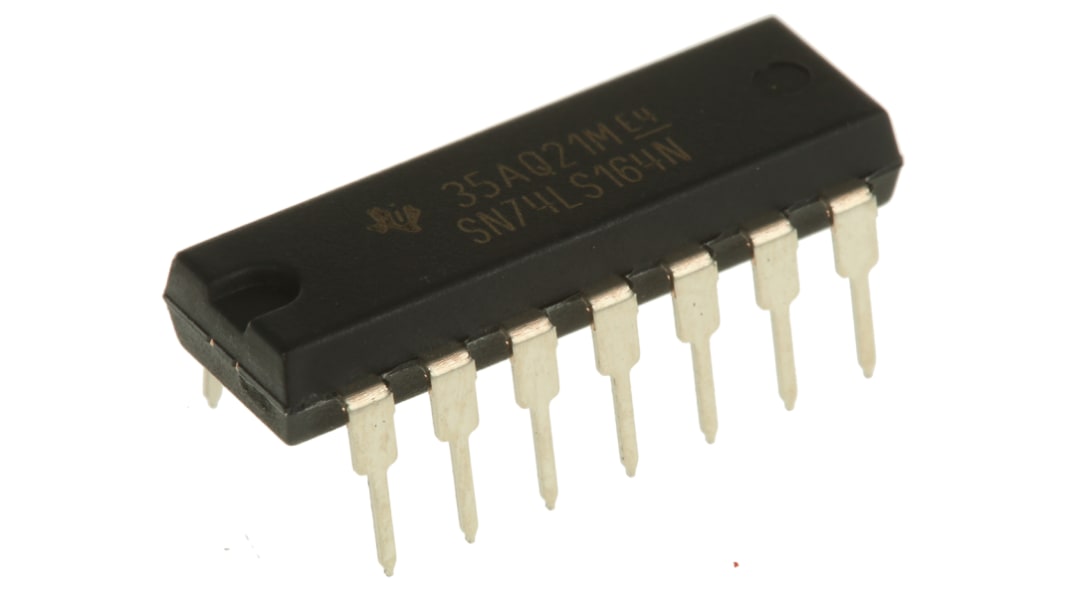

Texas Instruments SN74LS164N 8-stage Through Hole Counter LS, 14-Pin PDIP
- RS Stock No.:
- 162-4293
- Mfr. Part No.:
- SN74LS164N
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 tube of 25 units)*
£11.525
(exc. VAT)
£13.825
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 775 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
25 - 225 | £0.461 | £11.53 |
250 - 350 | £0.41 | £10.25 |
375 - 475 | £0.399 | £9.98 |
500 - 600 | £0.389 | £9.73 |
625 + | £0.379 | £9.48 |
*price indicative
- RS Stock No.:
- 162-4293
- Mfr. Part No.:
- SN74LS164N
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Package Type | PDIP | |
Logic Function | Shift Register | |
Number of Stages | 8 | |
Logic Family | LS | |
Mounting Type | Through Hole | |
Operation Mode | Serial to Parallel | |
Number of Elements | 1 | |
Pin Count | 14 | |
Minimum Operating Supply Voltage | 4.75 V | |
Maximum Operating Supply Voltage | 5.25 V | |
Dimensions | 19.3 x 6.35 x 4.57mm | |
Direction Type | Uni-Directional | |
Reset Type | Asynchronous | |
Minimum Operating Temperature | 0 °C | |
Triggering Type | Positive Edge | |
Maximum Operating Temperature | 70 °C | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Package Type PDIP | ||
Logic Function Shift Register | ||
Number of Stages 8 | ||
Logic Family LS | ||
Mounting Type Through Hole | ||
Operation Mode Serial to Parallel | ||
Number of Elements 1 | ||
Pin Count 14 | ||
Minimum Operating Supply Voltage 4.75 V | ||
Maximum Operating Supply Voltage 5.25 V | ||
Dimensions 19.3 x 6.35 x 4.57mm | ||
Direction Type Uni-Directional | ||
Reset Type Asynchronous | ||
Minimum Operating Temperature 0 °C | ||
Triggering Type Positive Edge | ||
Maximum Operating Temperature 70 °C | ||
74LS Family Counters & Shift Registers, Texas Instruments
Texas Instruments range of Counters and Shift Registers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.
74LS Family
