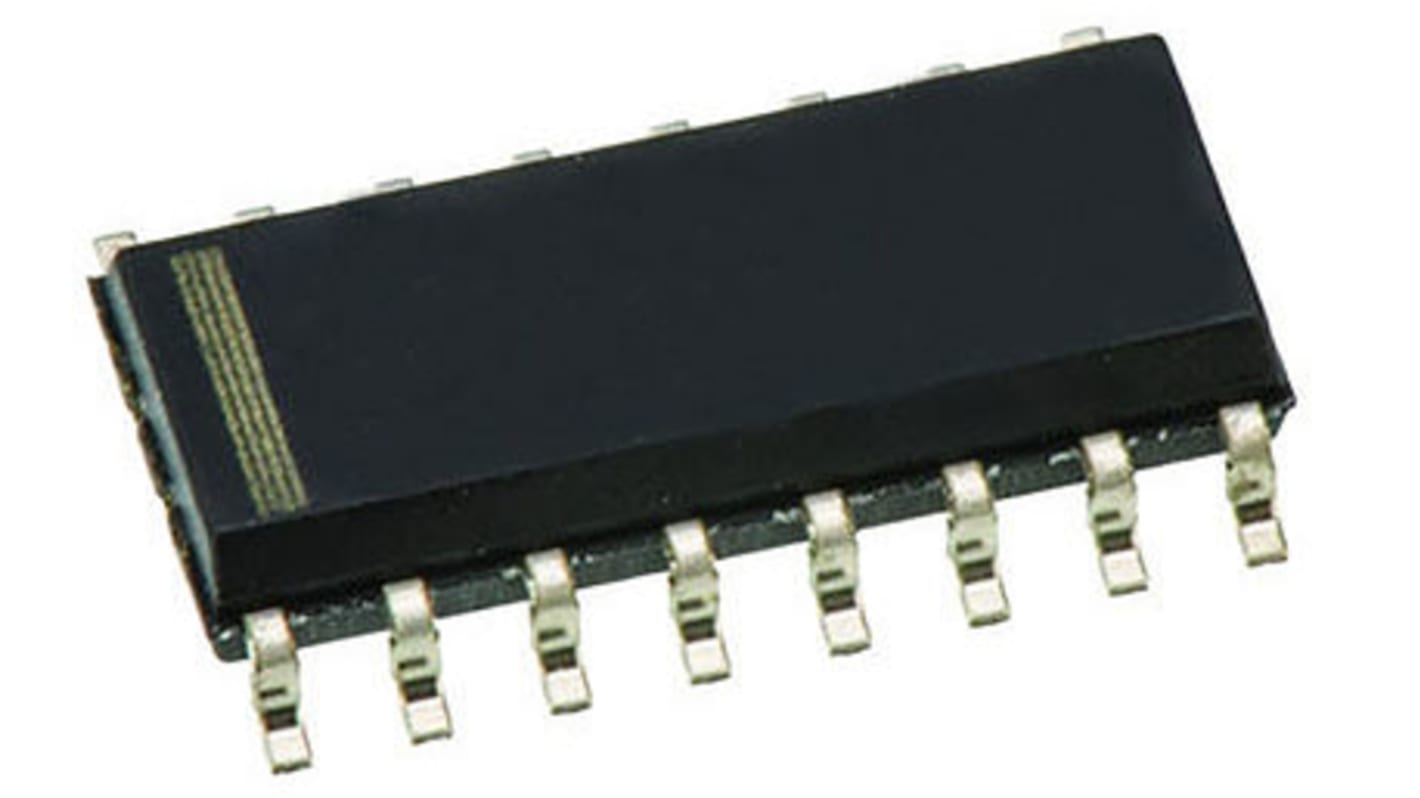

Nexperia 74HCT4060D,652 14-stage Surface Mount Binary Counter 74HCT, 16-Pin SOIC
- RS Stock No.:
- 146-0381
- Mfr. Part No.:
- 74HCT4060D,652
- Brand:
- Nexperia
Available to back order for despatch 05/05/2025
Added
Price Each (In a Tube of 50)
£0.658
(exc. VAT)
£0.79
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 + | £0.658 | £32.90 |
| *price indicative | ||
- RS Stock No.:
- 146-0381
- Mfr. Part No.:
- 74HCT4060D,652
- Brand:
- Nexperia
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
74HCT Family Counters & Shift Registers, Nexperia
High-Speed CMOS Logic
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
Operating Voltage 4.5 to 5.5 V
Compatibility: Input TTL, Output CMOS
74HCT Family
Specifications
Attribute | Value |
|---|---|
| Package Type | SOIC |
| Logic Function | Counter |
| Number of Stages | 14 |
| Logic Family | 74HCT |
| Mounting Type | Surface Mount |
| Counter Type | Binary |
| Operation Mode | Up Counter |
| Number of Elements | 1 |
| Pin Count | 16 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Dimensions | 10 x 4 x 1.45mm |
| Direction Type | Uni-Directional |
| Reset Type | Asynchronous |
| Maximum Operating Temperature | 125 °C |
| Triggering Type | Negative Edge |
| Minimum Operating Temperature | -40 °C |
- RS Stock No.:
- 146-0381
- Mfr. Part No.:
- 74HCT4060D,652
- Brand:
- Nexperia
