Nexperia HEF4060BT,652 14 Surface Binary Counter 4000 16 SOIC
- RS Stock No.:
- 103-8392
- Mfr. Part No.:
- HEF4060BT,652
- Brand:
- Nexperia

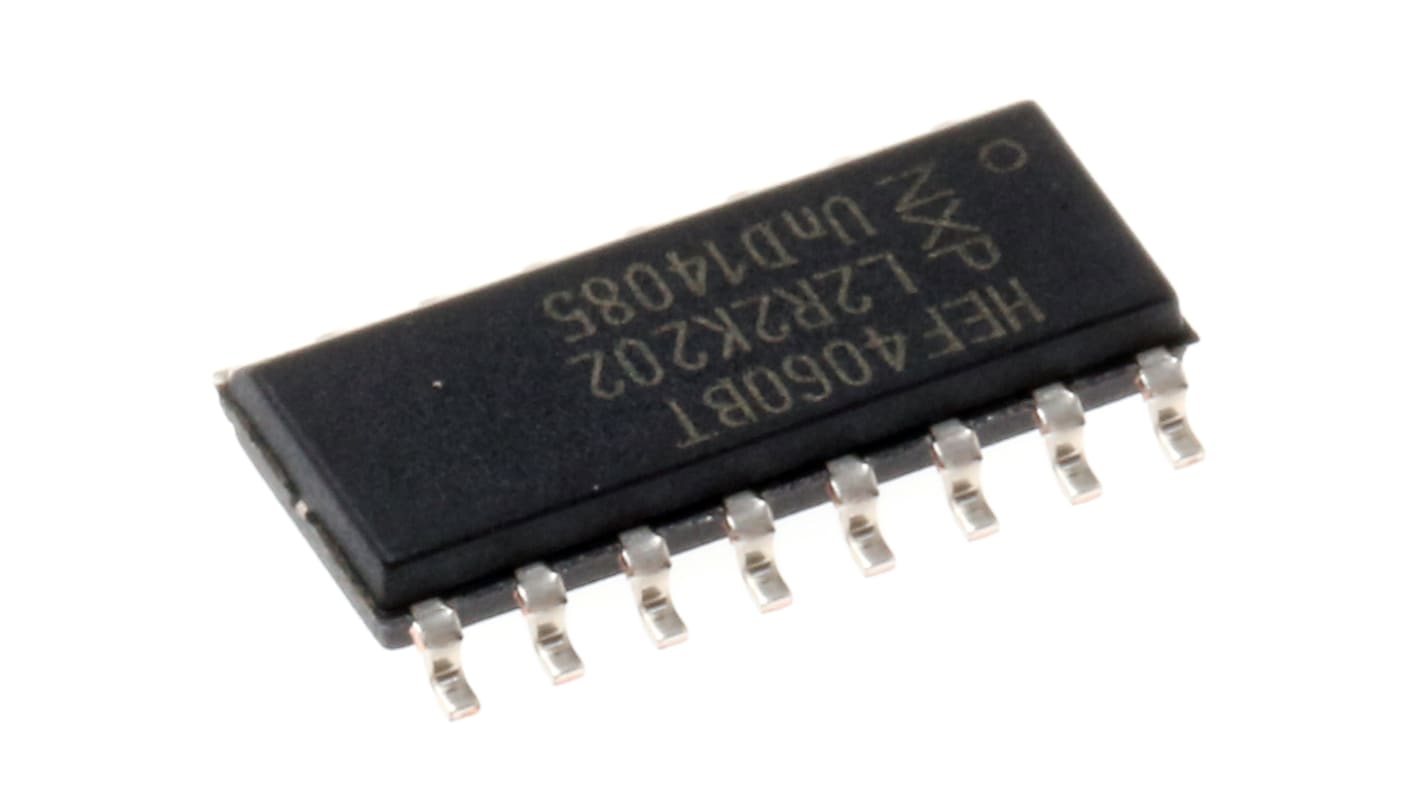

Image representative of range
Stock information currently inaccessible
- RS Stock No.:
- 103-8392
- Mfr. Part No.:
- HEF4060BT,652
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Package Type | SOIC | |
| Product Type | Counter | |
| Logic Function | Divider, Counter | |
| Number of Stages | 14 | |
| Logic Family | 4000 | |
| Mount Type | Surface | |
| Counter Type | Binary | |
| Number of Elements | 1 | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 15V | |
| Series | HEF4060B | |
| Length | 10mm | |
| Standards/Approvals | No | |
| Maximum Operating Temperature | 85°C | |
| Direction Type | Uni-Directional | |
| Reset Type | Asynchronous | |
| Minimum Operating Temperature | -40°C | |
| Height | 1.75mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Package Type SOIC | ||
Product Type Counter | ||
Logic Function Divider, Counter | ||
Number of Stages 14 | ||
Logic Family 4000 | ||
Mount Type Surface | ||
Counter Type Binary | ||
Number of Elements 1 | ||
Pin Count 16 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 15V | ||
Series HEF4060B | ||
Length 10mm | ||
Standards/Approvals No | ||
Maximum Operating Temperature 85°C | ||
Direction Type Uni-Directional | ||
Reset Type Asynchronous | ||
Minimum Operating Temperature -40°C | ||
Height 1.75mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
4000 Series Counters & Shift Registers, Nexperia
4000 CMOS Logic Family, Nexperia
CMOS Family devices
Wide operating voltage range: 3 to 18V
