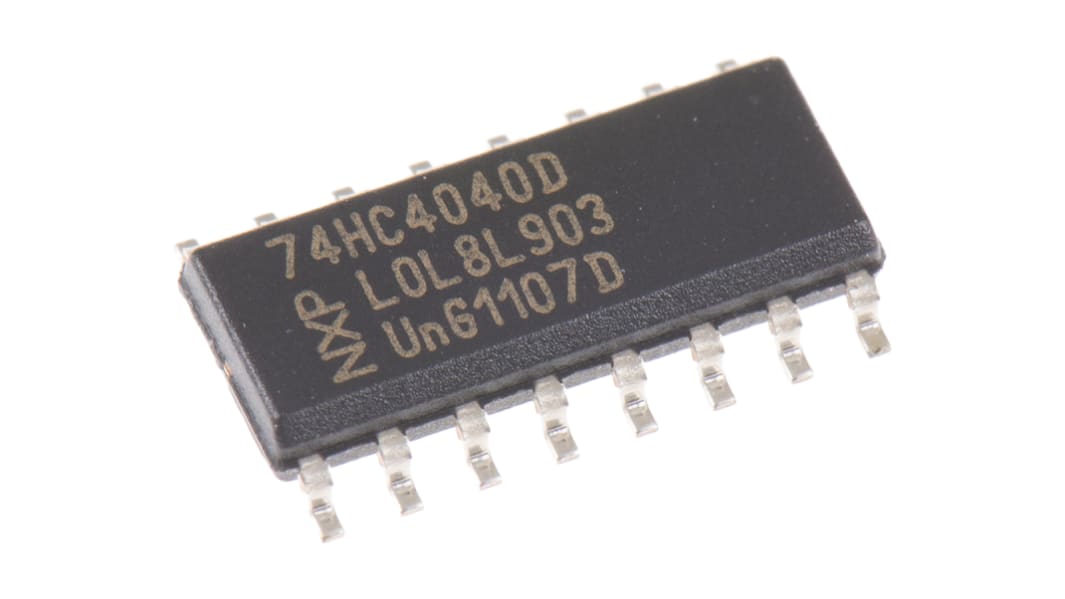

Nexperia 74HC4040D,652 12-stage Surface Mount Binary Counter HC, 16-Pin SOIC
- RS Stock No.:
- 113-0629P
- Mfr. Part No.:
- 74HC4040D,652
- Brand:
- Nexperia
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 113-0629P
- Mfr. Part No.:
- 74HC4040D,652
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Package Type | SOIC | |
Logic Function | Counter | |
Number of Stages | 12 | |
Logic Family | HC | |
Mounting Type | Surface Mount | |
Counter Type | Binary | |
Operation Mode | Up Counter | |
Number of Elements | 1 | |
Pin Count | 16 | |
Minimum Operating Supply Voltage | 2 V | |
Maximum Operating Supply Voltage | 6 V | |
Dimensions | 10 x 4 x 1.45mm | |
Direction Type | Uni-Directional | |
Maximum Operating Temperature | 125 °C | |
Reset Type | Asynchronous | |
Triggering Type | Negative Edge | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Package Type SOIC | ||
Logic Function Counter | ||
Number of Stages 12 | ||
Logic Family HC | ||
Mounting Type Surface Mount | ||
Counter Type Binary | ||
Operation Mode Up Counter | ||
Number of Elements 1 | ||
Pin Count 16 | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Supply Voltage 6 V | ||
Dimensions 10 x 4 x 1.45mm | ||
Direction Type Uni-Directional | ||
Maximum Operating Temperature 125 °C | ||
Reset Type Asynchronous | ||
Triggering Type Negative Edge | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- TH
74HC Family Counters & Shift Registers, Nexperia
A range of 74HC Family CMOS Logic Counters and Shift Registers from NXP. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
