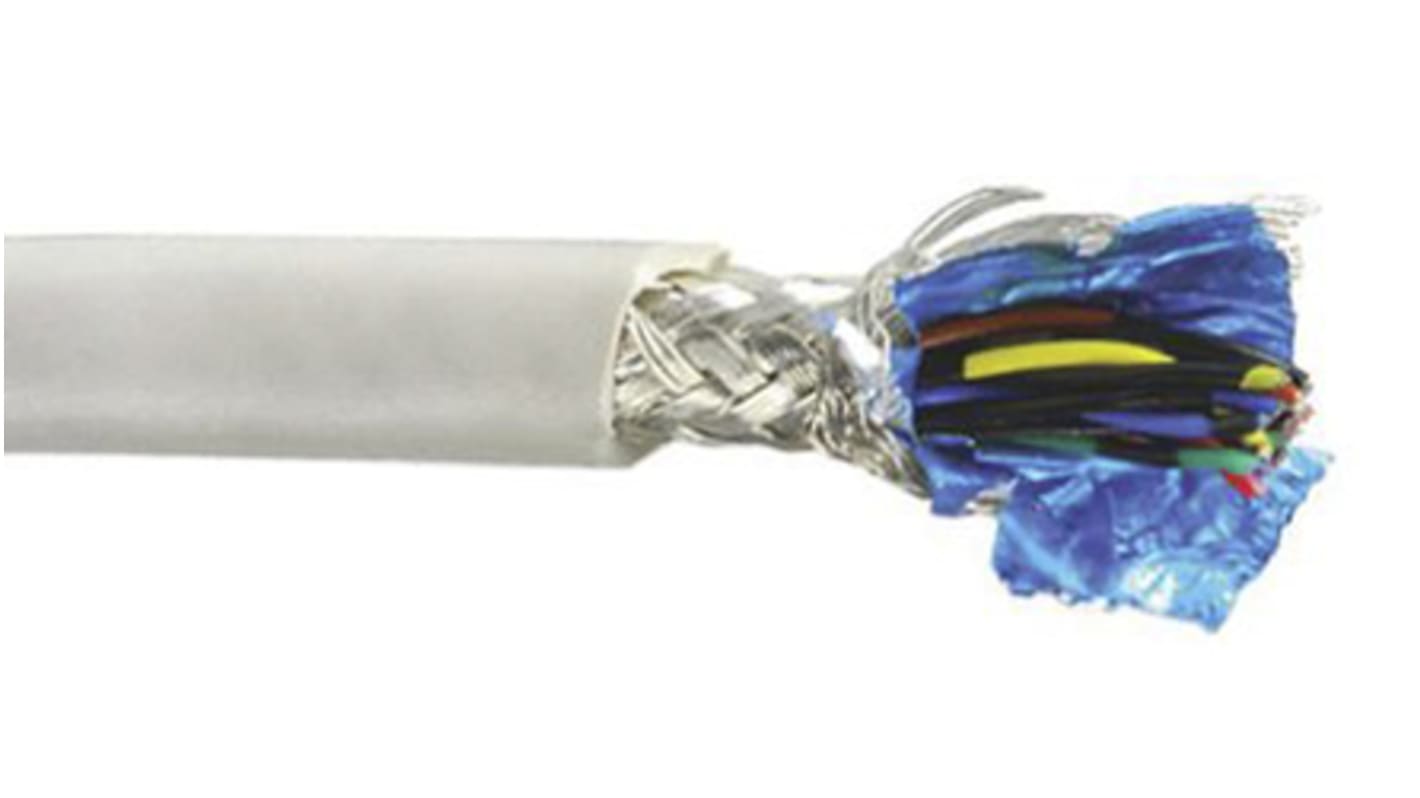

3M 3600X Multicore Industrial Cable, 20 Cores, 0.09 mm², Screened, 91m, Grey PVC Sheath, 28 AWG
- RS Stock No.:
- 920-9192
- Mfr. Part No.:
- 3600B/20 300ft
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 920-9192
- Mfr. Part No.:
- 3600B/20 300ft
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Series | 3600X | |
| Number of Cores | 20 | |
| Cross Sectional Area | 0.09 mm² | |
| Screened/Unscreened | Screened | |
| Length | 91m | |
| Sheath Colour | Grey | |
| American Wire Gauge | 28 AWG | |
| Outer Diameter | 6.1mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Insulation Material | PVC | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | 0°C | |
| Core Strands | 7/0.127 mm | |
| Conductor Material | Copper | |
| Drain Wire | No | |
| Fire Behaviour | Flame Retardant | |
| Voltage Rating | 150 V | |
| Screen Type | Braid, Foil | |
Select all | ||
|---|---|---|
Brand 3M | ||
Series 3600X | ||
Number of Cores 20 | ||
Cross Sectional Area 0.09 mm² | ||
Screened/Unscreened Screened | ||
Length 91m | ||
Sheath Colour Grey | ||
American Wire Gauge 28 AWG | ||
Outer Diameter 6.1mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Insulation Material PVC | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature 0°C | ||
Core Strands 7/0.127 mm | ||
Conductor Material Copper | ||
Drain Wire No | ||
Fire Behaviour Flame Retardant | ||
Voltage Rating 150 V | ||
Screen Type Braid, Foil | ||
- COO (Country of Origin):
- US
3M 3600 Series Cable
Features & Benefits
Meets external wiring requirements of national electrical code, article 725 (CL2)
Twisted pairs reduce crosstalk for balanced drve applications
Dual shielding with aluminum film foil and copper braid provide excellent EMI/ESD protection
Wires are color coded for easy identification
35 db average shielding effectiveness
Twisted pairs reduce crosstalk for balanced drve applications
Dual shielding with aluminum film foil and copper braid provide excellent EMI/ESD protection
Wires are color coded for easy identification
35 db average shielding effectiveness
