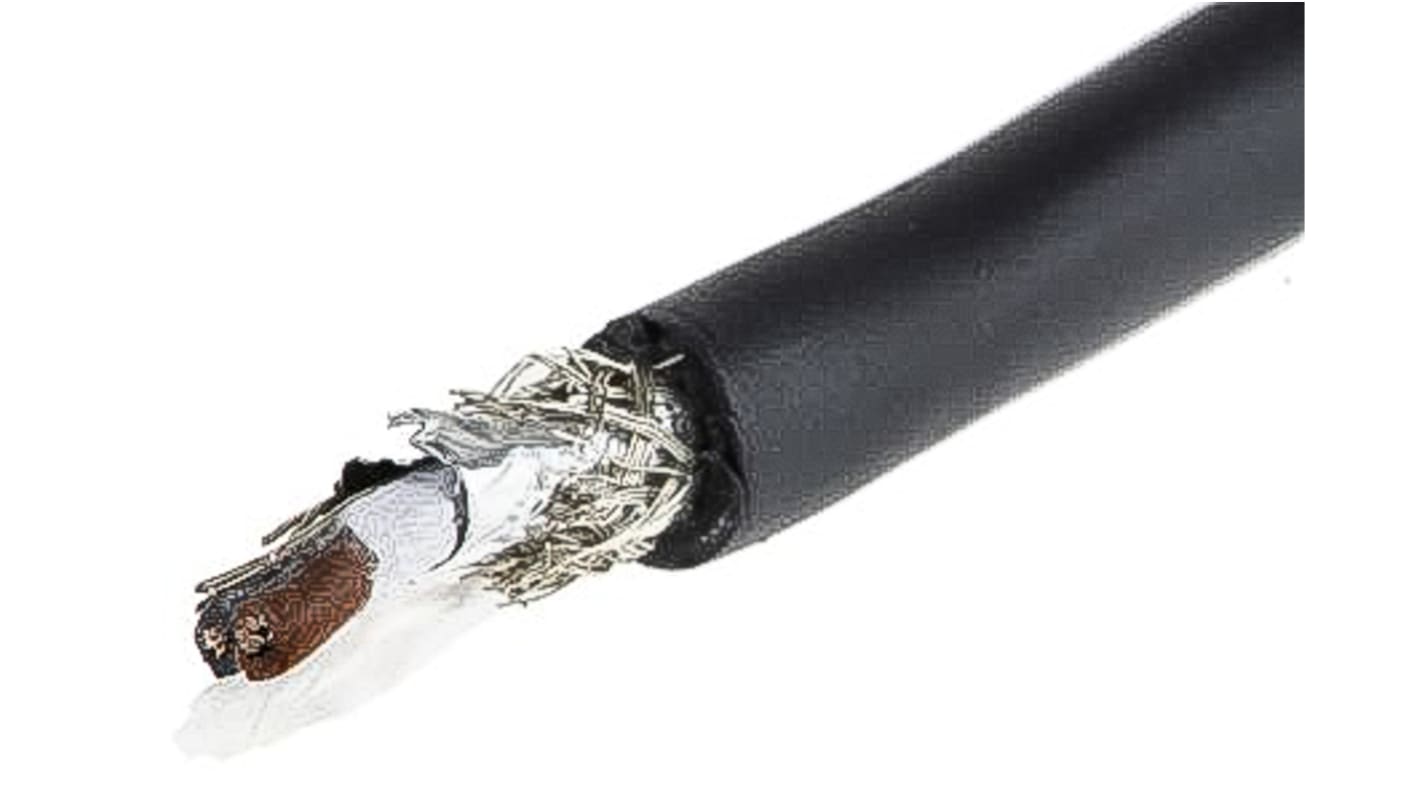

Alpha Wire Xtra-Guard 2 Performance Cable Control Cable, 2 Cores, 0.56 mm², Screened, 30m, Black PE Sheath, 20 AWG
- RS Stock No.:
- 873-1301
- Mfr. Part No.:
- 25152 BK005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£264.78
(exc. VAT)
£317.74
(inc. VAT)
FREE delivery for orders over £50.00
- 999,999,999 unit(s) shipping from 20 November 2025
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £264.78 | £8.826 |
*price indicative
Alternatives
This product is not currently available. Here are our alternative recommendations.
1 Reel of 30 Metre(s)
£166.28
(exc. VAT)
£199.54
(inc. VAT)
1 Reel of 30 Metre(s)
£512.55
(exc. VAT)
£615.06
(inc. VAT)
1 Reel of 30 Metre(s)
£499.78
(exc. VAT)
£599.74
(inc. VAT)
- RS Stock No.:
- 873-1301
- Mfr. Part No.:
- 25152 BK005
- Brand:
- Alpha Wire
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Xtra-Guard 2 Performance Cable | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.56 mm² | |
| American Wire Gauge | 20 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | PE | |
| Sheath Colour | Black | |
| Screen Type | Foil and Braid | |
| Screened/Unscreened | Screened | |
| Outer Diameter | 5.99mm | |
| Length | 30m | |
| Minimum Bend Radius | 10 x Diameter | |
| Voltage Rating | 300 V | |
| Standards Met | CE, CSA, UL | |
| Maximum Operating Temperature | +90°C | |
| Drain Wire | Yes | |
| Core Strands | 7/0.32 mm | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -30°C | |
| Conductor Resistance | 10.2 Ω/1000ft | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Xtra-Guard 2 Performance Cable | ||
Number of Cores 2 | ||
Cross Sectional Area 0.56 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PE | ||
Sheath Colour Black | ||
Screen Type Foil and Braid | ||
Screened/Unscreened Screened | ||
Outer Diameter 5.99mm | ||
Length 30m | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +90°C | ||
Drain Wire Yes | ||
Core Strands 7/0.32 mm | ||
Insulation Material PVC | ||
Minimum Operating Temperature -30°C | ||
Conductor Resistance 10.2 Ω/1000ft | ||
