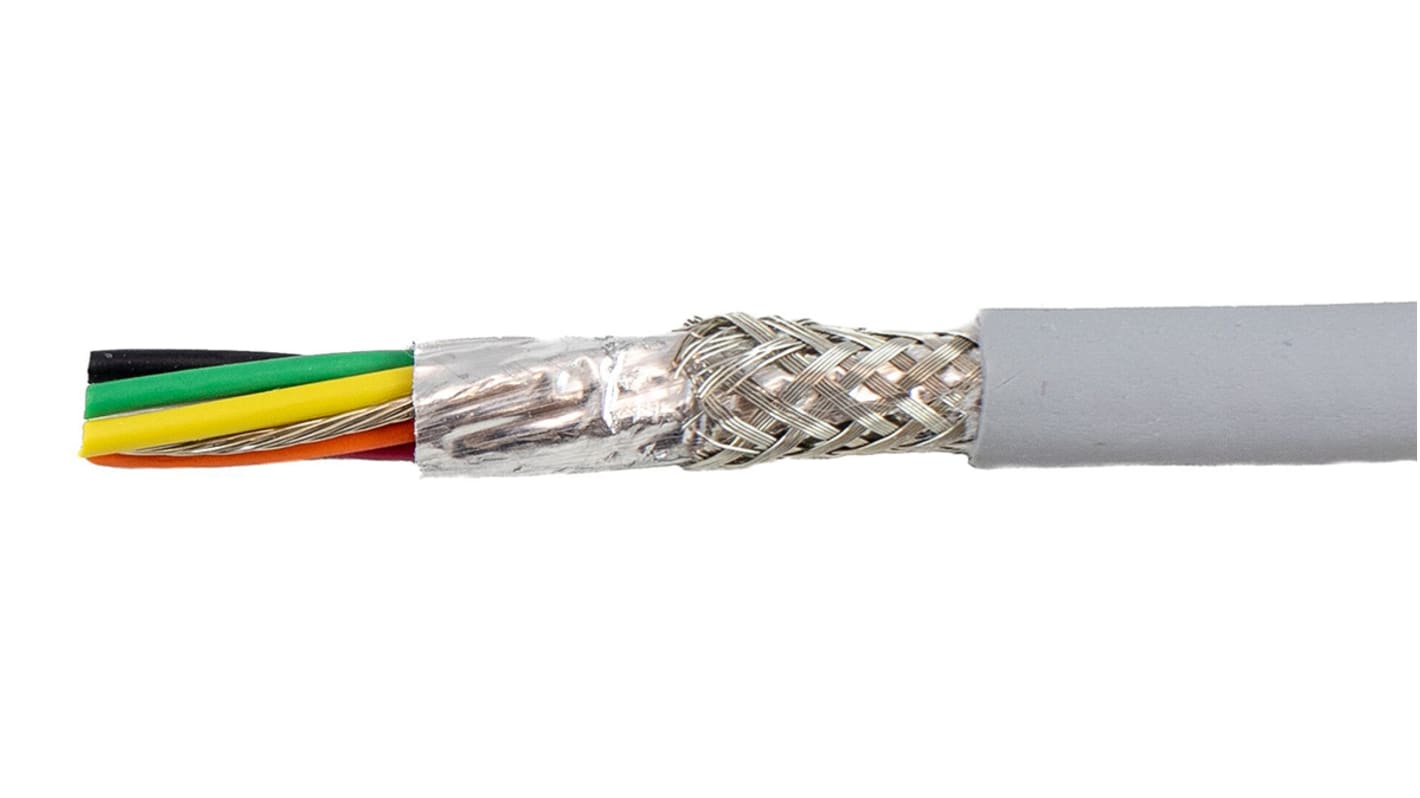

Alpha Wire Ecogen Ecocable Mini Control Cable, 6 Cores, 0.38 mm², ECO, Screened, 30m, Grey mPPE Sheath, 22 AWG

RS Stock No.:: 832-5095
Mfr. Part No.:: 78336 SL005
Brand:: Alpha Wire

Alpha Wire Ecogen Ecocable Mini Control Cable, 6 Cores, 0.38 mm², ECO, Screened, 30m, Grey mPPE Sheath, 22 AWG

Subtotal (1 reel of 30 metres)*

£459.35

(exc. VAT)

£551.22

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£459.35	£15.312

*price indicative

RS Stock No.:: 832-5095
Mfr. Part No.:: 78336 SL005
Brand:: Alpha Wire

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Series	Ecogen Ecocable Mini
	Number of Cores	6
	Cross Sectional Area	0.38 mm²
	American Wire Gauge	22 AWG
	Conductor Material	Tinned Copper
	Sheath Material	mPPE
	Control Cable Type	ECO
	Sheath Colour	Grey
	Screen Type	Foil and Braid
	Screened/Unscreened	Screened
	Length	30m
	Outer Diameter	5.18mm
	Minimum Bend Radius	10 x Diameter
	Voltage Rating	300 V
	Standards Met	CE, CSA, UL
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Halogen Free
	Minimum Operating Temperature	-40°C
	Drain Wire	Yes
	Insulation Material	MPPE
	Core Strands	19/0.16 mm

	Select all
	Brand Alpha Wire
	Series Ecogen Ecocable Mini
	Number of Cores 6
	Cross Sectional Area 0.38 mm²
	American Wire Gauge 22 AWG
	Conductor Material Tinned Copper
	Sheath Material mPPE
	Control Cable Type ECO
	Sheath Colour Grey
	Screen Type Foil and Braid
	Screened/Unscreened Screened
	Length 30m
	Outer Diameter 5.18mm
	Minimum Bend Radius 10 x Diameter
	Voltage Rating 300 V
	Standards Met CE, CSA, UL
	Maximum Operating Temperature +80°C
	Fire Behaviour Halogen Free
	Minimum Operating Temperature -40°C
	Drain Wire Yes
	Insulation Material MPPE
	Core Strands 19/0.16 mm

Alpha Wire EcoCable Mini - 300 V Supra-Shield Foil + Braid, Multiconductor

The Supra-Shield foil and braid EcoCable Mini range from Alpha Wire is a 300 Volt electrical cable which is fully recyclable due to its mPPE sheath and insulation construction. This stranded cable can handle extreme temperatures, contains zero halogens and is smaller and lighter than its PVC equivalent. Cables with Supra-Shield have a triple layer of aluminium/polyester/aluminium foil and braided shielding made from tinned copper. The combination of braid and foil allows for excellent EMI performance.

Features and Benefits

Temperature Range: -40°C to +80°C

Tinned copper conductors

mPPE insulation and jacket

Zero halogen

Specific gravity: 1.03

100% recyclable

Low outgassing

Available in several sizes of AWG

Supra-Shield® Foil + Braid Shield

How do communication cables work?

Communication cables work by sending information between two points, often at long distances via their copper conductors or optical fibres. Data communication requires clean transmission with little to no interference from external sources.

What is mPPE?

mPPE is a modified polyphenylene ether thermoplastic. Cables made from mPPE have a smaller wall thickness than other cables due to their dielectric properties. The fact that the cables are lighter allows them to be used in many different applications.
mPPE has a lower specific gravity compared to other jacket and insulation materials such as PVC and PE. This combined with the excellent dielectric properties allow the cables to be up to 65% lighter and thinner than conventional cables.

Product Application Information

Communication cables are used in a wide range of applications such as radio transmitters, electronic circuits, telecommunication, automation and studios. They are also suitable for use in NFPA 79 applications. The purpose of NFPA 79 is to provide safeguards for industrial machinery and to protect operators, equipment, facilities, and work-in-progress from fire and electrical hazards.

Approvals

• UL AWM 21460 • UL VW-1 • CSA I A/B FT1 • CE • RoHS • REACH • WEEE • ISO 10993-5

EcoCable Mini 300 V Supra-Shield Foil + Braid Shield, Multiconductor

Conductors: 6, Black, Brown, Red, Orange, Yellow, Green
Nominal Diameter: 0.204 inch (5.18 mm)
Jacket Thickness: 0.015 inch (0.38 mm)
Stranding: 19/34
Insulation Thickness: 0.007 (0.18 mm)
22 AWG (0.382 mm²)
Jacket Colour: Slate
