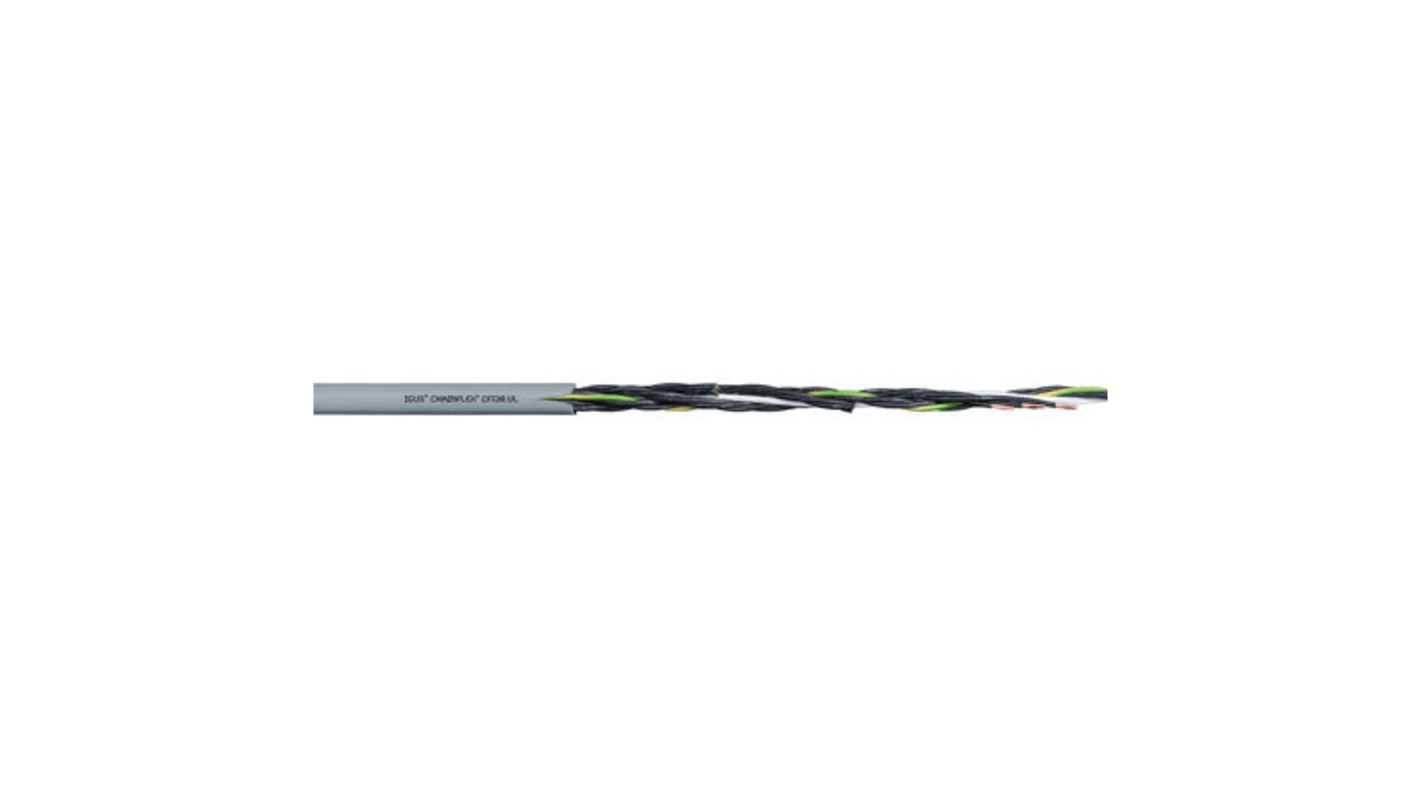

Igus chainflex CF130.UL Control Cable, 4 Cores, 0.5 mm², Unscreened, 25m, Grey PVC Sheath, 20 AWG

RS Stock No.:: 765-3939
Mfr. Part No.:: CF130.05.04.UL
Brand:: Igus

Igus chainflex CF130.UL Control Cable, 4 Cores, 0.5 mm², Unscreened, 25m, Grey PVC Sheath, 20 AWG

3 In stock - FREE next working day delivery available

Price 1 Reel of 25 Metre(s)

£55.35

(exc. VAT)

£66.42

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	£55.35	£2.214

*price indicative

RS Stock No.:: 765-3939
Mfr. Part No.:: CF130.05.04.UL
Brand:: Igus

Technical Reference

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Chainflex® PVC Control Cable CF130

Chainflex® PVC control cable is designed for medium load requirements.

Features and Benefits

• Silicon-free
• Without influence of oil
• Not shielded
• Torsion resistant
• Preferably indoor applications
• Flame-retardant in accordance to IEC 60332-1-2, CEI 20-35, FT1, VW1
• Freely suspended travel distances and for gliding applications up to 50 m, Class 2
• Fine-wire stranded conductor consisting of bare copper wires (following EN 60228)
• Outer sheath: Low-adhesion mixture on the basis of PVC, adapted to suit the requirements in Energy Chains® (following DIN VDE 0282 Part 10)

Standards

IEC 60332-1-2, CEI 20-35, FT1, VW1

Specifications

Attribute	Value
Series	chainflex CF130.UL
Number of Cores	4
Cross Sectional Area	0.5 mm²
Screened/Unscreened	Unscreened
Length	25m
Sheath Colour	Grey
Cable Shape	Multicore
American Wire Gauge	20 AWG
Outer Diameter	6.5mm
Sheath Material	PVC
Voltage Rating	300/500 V
Earth Cable	Yes
Screen Type	Unscreened
Armoured	No
Maximum Operating Temperature	+70°C
Conductor Resistance	39 Ω/km
Insulation Material	TPE
Current Rating	10 A
Fire Behaviour	Flame Retardant
Minimum Operating Temperature	-5°C
Oil Resistant	No
Minimum Bend Radius	5 x D
Conductor Material	Bare Copper
