RS PRO Control Cable, 2 Cores, 0.22 mm², YY, Screened, 25m, Grey PVC Sheath, 24 AWG
- RS Stock No.:
- 749-2579
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.068
(exc. VAT)
£1.282
(inc. VAT)
- RS Stock No.:
- 749-2579
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 2 | |
| Cross Sectional Area | 0.22 mm² | |
| American Wire Gauge | 24 AWG | |
| Conductor Material | Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Control Cable Type | YY | |
| Sheath Colour | Grey | |
| Screen Type | Copper | |
| Screened/Unscreened | Screened | |
| Outer Diameter | 5.15mm | |
| Length | 25m | |
| Minimum Bend Radius | 8 x Diameter | |
| Voltage Rating | 30 V | |
| Current Rating | 1.2 A | |
| Maximum Operating Temperature | +60°C | |
| Core Strands | 7/0.6 mm | |
| Minimum Operating Temperature | -20°C | |
| Filler Material | Cotton Yarn | |
| Insulation Material | PVC | |
| Conductor Resistance | 84.6 Ω/km | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 2 | ||
Cross Sectional Area 0.22 mm² | ||
American Wire Gauge 24 AWG | ||
Conductor Material Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Control Cable Type YY | ||
Sheath Colour Grey | ||
Screen Type Copper | ||
Screened/Unscreened Screened | ||
Outer Diameter 5.15mm | ||
Length 25m | ||
Minimum Bend Radius 8 x Diameter | ||
Voltage Rating 30 V | ||
Current Rating 1.2 A | ||
Maximum Operating Temperature +60°C | ||
Core Strands 7/0.6 mm | ||
Minimum Operating Temperature -20°C | ||
Filler Material Cotton Yarn | ||
Insulation Material PVC | ||
Conductor Resistance 84.6 Ω/km | ||
- COO (Country of Origin):
- CN

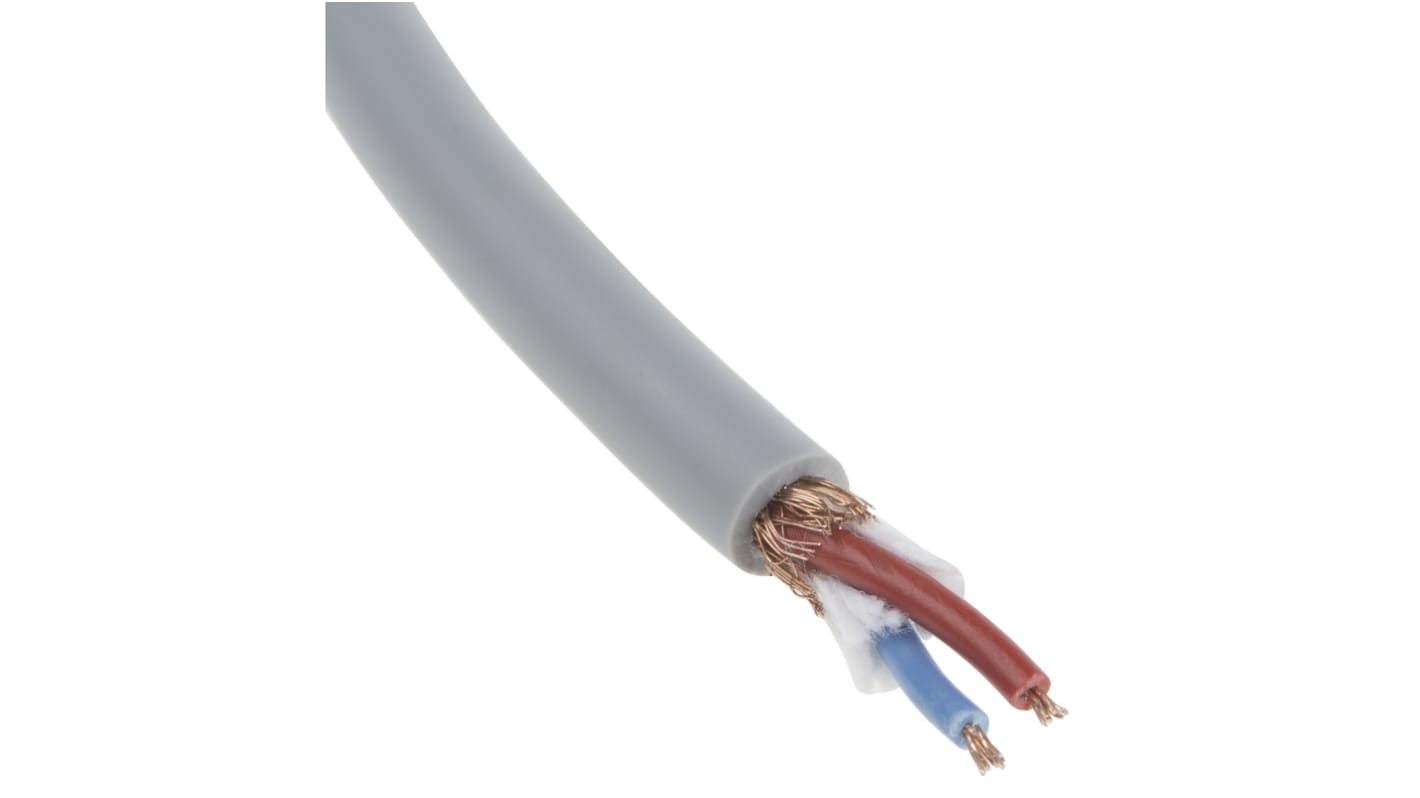

RS PRO Miniature Braided Screen Twin Round PVC Cable
From the trusted RS PRO brand, this high-quality cable is specifically designed for use with live or studio microphones, but can also be used for equipment interconnect. It features copper stranded cores with a PVC sheath for robust and reliable cable you can depend on. It also has a miniature braided shield.
As the cable is screened for EMI protection, it has extra protection from interference that might compromise sound quality.
This microphone cable features a PVC sheath which offers an excellent standard of flexibility and protection ensuring the cable is protected from damage by twisting and bending. A such, the cable is suitable for use in most professional audio applications. It is ideal for audio, microphone, and instrumentation applications.
Features and Benefits
• Capacitance: 215 pF/m core to screen
• 7/0.2mm plain copper stranded conductors
• PVC insulated
• Braided screen with overall grey PVC sheath
• Core colours: red and blue
• Twisted cores for hum reduction
Applications
This multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers. This high-quality audio cable is suitable for;
• Live stages and theatres
• Professional studio setups
• Hobbyist and custom audio setups
Why RS PRO?
RS PRO provides high-quality cables, connectors, and adapters to meet any need. With vigorous in-house testing of all our products, RS PRO aims to be your vendor of choice when reliability and affordability are a must.
Whether you're in the studio, recording on location or simply relaxing at home, RS PRO has an audio connection solution to suit your needs.
As the cable is screened for EMI protection, it has extra protection from interference that might compromise sound quality.
This microphone cable features a PVC sheath which offers an excellent standard of flexibility and protection ensuring the cable is protected from damage by twisting and bending. A such, the cable is suitable for use in most professional audio applications. It is ideal for audio, microphone, and instrumentation applications.
Features and Benefits
• Capacitance: 215 pF/m core to screen
• 7/0.2mm plain copper stranded conductors
• PVC insulated
• Braided screen with overall grey PVC sheath
• Core colours: red and blue
• Twisted cores for hum reduction
Applications
This multicore microphone cable can be soldered to standard jack and XLR connectors to make custom audio cables that can connect microphones and instruments to mixers or amplifiers. This high-quality audio cable is suitable for;
• Live stages and theatres
• Professional studio setups
• Hobbyist and custom audio setups
Why RS PRO?
RS PRO provides high-quality cables, connectors, and adapters to meet any need. With vigorous in-house testing of all our products, RS PRO aims to be your vendor of choice when reliability and affordability are a must.
Whether you're in the studio, recording on location or simply relaxing at home, RS PRO has an audio connection solution to suit your needs.
Standards
RoHS /IEC 60228/VDE 0295
IEC 60 228 that is VDE 0295, class 5
IEC 60 228 that is VDE 0295, class 5
