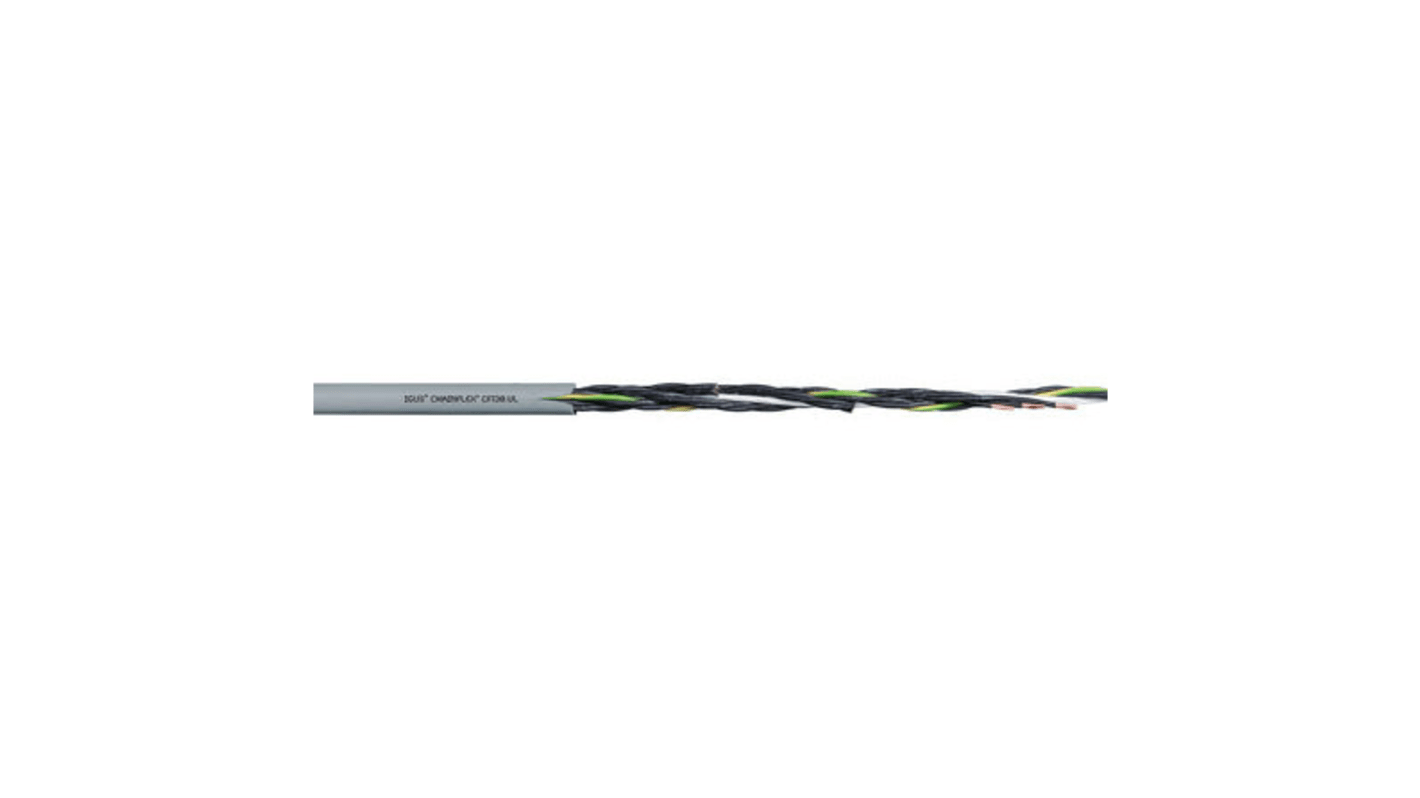

Igus chainflex CF130.UL Control Cable, 25 Cores, 1 mm², Unscreened, 25m, Grey PVC Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 25 metres)*

£580.64

(exc. VAT)

£696.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£580.64£23.226

*price indicative

RS Stock No.:
720-2871
Mfr. Part No.:
CF130.10.25.UL
Brand:
Igus
Find similar products by selecting one or more attributes.
Select all

Brand

Igus

Series

chainflex CF130.UL

Number of Cores

25

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Bare Copper

Sheath Material

PVC

Sheath Colour

Grey

Armoured

No

Screen Type

Unscreened

Screened/Unscreened

Unscreened

Outer Diameter

17mm

Length

25m

Minimum Bend Radius

5 x D

Voltage Rating

300 V

Current Rating

17 A

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+70°C

Insulation Material

TPE

Cable Shape

Multicore

Oil Resistant

No

Minimum Operating Temperature

-5°C

Conductor Resistance

19.5 Ω/km

Earth Cable

Yes
