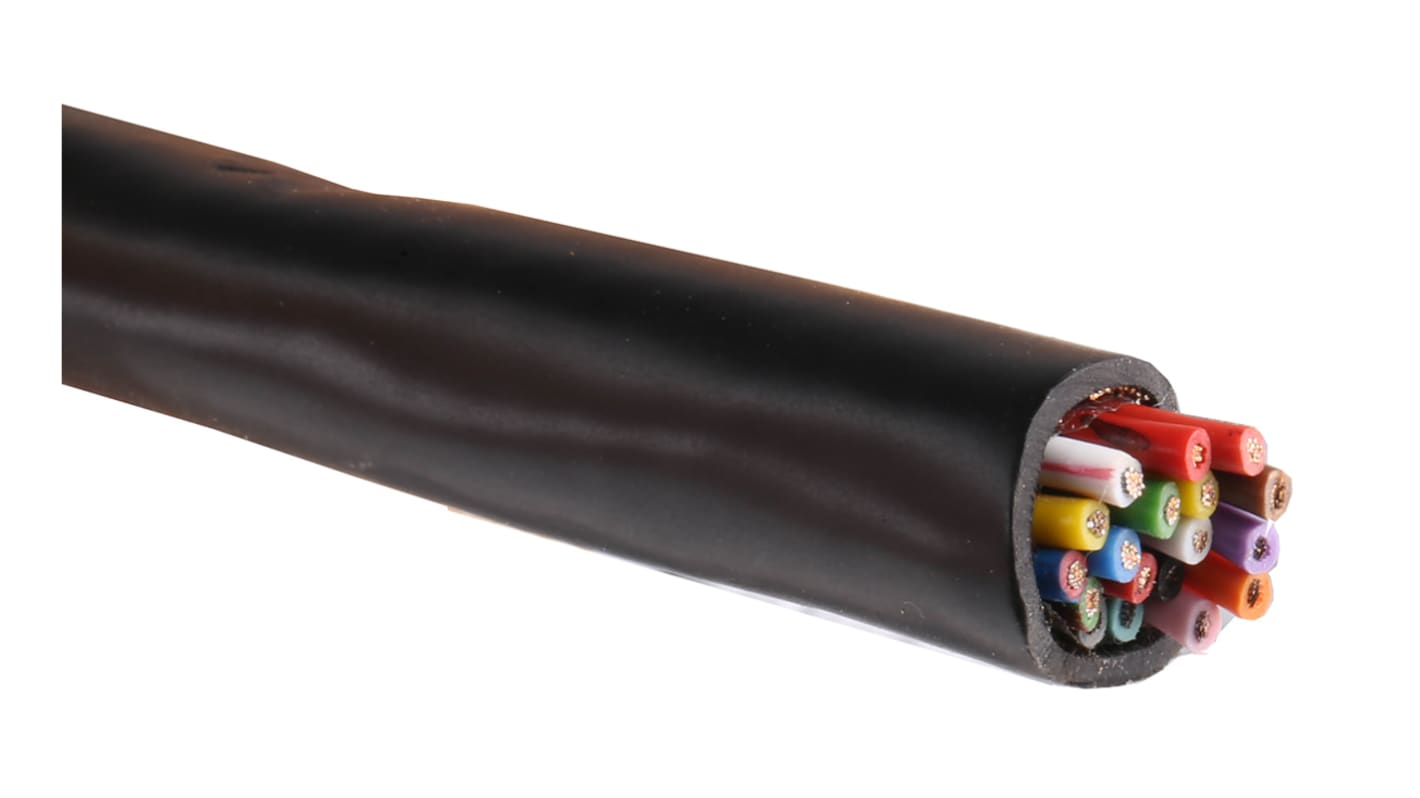

RS PRO Data Cable, 18 Cores, 0.5 mm², Screened, 20 AWG, 25m, Screened Shield
- RS Stock No.:
- 660-0514
- Brand:
- RS PRO
Stock information currently inaccessible
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£191.25
(exc. VAT)
£229.50
(inc. VAT)
- RS Stock No.:
- 660-0514
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.5 mm² | |
| Number of Cores | 18 | |
| American Wire Gauge | 20 AWG | |
| Screened/Unscreened | Screened | |
| Length | 25m | |
| Shield Type | Tinned Copper Braid | |
| Sheath Colour | Black | |
| Outer Diameter | 12mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Multicore | |
| Fire Behaviour | Flame Retardant | |
| Shielded/Unshielded | Shielded | |
| Voltage Rating | 300 V | |
| Core Strands | 16/0.2 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.5 mm² | ||
Number of Cores 18 | ||
American Wire Gauge 20 AWG | ||
Screened/Unscreened Screened | ||
Length 25m | ||
Shield Type Tinned Copper Braid | ||
Sheath Colour Black | ||
Outer Diameter 12mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Fire Behaviour Flame Retardant | ||
Shielded/Unshielded Shielded | ||
Voltage Rating 300 V | ||
Core Strands 16/0.2 mm | ||
Standards
Defence Standard 61-12, Parts 4 and 5; NBN EN ISO 9001; OP-QAO-003; OP-QIO-504; KI-QIO-616
