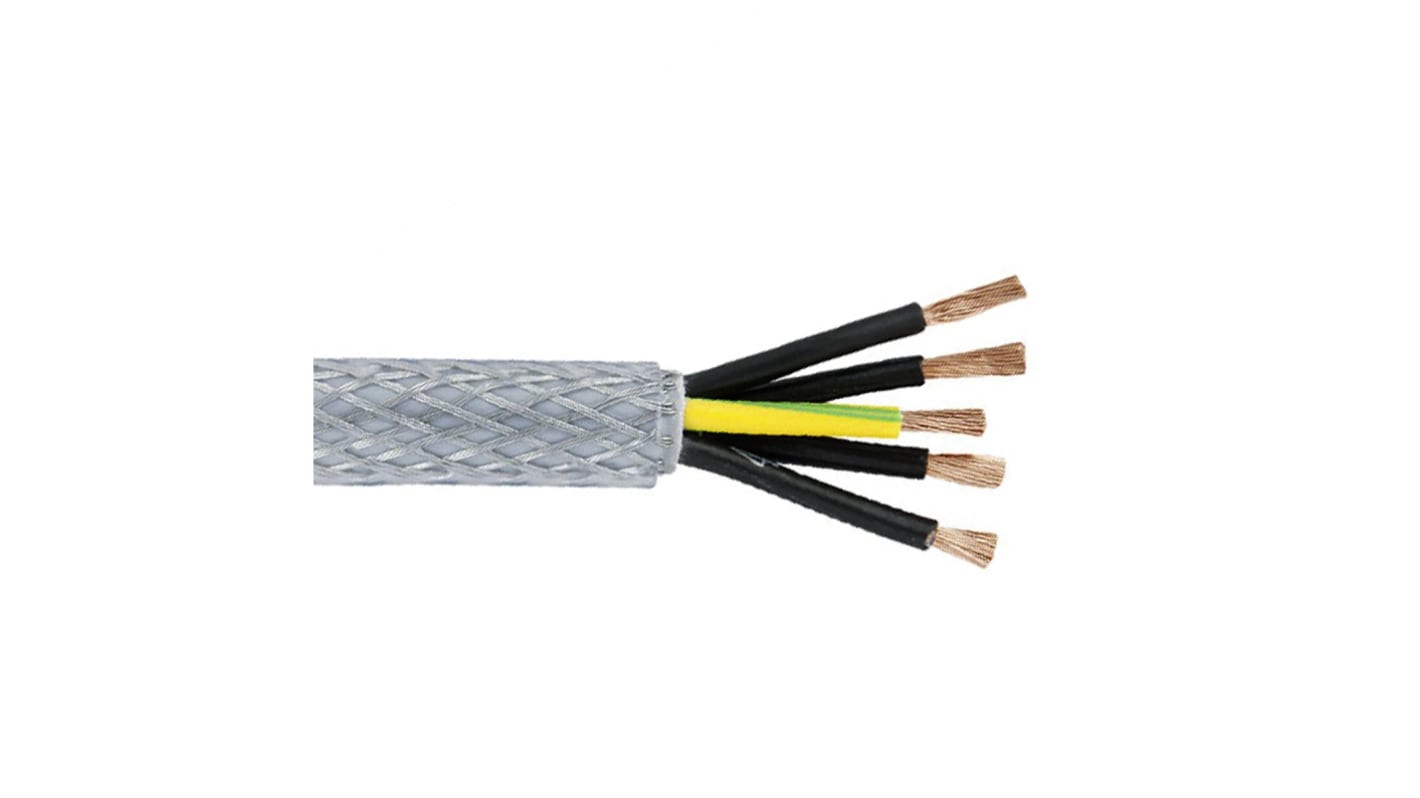

Belden Belden SY Control Cable, 5 Cores, 1.5 mm², SY, Screened, 100m, Transparent PVC Sheath, 15 AWG
- RS Stock No.:
- 514-4111
- Mfr. Part No.:
- SYSD05.01100
- Brand:
- Belden
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£94.14
(exc. VAT)
£112.97
(inc. VAT)
- RS Stock No.:
- 514-4111
- Mfr. Part No.:
- SYSD05.01100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | Belden SY | |
| Number of Cores | 5 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 15 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Control Cable Type | SY | |
| Sheath Colour | Transparent | |
| Screened/Unscreened | Screened | |
| Screen Type | Galvanised Steel Braid | |
| Minimum Bend Radius | 10 x Diameter | |
| Outer Diameter | 12.8mm | |
| Length | 100m | |
| Voltage Rating | 300/500 V | |
| Current Rating | 16 A | |
| Maximum Operating Temperature | +70°C | |
| Earth Cable | Yes | |
| Core Strands | 30/0.25 mm | |
| Insulation Material | PVC | |
| Oil Resistant | No | |
| Minimum Operating Temperature | -5°C | |
| Filler Material | PVC | |
| Conductor Resistance | 13.3 Ω/km | |
| Bedding Material | PVC | |
| Select all | ||
|---|---|---|
Brand Belden | ||
Series Belden SY | ||
Number of Cores 5 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 15 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Control Cable Type SY | ||
Sheath Colour Transparent | ||
Screened/Unscreened Screened | ||
Screen Type Galvanised Steel Braid | ||
Minimum Bend Radius 10 x Diameter | ||
Outer Diameter 12.8mm | ||
Length 100m | ||
Voltage Rating 300/500 V | ||
Current Rating 16 A | ||
Maximum Operating Temperature +70°C | ||
Earth Cable Yes | ||
Core Strands 30/0.25 mm | ||
Insulation Material PVC | ||
Oil Resistant No | ||
Minimum Operating Temperature -5°C | ||
Filler Material PVC | ||
Conductor Resistance 13.3 Ω/km | ||
Bedding Material PVC | ||
- COO (Country of Origin):
- CN
