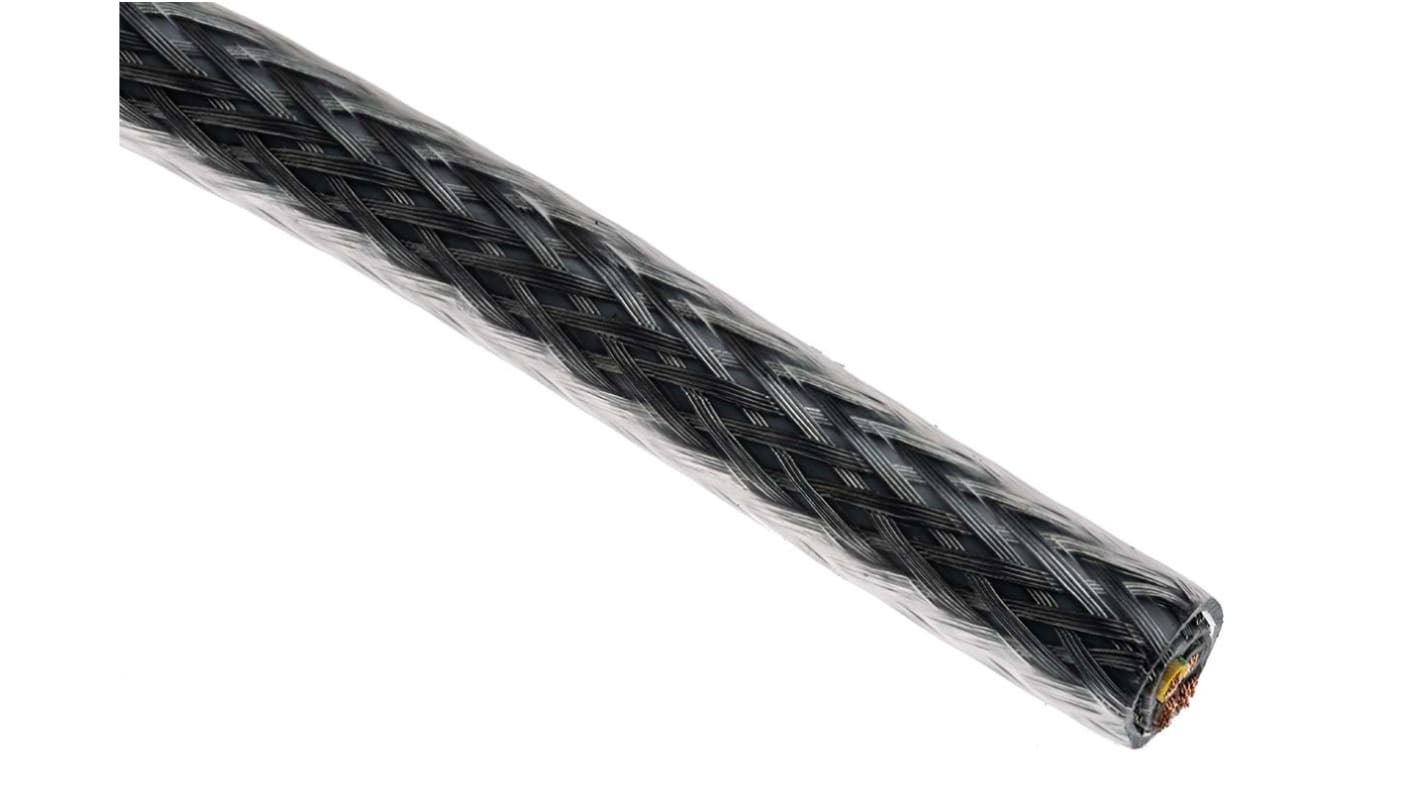

Belden Belden SY Control Cable, 4 Cores, 1.5 mm², SY, Screened, 100m, Transparent PVC Sheath, 15 AWG
- RS Stock No.:
- 514-3972
- Mfr. Part No.:
- SYSD04.01100
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 514-3972
- Mfr. Part No.:
- SYSD04.01100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | Belden SY | |
| Number of Cores | 4 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 15 AWG | |
| Conductor Material | Bare Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Transparent | |
| Control Cable Type | SY | |
| Screened/Unscreened | Screened | |
| Screen Type | Galvanised Steel Braid | |
| Outer Diameter | 11.7mm | |
| Length | 100m | |
| Minimum Bend Radius | 10 x Diameter | |
| Voltage Rating | 300/500 V | |
| Current Rating | 16 A | |
| Maximum Operating Temperature | +70°C | |
| Bedding Material | PVC | |
| Core Strands | 30/0.25 mm | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -5°C | |
| Oil Resistant | No | |
| Earth Cable | Yes | |
| Conductor Resistance | 13.3 Ω/km | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series Belden SY | ||
Number of Cores 4 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 15 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Transparent | ||
Control Cable Type SY | ||
Screened/Unscreened Screened | ||
Screen Type Galvanised Steel Braid | ||
Outer Diameter 11.7mm | ||
Length 100m | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 300/500 V | ||
Current Rating 16 A | ||
Maximum Operating Temperature +70°C | ||
Bedding Material PVC | ||
Core Strands 30/0.25 mm | ||
Insulation Material PVC | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant No | ||
Earth Cable Yes | ||
Conductor Resistance 13.3 Ω/km | ||
Flexible Armoured SY Type Mains Cable
Flexible mains cable, commonly known as an ’SY’ type, which has three layers of protection, combining the characteristics of a flexible mains cable with that of a steel wire armoured type.
Features and Benefits
·Flexible
·Good resistance to chemicals
·Flexible
·Good resistance to chemicals
Applications
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
Manufactured to VDE 2050 standard
Core colours:
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
Type SY
Note
SY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
