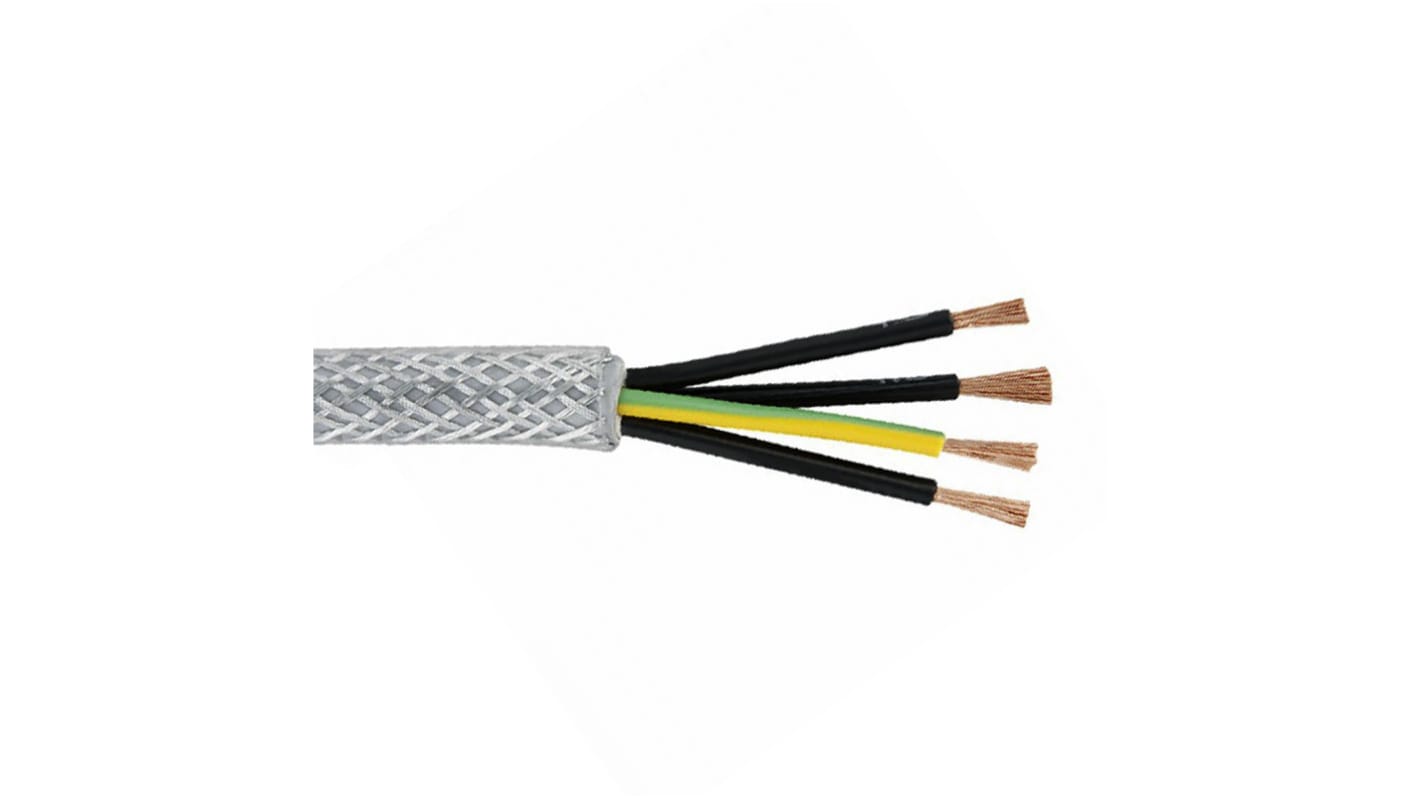

Belden Belden SY Control Cable, 4 Cores, 0.75 mm², SY, Screened, 100m, Transparent PVC Sheath, 18 AWG
- RS Stock No.:
- 514-3938
- Mfr. Part No.:
- SYSB04.1100
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 514-3938
- Mfr. Part No.:
- SYSB04.1100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | Belden SY | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.75 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Control Cable Type | SY | |
| Sheath Colour | Transparent | |
| Screened/Unscreened | Screened | |
| Screen Type | Galvanised Steel Braid | |
| Outer Diameter | 10.4mm | |
| Length | 100m | |
| Minimum Bend Radius | 10 x Diameter | |
| Voltage Rating | 300/500 V | |
| Current Rating | 6 A | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -5°C | |
| Oil Resistant | No | |
| Conductor Resistance | 26 Ω/km | |
| Bedding Material | PVC | |
| Core Strands | 24/0.2 mm | |
| Insulation Material | PVC | |
| Earth Cable | Yes | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series Belden SY | ||
Number of Cores 4 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Control Cable Type SY | ||
Sheath Colour Transparent | ||
Screened/Unscreened Screened | ||
Screen Type Galvanised Steel Braid | ||
Outer Diameter 10.4mm | ||
Length 100m | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 300/500 V | ||
Current Rating 6 A | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant No | ||
Conductor Resistance 26 Ω/km | ||
Bedding Material PVC | ||
Core Strands 24/0.2 mm | ||
Insulation Material PVC | ||
Earth Cable Yes | ||
- COO (Country of Origin):
- CN
Flexible Armoured SY Type Mains Cable
Flexible mains cable, commonly known as an ’SY’ type, which has three layers of protection, combining the characteristics of a flexible mains cable with that of a steel wire armoured type.
Features and Benefits
·Flexible
·Good resistance to chemicals
·Flexible
·Good resistance to chemicals
Applications
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
Manufactured to VDE 2050 standard
Core colours:
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
Type SY
Note
SY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
