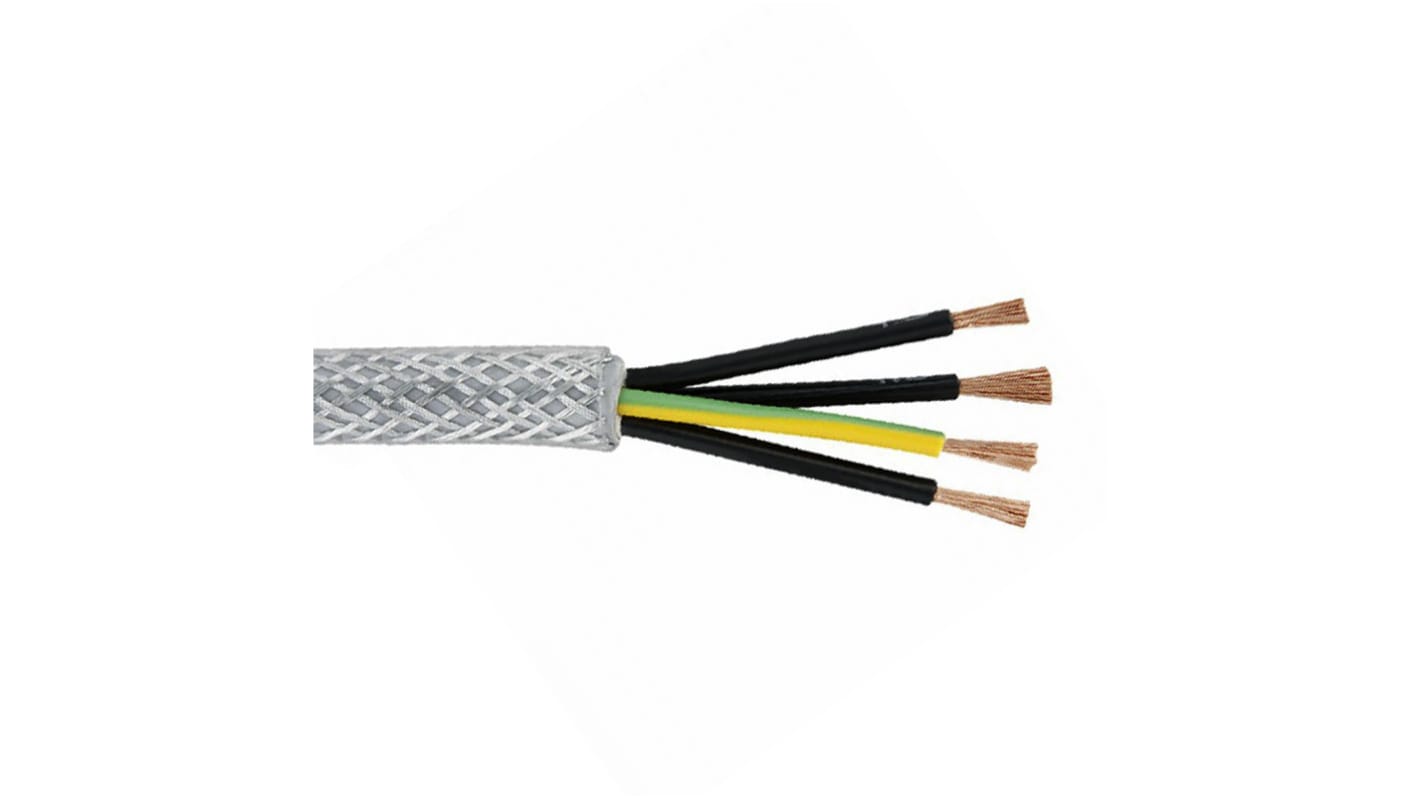

Belden Belden SY Control Cable, 4 Cores, 2.5 mm², SY, Screened, 100m, Transparent PVC Sheath, 13 AWG
- RS Stock No.:
- 514-3887
- Mfr. Part No.:
- SYSE04.01100
- Brand:
- Belden
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£179.98
(exc. VAT)
£215.98
(inc. VAT)
- RS Stock No.:
- 514-3887
- Mfr. Part No.:
- SYSE04.01100
- Brand:
- Belden
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | Belden SY | |
Number of Cores | 4 | |
Cross Sectional Area | 2.5 mm² | |
American Wire Gauge | 13 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | Polyvinyl Chloride PVC | |
Control Cable Type | SY | |
Sheath Colour | Transparent | |
Screen Type | Galvanised Steel Braid | |
Screened/Unscreened | Screened | |
Minimum Bend Radius | 10 x Diameter | |
Outer Diameter | 13.6mm | |
Length | 100m | |
Voltage Rating | 300/500 V | |
Current Rating | 20 A | |
Maximum Operating Temperature | +70°C | |
Conductor Resistance | 7.98 Ω/km | |
Insulation Material | PVC | |
Oil Resistant | No | |
Minimum Operating Temperature | -5°C | |
Earth Cable | Yes | |
Core Strands | 50/0.25 mm | |
Bedding Material | PVC | |
Select all | ||
---|---|---|
Brand Belden | ||
Series Belden SY | ||
Number of Cores 4 | ||
Cross Sectional Area 2.5 mm² | ||
American Wire Gauge 13 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Control Cable Type SY | ||
Sheath Colour Transparent | ||
Screen Type Galvanised Steel Braid | ||
Screened/Unscreened Screened | ||
Minimum Bend Radius 10 x Diameter | ||
Outer Diameter 13.6mm | ||
Length 100m | ||
Voltage Rating 300/500 V | ||
Current Rating 20 A | ||
Maximum Operating Temperature +70°C | ||
Conductor Resistance 7.98 Ω/km | ||
Insulation Material PVC | ||
Oil Resistant No | ||
Minimum Operating Temperature -5°C | ||
Earth Cable Yes | ||
Core Strands 50/0.25 mm | ||
Bedding Material PVC | ||
Flexible Armoured SY Type Mains Cable
·Flexible
·Good resistance to chemicals
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
Note
