Belden Belden YY YY Control Cable, 18 Cores, 0.75 mm², Unscreened, 50m, Grey PVC Sheath
- RS Stock No.:
- 483-4734
- Mfr. Part No.:
- YYNB18.0050
- Brand:
- Belden

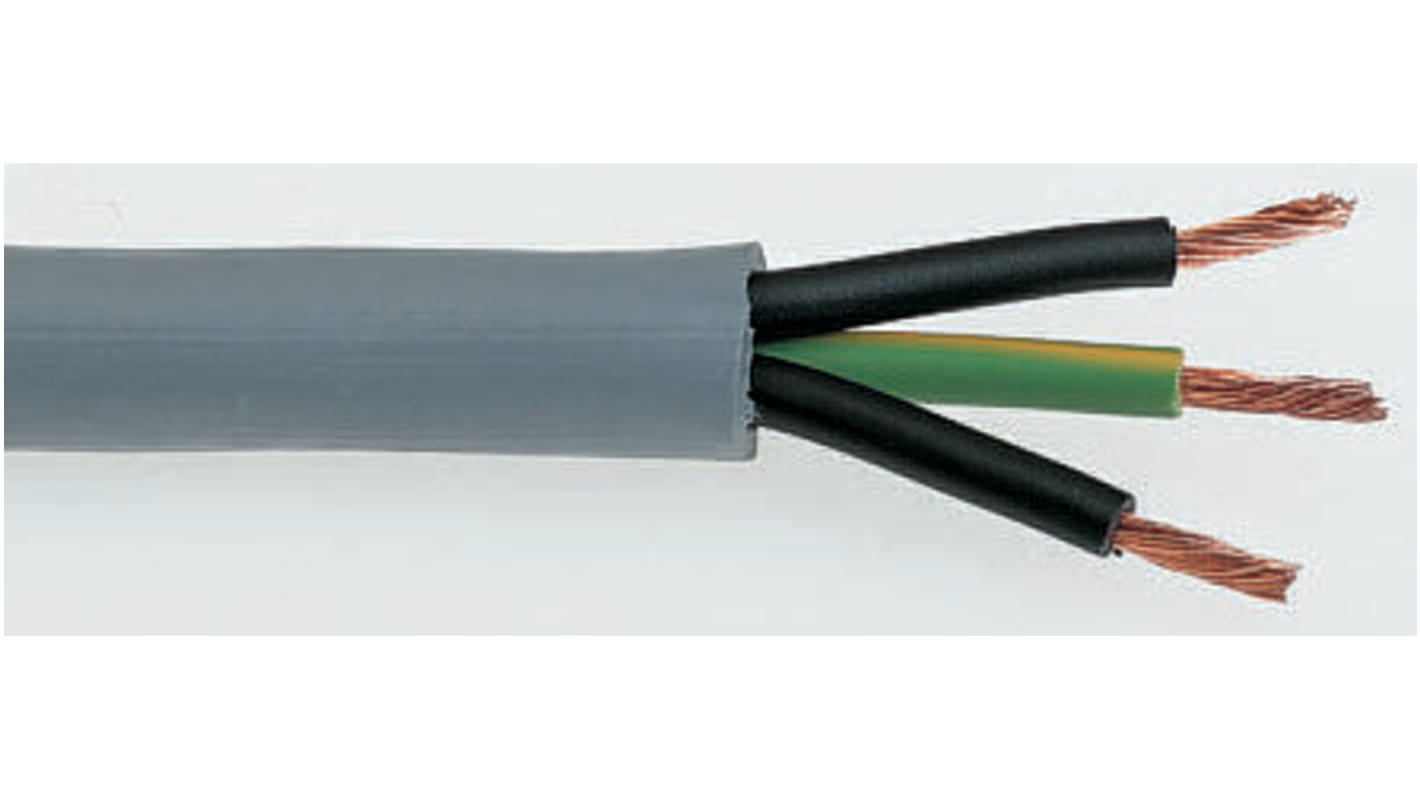

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 483-4734
- Mfr. Part No.:
- YYNB18.0050
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | Belden YY | |
| Number of Cores | 18 | |
| Cross Sectional Area | 0.75 mm² | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Sheath Colour | Grey | |
| Outer Diameter | 13.6mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Current Rating | 6 A | |
| Oil Resistant | No | |
| Minimum Operating Temperature | -5°C | |
| Filler Material | PVC | |
| Conductor Resistance | 26 Ω/km | |
| Insulation Material | PVC | |
| Core Strands | 24/0.2 mm | |
| Voltage Rating | 300/500 V | |
| Earth Cable | Yes | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +70°C | |
| Minimum Bend Radius | 10 x Diameter | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series Belden YY | ||
Number of Cores 18 | ||
Cross Sectional Area 0.75 mm² | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Sheath Colour Grey | ||
Outer Diameter 13.6mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Current Rating 6 A | ||
Oil Resistant No | ||
Minimum Operating Temperature -5°C | ||
Filler Material PVC | ||
Conductor Resistance 26 Ω/km | ||
Insulation Material PVC | ||
Core Strands 24/0.2 mm | ||
Voltage Rating 300/500 V | ||
Earth Cable Yes | ||
Conductor Material Copper | ||
Maximum Operating Temperature +70°C | ||
Minimum Bend Radius 10 x Diameter | ||
- COO (Country of Origin):
- CN
Control Cable YY Type
YY control cable are flexible, insulated and sheathed in accordance with VDE0250
Features and Benefits
• Stranded bare copper conductor
• PVC jacket
• PVC jacket
Standards
VDE Spec 0281-402 (Manufacture Specification); NBN EN ISO 9001; DEF STAN 61/12 Part 4; OP-QAO-003; OP-QIO-504; KI-QIO-616
Note
YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
