Lapp ÖLFLEX Control Cable, 7 Cores, 1 mm², Screened, 50m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 454-8972
- Mfr. Part No.:
- 0015707
- Brand:
- Lapp

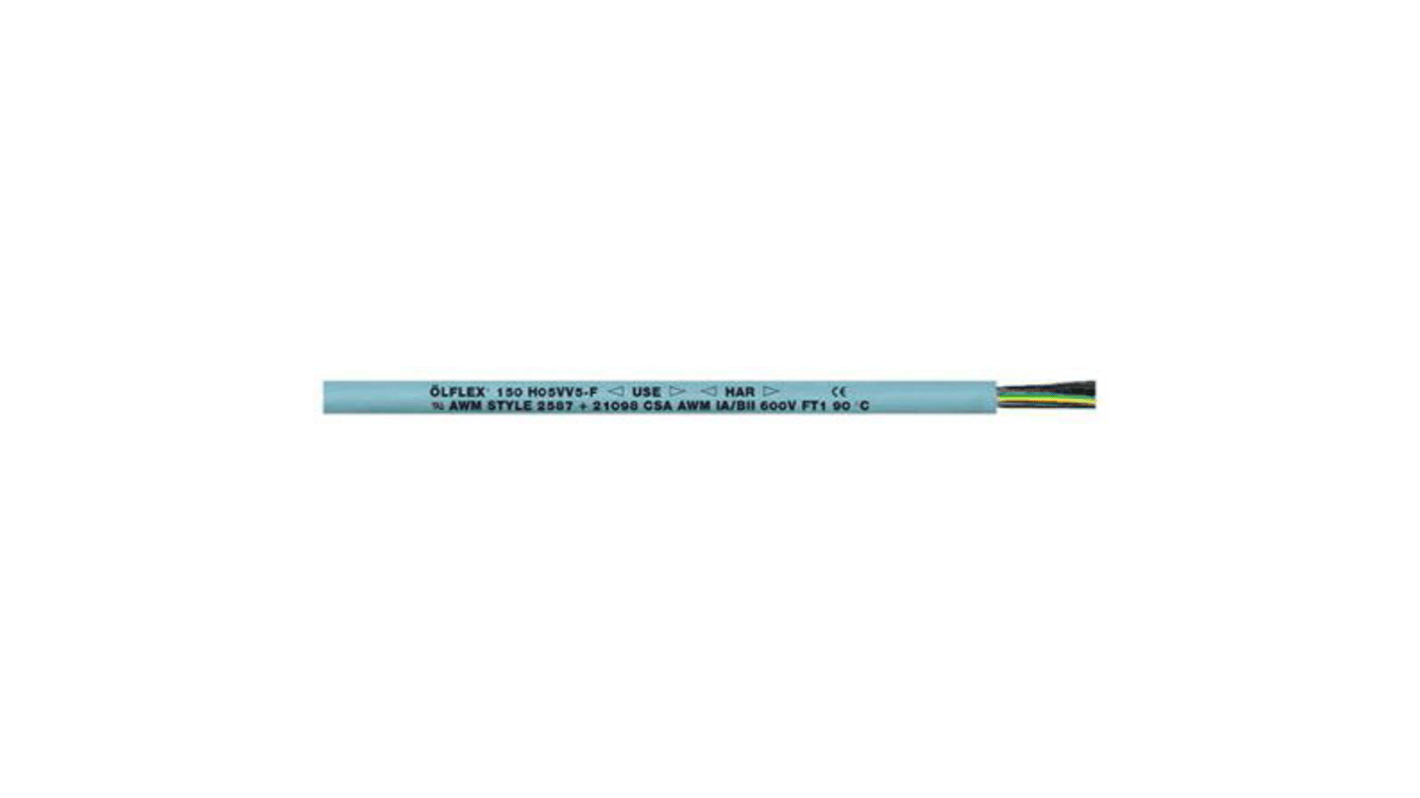

Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 454-8972
- Mfr. Part No.:
- 0015707
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX | |
| Number of Cores | 7 | |
| Cross Sectional Area | 1 mm² | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Sheath Colour | Grey | |
| American Wire Gauge | 17 AWG | |
| Outer Diameter | 13.1mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Oil Resistant | Yes | |
| Conductor Resistance | 19.5 Ω/km | |
| Insulation Material | PVC | |
| Current Rating | 15 A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +90°C | |
| Filler Material | Non-Wicking Filler | |
| Voltage Rating | 600 V | |
| Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D | |
| Conductor Material | Copper | |
| Screen Type | Tinned Copper Braid | |
| Earth Cable | Yes | |
| Bedding Material | PVC | |
| Core Strands | 32/0.20 mm | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX | ||
Number of Cores 7 | ||
Cross Sectional Area 1 mm² | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Sheath Colour Grey | ||
American Wire Gauge 17 AWG | ||
Outer Diameter 13.1mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Oil Resistant Yes | ||
Conductor Resistance 19.5 Ω/km | ||
Insulation Material PVC | ||
Current Rating 15 A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +90°C | ||
Filler Material Non-Wicking Filler | ||
Voltage Rating 600 V | ||
Minimum Bend Radius Fixed - 6 x D Occasional Flexing - 20 x D | ||
Conductor Material Copper | ||
Screen Type Tinned Copper Braid | ||
Earth Cable Yes | ||
Bedding Material PVC | ||
Core Strands 32/0.20 mm | ||
- COO (Country of Origin):
- DE
Standards
UL; CSA; HAR
