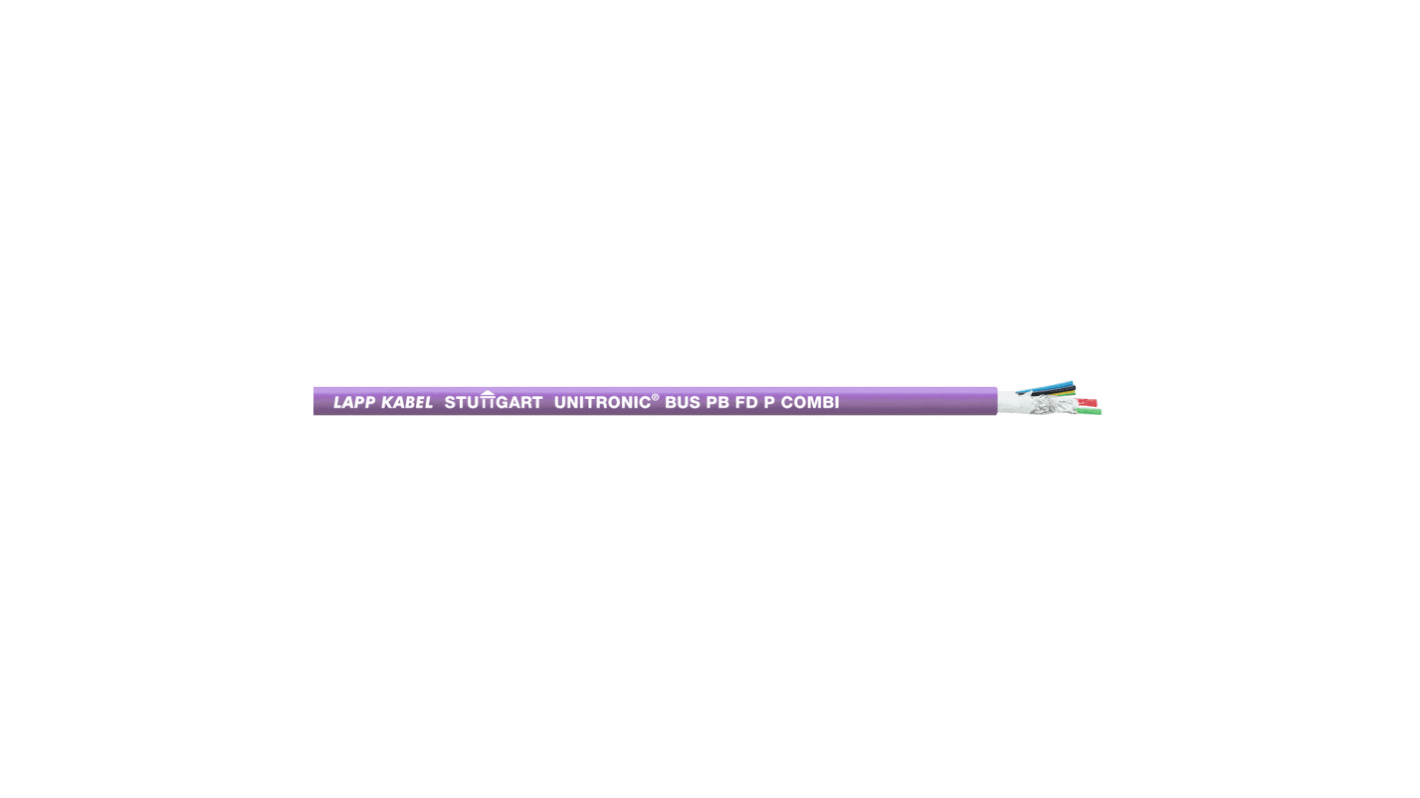

Lapp UNITRONIC BUS Control Cable, 5 Cores, 0.64 to 1 mm² CSA 17, Screened, 100 m, Purple Polyurethane Sheath
- RS Stock No.:
- 288-6612
- Mfr. Part No.:
- 2170227
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£936.54
(exc. VAT)
£1,123.85
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £936.54 | £9.365 |
*price indicative
- RS Stock No.:
- 288-6612
- Mfr. Part No.:
- 2170227
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | UNITRONIC BUS | |
| Product Type | Control Cable | |
| Sub Type | Bus Cable | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.64 to 1 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Purple | |
| Screened/Unscreened | Screened | |
| Cable Length | 100m | |
| Outside Diameter | 10.1 mm | |
| Voltage | 600 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Standards/Approvals | EAC Certified | |
| Maximum Operating Temperature | 80°C | |
| American Wire Gauge | 17 | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 | |
| Core Strands | 5 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series UNITRONIC BUS | ||
Product Type Control Cable | ||
Sub Type Bus Cable | ||
Number of Cores 5 | ||
Cross Sectional Area 0.64 to 1 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Purple | ||
Screened/Unscreened Screened | ||
Cable Length 100m | ||
Outside Diameter 10.1 mm | ||
Voltage 600 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Standards/Approvals EAC Certified | ||
Maximum Operating Temperature 80°C | ||
American Wire Gauge 17 | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 | ||
Core Strands 5 | ||
- COO (Country of Origin):
- IT
The Lapp field bus cable with 150 ohms nominal impedance. It is intended for high flexible applications in power chains. It has Polyurethane PUR sheath and is violet in colour.
Highly flexible
Flame retardant
Halogen free
