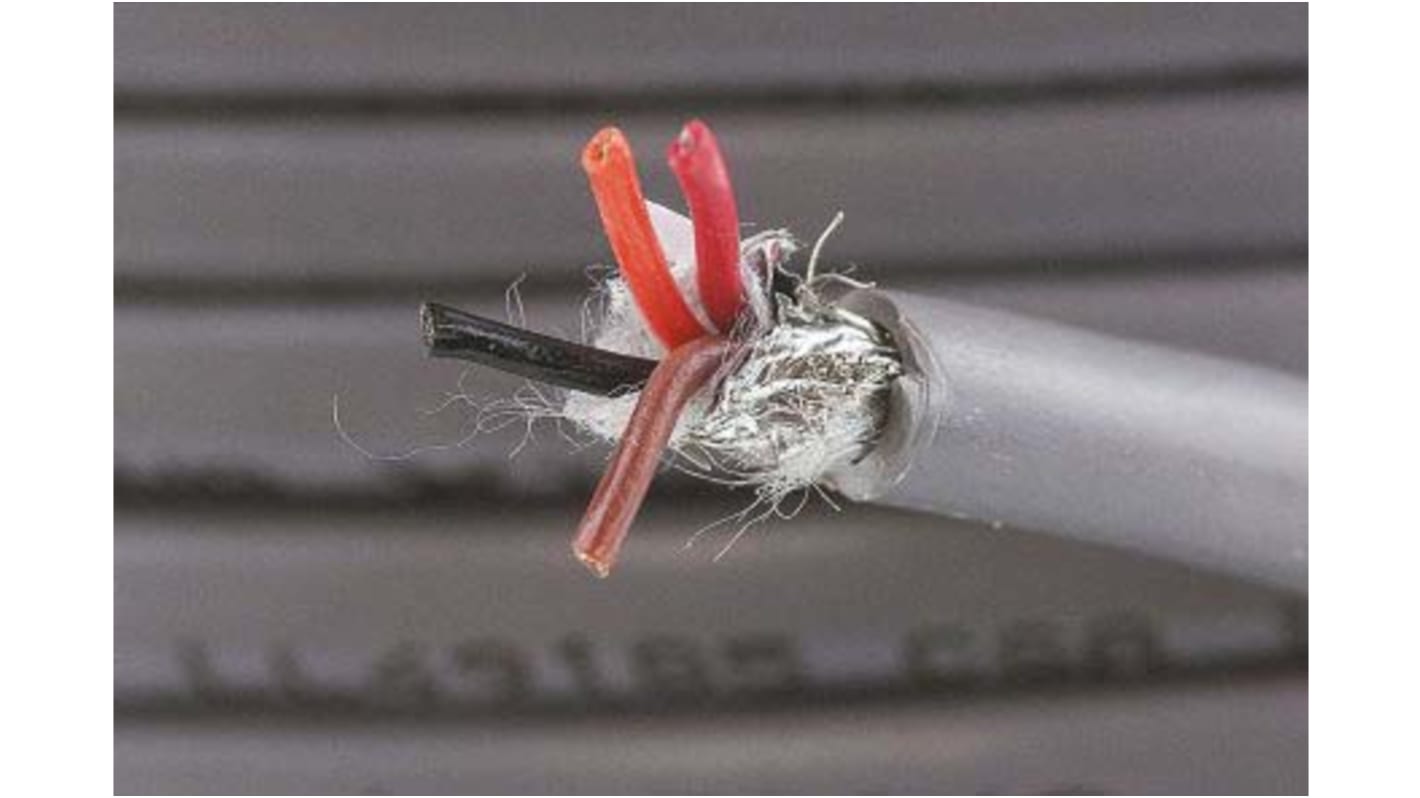

Alpha Wire Xtra-Guard 1 Multicore Industrial Cable, 4 Cores, 0.23 mm², Screened, 30m, Grey PVC Sheath, 24 AWG
- RS Stock No.:
- 269-4988
- Mfr. Part No.:
- 5114C SL005
- Brand:
- Alpha Wire
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£174.46
(exc. VAT)
£209.35
(inc. VAT)
- RS Stock No.:
- 269-4988
- Mfr. Part No.:
- 5114C SL005
- Brand:
- Alpha Wire
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Series | Xtra-Guard 1 | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.23 mm² | |
| Screened/Unscreened | Screened | |
| Length | 30m | |
| Sheath Colour | Grey | |
| American Wire Gauge | 24 AWG | |
| Outer Diameter | 5.16mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Standards Met | CE, CSA, UL | |
| Minimum Operating Temperature | -30°C | |
| Drain Wire | Yes | |
| Screen Type | Braid, Foil | |
| Maximum Operating Temperature | +80°C | |
| Core Strands | 7/0.20 mm | |
| Minimum Bend Radius | 10 x Diameter | |
| Conductor Material | Tinned Copper | |
| Voltage Rating | 300 V | |
| Conductor Resistance | 85.3 Ω/km | |
| Insulation Material | PVC | |
| Fire Behaviour | Flame Retardant | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Series Xtra-Guard 1 | ||
Number of Cores 4 | ||
Cross Sectional Area 0.23 mm² | ||
Screened/Unscreened Screened | ||
Length 30m | ||
Sheath Colour Grey | ||
American Wire Gauge 24 AWG | ||
Outer Diameter 5.16mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Standards Met CE, CSA, UL | ||
Minimum Operating Temperature -30°C | ||
Drain Wire Yes | ||
Screen Type Braid, Foil | ||
Maximum Operating Temperature +80°C | ||
Core Strands 7/0.20 mm | ||
Minimum Bend Radius 10 x Diameter | ||
Conductor Material Tinned Copper | ||
Voltage Rating 300 V | ||
Conductor Resistance 85.3 Ω/km | ||
Insulation Material PVC | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- US
XTRA-GUARD®1 foil and braid shielded multi-conductor cables
Alpha Wire Xtra Guard 1 - braided and foil shielded is a high performance industrial cable. The foil shield provides moderate EMI protection, especially at lower frequencies. A tinned copper drain wire makes grounding the cable easy.
Features and Benefits
High performance cable
Good water and chemical resistance
60°C Oil (Oil Res I)
Fast, easy stripping of insulation and jacket
Premium grade PVC insulation and jacket
UV resistant, UL SUN RES
Applications
High technology application in controlled environments
Medical electronics
Point of sale equipment
Computer peripherals
Industrial process control
Standards
IEC Flame ratings: IEC 60332-1 & -2
