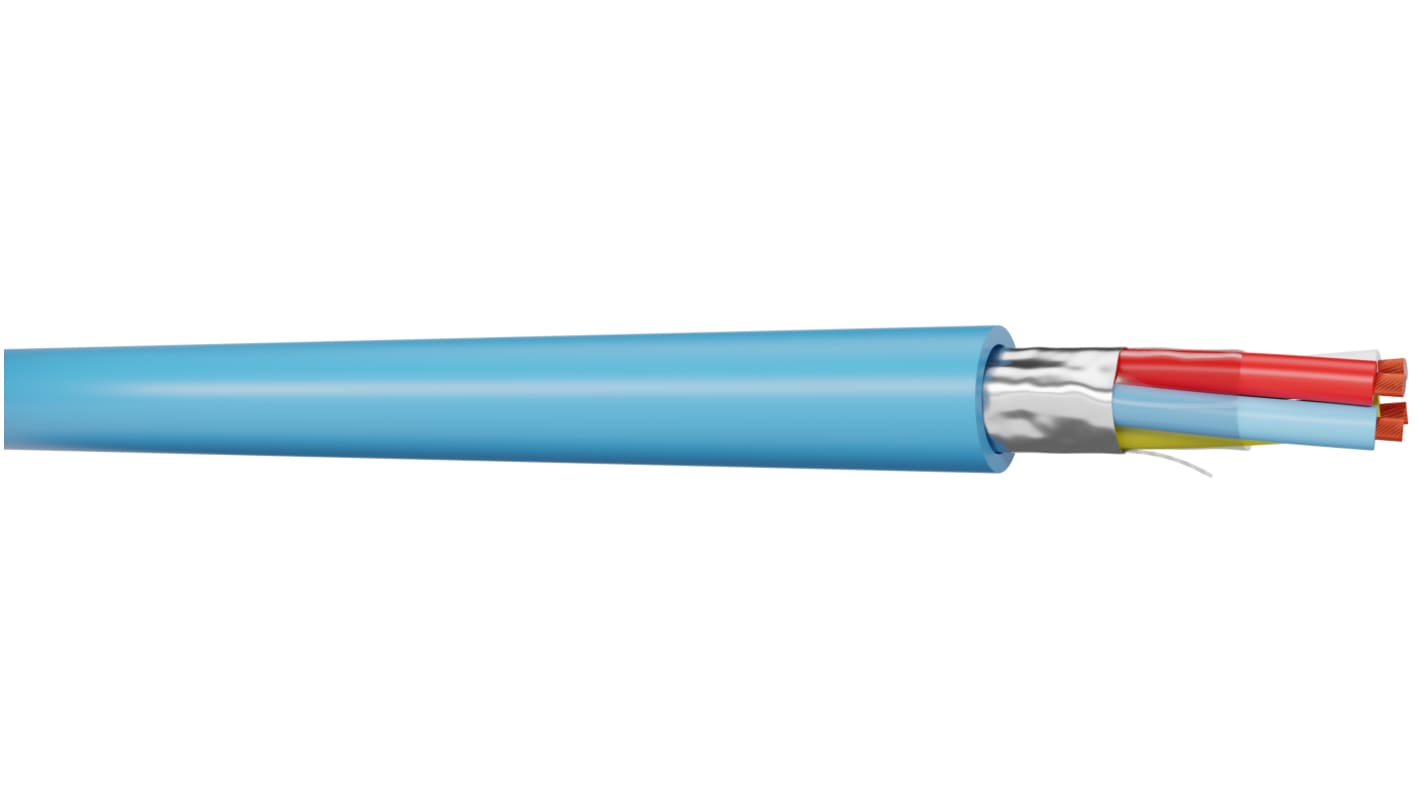

AXINDUS EGSF Control Cable, 1 Cores, 0.9mm², Screened, 100 m, Blue Polyvinyl Chloride Sheath
- RS Stock No.:
- 267-6559
- Mfr. Part No.:
- 01IQ09EGSFT3000
- Brand:
- AXINDUS
Subtotal (1 reel of 100 metres)*
£192.94
(exc. VAT)
£231.53
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £192.94 | £1.929 |
*price indicative
- RS Stock No.:
- 267-6559
- Mfr. Part No.:
- 01IQ09EGSFT3000
- Brand:
- AXINDUS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Series | EGSF | |
| Product Type | Control Cable | |
| Number of Cores | 1 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Blue | |
| Armoured | Yes | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 7.5mm | |
| Cable Length | 100m | |
| Voltage | 500V | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | NF M 87-202 | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.9mm² | |
| Fire Behaviour | IEC 60332-1, Flame Retardant NF C 32-070/C2 | |
| Select all | ||
|---|---|---|
Brand AXINDUS | ||
Series EGSF | ||
Product Type Control Cable | ||
Number of Cores 1 | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Blue | ||
Armoured Yes | ||
Screened/Unscreened Screened | ||
Outside Diameter 7.5mm | ||
Cable Length 100m | ||
Voltage 500V | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals NF M 87-202 | ||
Hazardous Area Certification No | ||
Cable CSA 0.9mm² | ||
Fire Behaviour IEC 60332-1, Flame Retardant NF C 32-070/C2 | ||
The CAE Grouped instrumentation cables are used for the transmission of analogue measurement signals in the papermaking, chemical and petrochemical industries.
Operating temperature is -15 °C to +80°C
Burning behaviour flame retardant NF C 32-070/C2 and IEC 60332-1
