- RS Stock No.:
- 252-5450
- Mfr. Part No.:
- CF5.05.12
- Brand:
- Igus
2 In stock - FREE next working day delivery available
Added
Price 1 Reel of 20 Metre(s)
£172.60
(exc. VAT)
£207.12
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £172.60 | £8.63 |
*price indicative |
- RS Stock No.:
- 252-5450
- Mfr. Part No.:
- CF5.05.12
- Brand:
- Igus
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

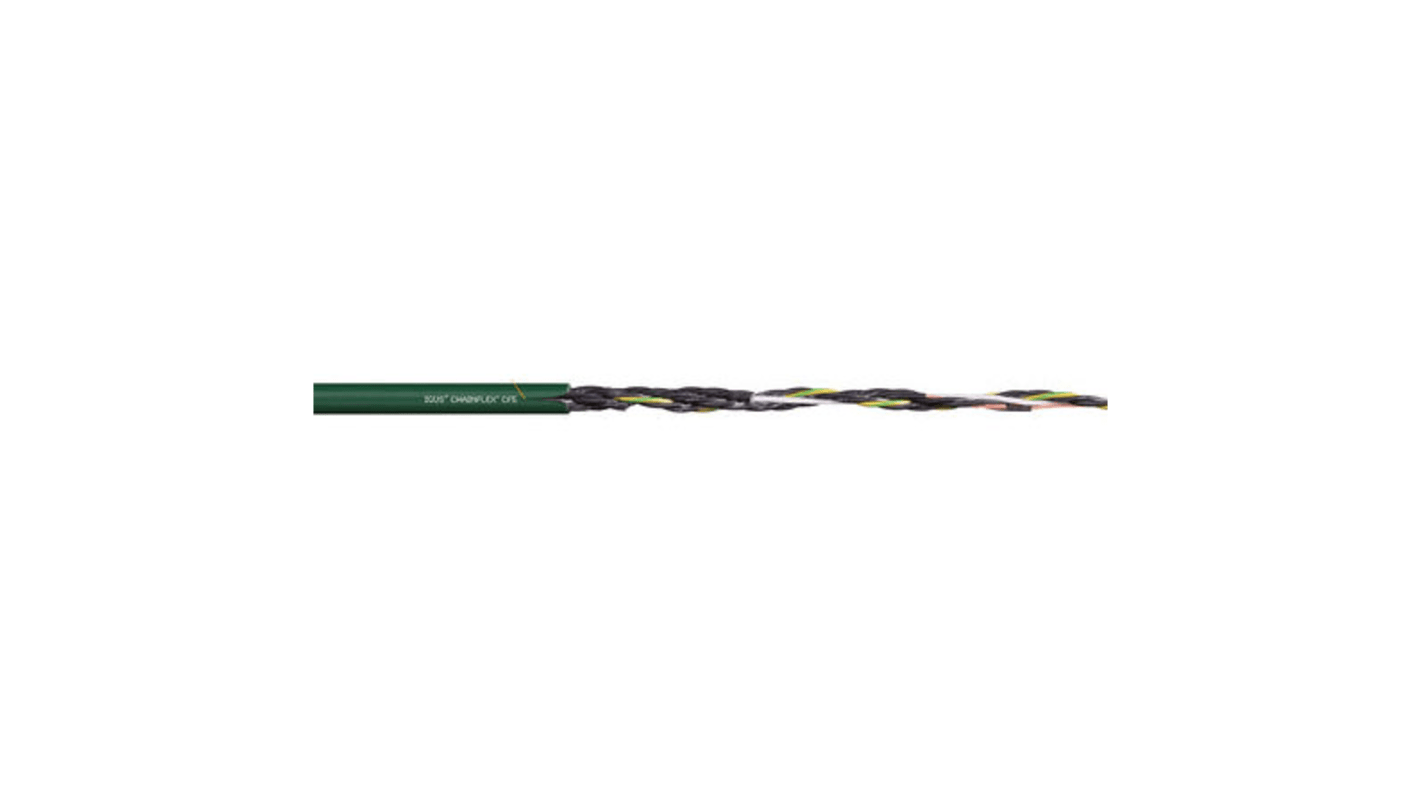

Cables for cable-holder chains
These special, ultra-flexible cables for cable-holder chains are designed to provide permanent support for many high speed flex movements
The conductors are gathered into harnesses
Assembled into cable strands around a pull-resistant central core
Strand pitch is very short, giving the cables a structure with a very low torsion factor
Conductor markings: black conductors, numbered in white, plus a green/yellow conductor
The screened cable features a flexible copper braid
Assembled into cable strands around a pull-resistant central core
Strand pitch is very short, giving the cables a structure with a very low torsion factor
Conductor markings: black conductors, numbered in white, plus a green/yellow conductor
The screened cable features a flexible copper braid
Features and Benefits
Approvals
VDE 0245 and UL 62
Specifications
Attribute | Value |
---|---|
Series | chainflex CF5 |
Number of Cores | 12 |
Cross Sectional Area | 0.5 mm² |
Screened/Unscreened | Unscreened |
Length | 20m |
Cable Shape | Multicore |
Sheath Colour | Green |
American Wire Gauge | 20 AWG |
Outer Diameter | 11.5mm |
Sheath Material | PVC |
Minimum Operating Temperature | -5°C |
Oil Resistant | Yes |
Armoured | No |
Current Rating | 8 A |
Insulation Material | PVC |
Conductor Resistance | 39 Ω/km |
Maximum Operating Temperature | +70°C |
Screen Type | Unscreened |
Earth Cable | Yes |
Voltage Rating | 300 V |
Conductor Material | Copper |
Minimum Bend Radius | 6.8 x D |
Fire Behaviour | Flame Retardant |
