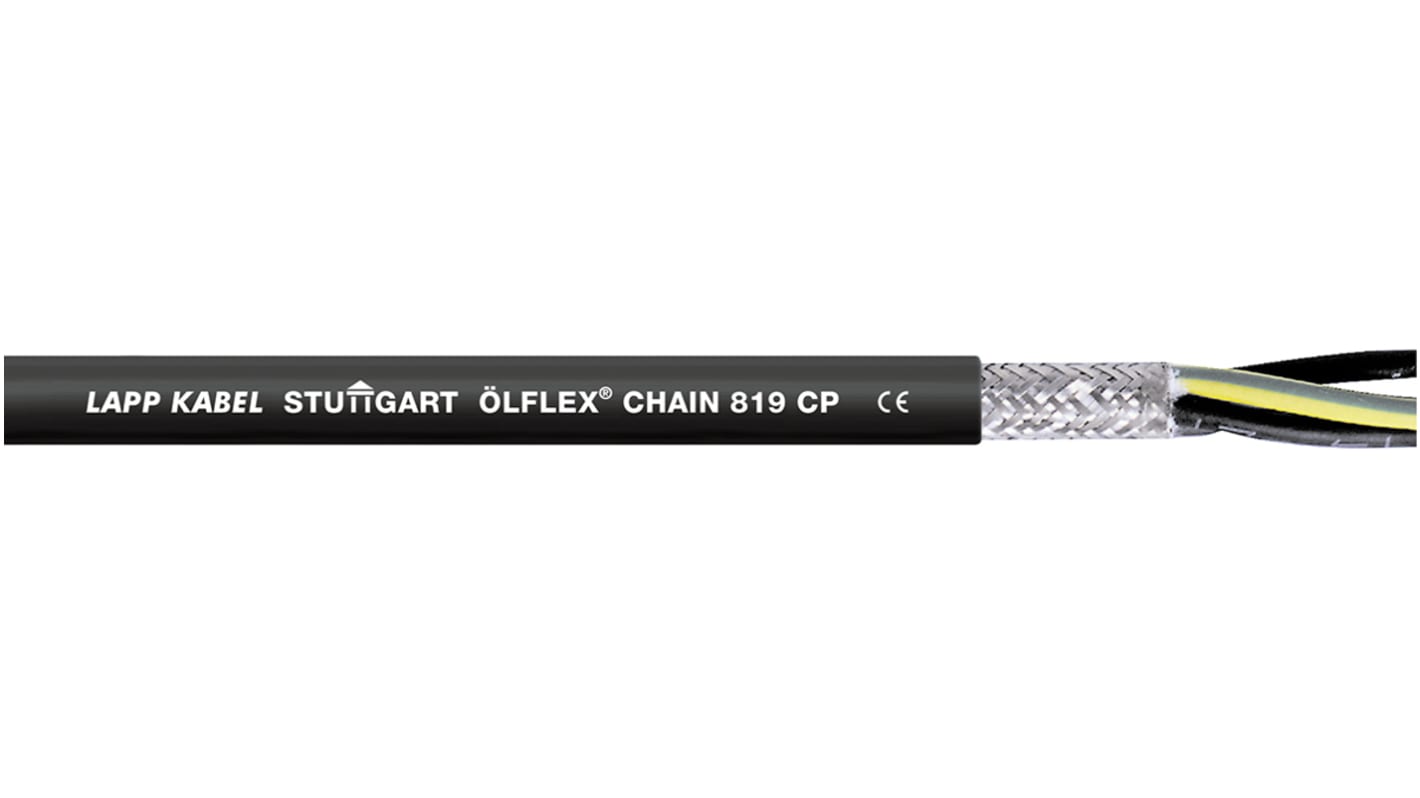

From Lapp, a range of industrial screened control cables from the Olflex Chain 819 CP Series. With a high degree of flexibility, these multicore cables are ideally suited for light to medium-duty power chain applications. Mechanically robust and highly oil-resistant, the Olflex 819 series of cables perform well in the most demanding environments.

The Olflex Chain 819 conductors are made up of fine wire copper strands with a PVC compound insulation. The cores are then further protected by an overall tinned copper braided screen. A robust LAPP PU-Special Blend outer sheath completes the construction.

• Mechanically robust multicore cable
• Highly oil resistant
• Good resistance to acids and alkalis
• UV Resistant
• EMC Compliant
• For use in dry, damp or wet interiors
• Black cores with white numbers in accordance with DIN EN 50334 and VDE 0295, class 5
• Basic Line Performance – Moderate travel lengths or acceleration
• UL/ cUL certified for North America

With their superb physical properties, the ÖLFLEX® Chain 819 multi-core cables are designed for use in flexible installations, such as power chain and moving machinery. These industrial cables are primarily used in industries where a higher level of protection is required. Some of the most common are

• Power Chains and moving machine parts
• Wiring of machines, tools, and devices
• Appliances
• Electrical connections and equipment
• Control cabinets
• Control and regulation circuits
• Linear automated movement
• EMC sensitive environments

Olflex cables should be used with accessories that match their capabilities, and as such Lapp provides a range of compliant cable glands. Cable glands from the MS-SC-M series are recommended to go with the Olflex Chain 819 range of multicore cable

• Part number 839-5331 is an M16 Cable Gland
• Part number 839-5340 is an M20 Cable Gland
• Part number 839-5343 is an M25 Cable Gland
• Part number 839-5347 is an M32 Cable Gland

For dependable signal delivery to your automated setup, choose this control cable from LAPP. Its copper conductors efficiently carry power for reliable connections every time. Thanks to its tin-plated copper braid, the lead is shielded against high EMI levels for clear, noise-free signals. The PUR sheath resists damage from flames and oil to withstand tough industrial settings. With a narrow 10mm outer diameter, this cable slips easily through tight spots.

• Flexible stranded cores for installation in busy cabinets
• Takes surge voltages up to 4kV, cutting the risk of damage from power faults
• Numbered conductors make it easy to identify connections during wiring

• Automotive industry
• HVAC systems
• Factory assembly lines

Yes, its UV-resistant PUR jacket stays strong in direct sunlight, so it's a safe bet for outdoor tasks. It also functions in ambient temperatures between -40°C and +80°C.

For suitable cable gland see part number 839-5340
