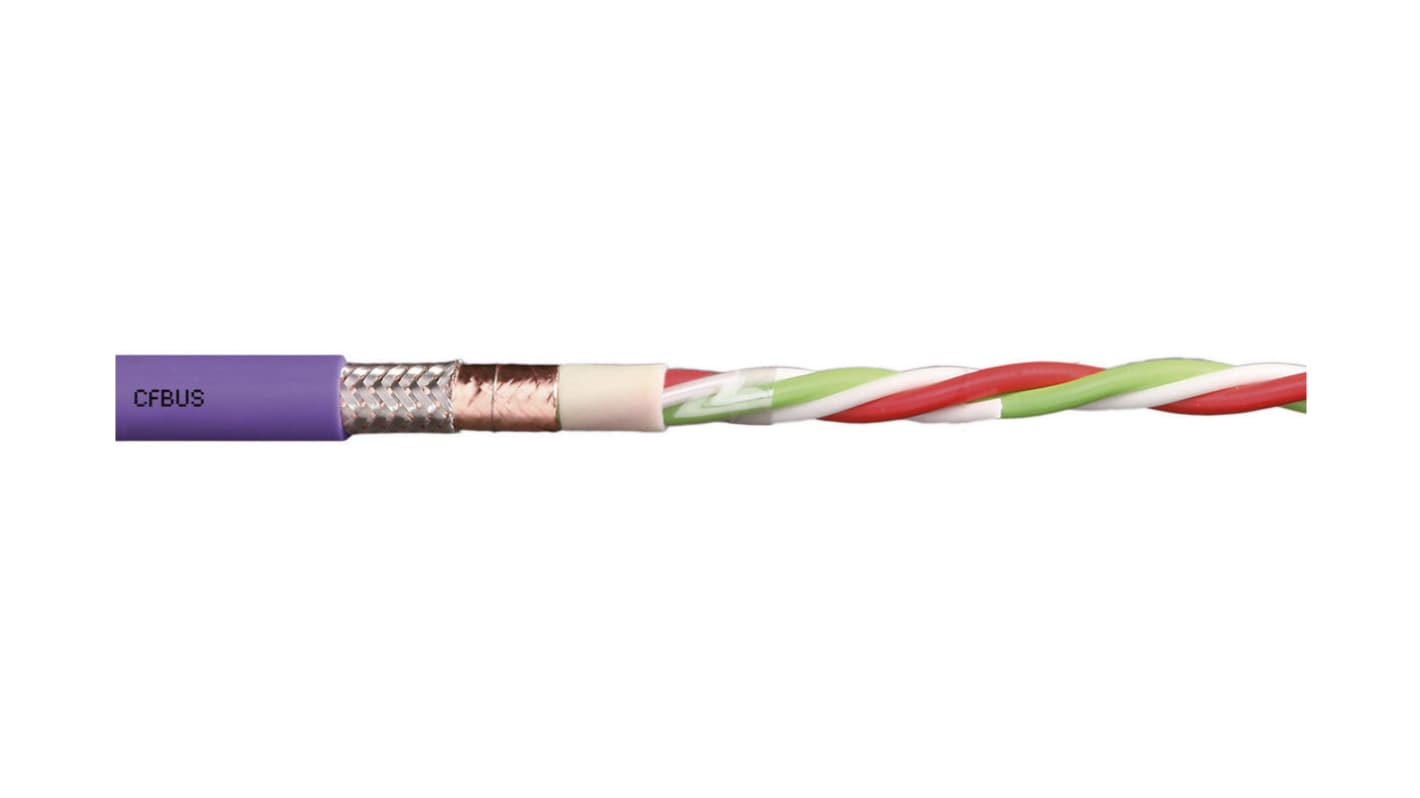

Igus chainflex CFBUS Data Cable, 4 Cores, 0.25 mm², Screened, 25m, Purple TPE Sheath, 24 AWG
- RS Stock No.:
- 185-4902
- Mfr. Part No.:
- CFBUS.020
- Brand:
- Igus
Available to back order for despatch 10/05/2024
Added
Price 1 Reel of 25 Metre(s)
£198.09
(exc. VAT)
£237.71
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £198.09 | £7.924 |
| *price indicative | ||
- RS Stock No.:
- 185-4902
- Mfr. Part No.:
- CFBUS.020
- Brand:
- Igus
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Outer jacket: TPE
Overall shield
Flame retardant
Hydrolysis and microbe-resistant
UV-resistant
Application
For extremely heavy duty applications
Almost unlimited resistance to oil, also with bio-oils
Indoor and outdoor applications without direct solar radiation
Unsupported travels and gliding applications of up to 400 m and more
Bus connection cable for storage and retrieval units, machining units/machine tools, quick handling, clean room, semiconductor insertion, indoor cranes, low-temperature applications
Overall shield
Flame retardant
Hydrolysis and microbe-resistant
UV-resistant
Application
For extremely heavy duty applications
Almost unlimited resistance to oil, also with bio-oils
Indoor and outdoor applications without direct solar radiation
Unsupported travels and gliding applications of up to 400 m and more
Bus connection cable for storage and retrieval units, machining units/machine tools, quick handling, clean room, semiconductor insertion, indoor cranes, low-temperature applications
Specifications
Attribute | Value |
|---|---|
| Series | chainflex CFBUS |
| Number of Cores | 4 |
| Cross Sectional Area | 0.25 mm² |
| Screened/Unscreened | Screened |
| Length | 25m |
| Sheath Colour | Purple |
| Cable Shape | Multicore |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 6.5mm |
| Sheath Material | TPE |
| Standards Met | CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 |
| Maximum Operating Temperature | +70°C |
| Screen Type | Tinned Copper Braid |
| Armoured | No |
| Earth Cable | No |
| Voltage Rating | 50 V |
| Conductor Material | Copper |
| Current Rating | 5 A |
| Insulation Material | TPE |
| Minimum Bend Radius | 5 x D |
| Conductor Resistance | 79 Ω/km |
| Oil Resistant | Yes |
| Fire Behaviour | Flame Retardant |
| Minimum Operating Temperature | -35°C |
