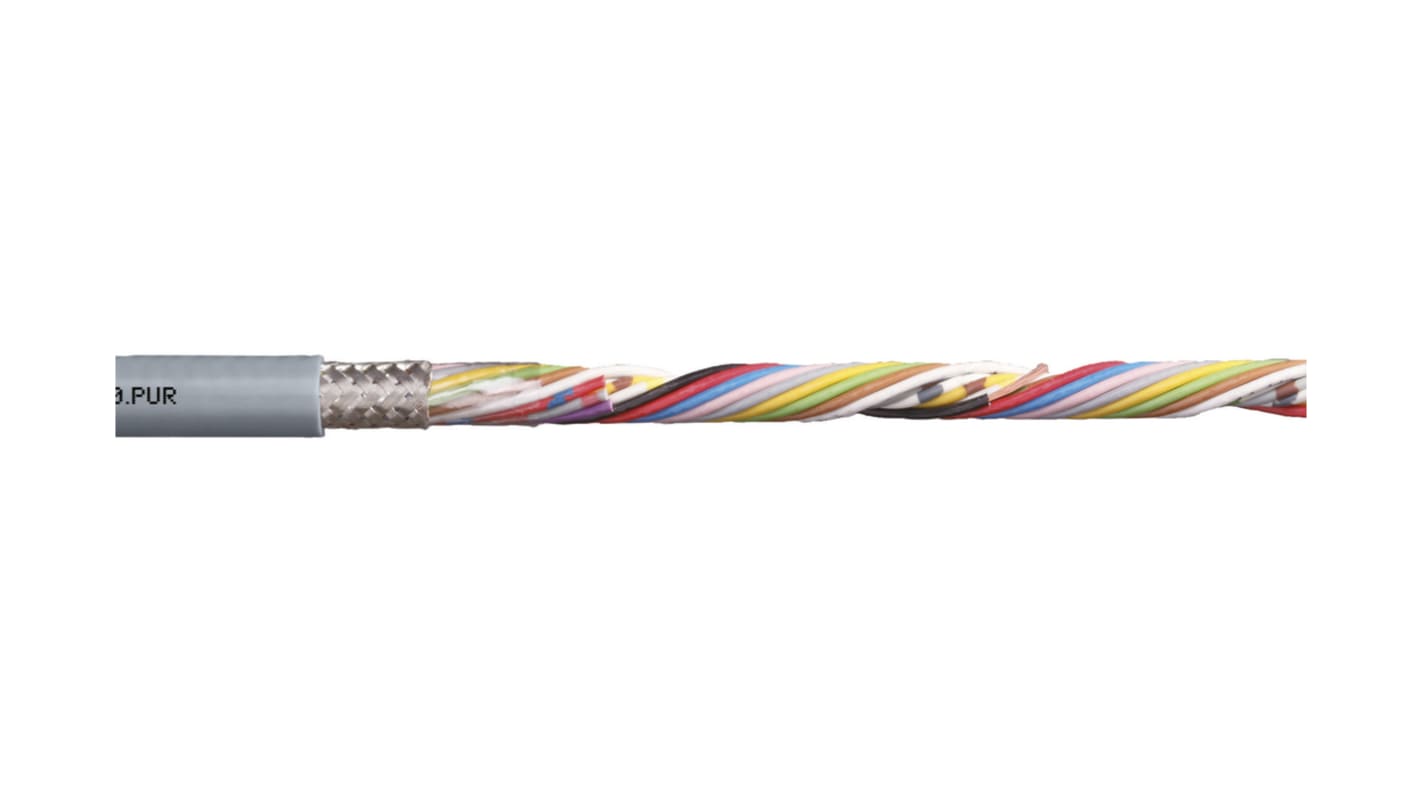

Igus chainflex CF240.PUR Data Cable, 14 Cores, 0.25 mm², Screened, 25m, Grey PUR Sheath, 24 AWG
- RS Stock No.:
- 185-4893
- Mfr. Part No.:
- CF240.PUR.02.14
- Brand:
- Igus
Subtotal (1 reel of 25 metres)*
£199.54
(exc. VAT)
£239.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £199.54 | £7.982 |
*price indicative
- RS Stock No.:
- 185-4893
- Mfr. Part No.:
- CF240.PUR.02.14
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Series | chainflex CF240.PUR | |
| Number of Cores | 14 | |
| Cross Sectional Area | 0.25 mm² | |
| American Wire Gauge | 24 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PUR | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Screened | |
| Armoured | No | |
| Screen Type | Tinned Copper Braid | |
| Outer Diameter | 8.5mm | |
| Minimum Bend Radius | 5 x D | |
| Length | 25m | |
| Voltage Rating | 300 V | |
| Current Rating | 5 A | |
| Standards Met | CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Flame Retardant | |
| Earth Cable | No | |
| Conductor Resistance | 79 Ω/km | |
| Oil Resistant | Yes | |
| Cable Shape | Multicore | |
| Insulation Material | TPE | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Igus | ||
Series chainflex CF240.PUR | ||
Number of Cores 14 | ||
Cross Sectional Area 0.25 mm² | ||
American Wire Gauge 24 AWG | ||
Conductor Material Copper | ||
Sheath Material PUR | ||
Sheath Colour Grey | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Screen Type Tinned Copper Braid | ||
Outer Diameter 8.5mm | ||
Minimum Bend Radius 5 x D | ||
Length 25m | ||
Voltage Rating 300 V | ||
Current Rating 5 A | ||
Standards Met CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Earth Cable No | ||
Conductor Resistance 79 Ω/km | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
Insulation Material TPE | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DE
Outer jacket: PUR
Overall shield
Notch-resistant
Hydrolysis and microbe-resistant
Flame retardant
Halogen-free
Silicone-free
PVC-free
UV-resistant
Application
For medium duty use
Almost unlimited resistance to oil
Indoor and outdoor applications with average sun radiation
Unsupported travel distances and up to 50 m for gliding applications
Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas
Overall shield
Notch-resistant
Hydrolysis and microbe-resistant
Flame retardant
Halogen-free
Silicone-free
PVC-free
UV-resistant
Application
For medium duty use
Almost unlimited resistance to oil
Indoor and outdoor applications with average sun radiation
Unsupported travel distances and up to 50 m for gliding applications
Machining centres / machine tools, storage and retrieval systems, packaging industry, handling, refrigerating areas
