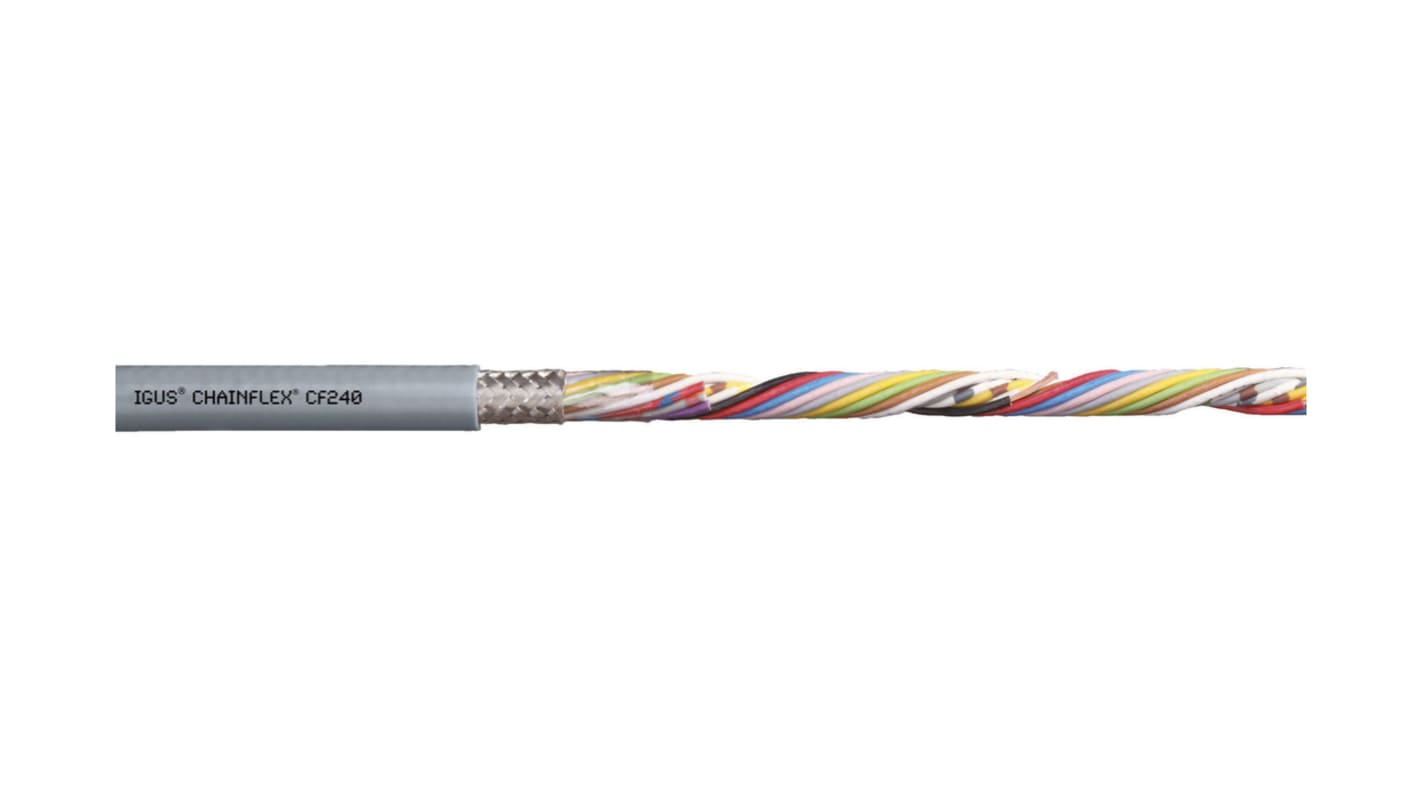

Igus chainflex CF240 Data Cable, 18 Cores, 0.34 mm², Screened, 25m, Grey PVC Sheath, 22 AWG

RS Stock No.:: 185-4885
Mfr. Part No.:: CF240.03.18
Brand:: Igus

Igus chainflex CF240 Data Cable, 18 Cores, 0.34 mm², Screened, 25m, Grey PVC Sheath, 22 AWG

3 In stock - FREE next working day delivery available

Price 1 Reel of 25 Metre(s)

£259.71

(exc. VAT)

£311.65

(inc. VAT)

Reel(s)	Per Reel	Per Metre*
1 +	£259.71	£10.388

*price indicative

RS Stock No.:: 185-4885
Mfr. Part No.:: CF240.03.18
Brand:: Igus

Datasheet CF240.03.18
Cable Selection Guide

Attribute	Value
Series	chainflex CF240
Number of Cores	18
Cross Sectional Area	0.34 mm²
Screened/Unscreened	Screened
Length	25m
Sheath Colour	Grey
Cable Shape	Multicore
American Wire Gauge	22 AWG
Outer Diameter	10mm
Sheath Material	PVC
Standards Met	CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1
Minimum Bend Radius	5 x D
Conductor Resistance	57 Ω/km
Armoured	No
Maximum Operating Temperature	+70°C
Screen Type	Tinned Copper Braid
Minimum Operating Temperature	-5°C
Fire Behaviour	Flame Retardant
Earth Cable	No
Voltage Rating	300 V
Conductor Material	Copper
Current Rating	7 A
Insulation Material	PVC
Oil Resistant	Yes
