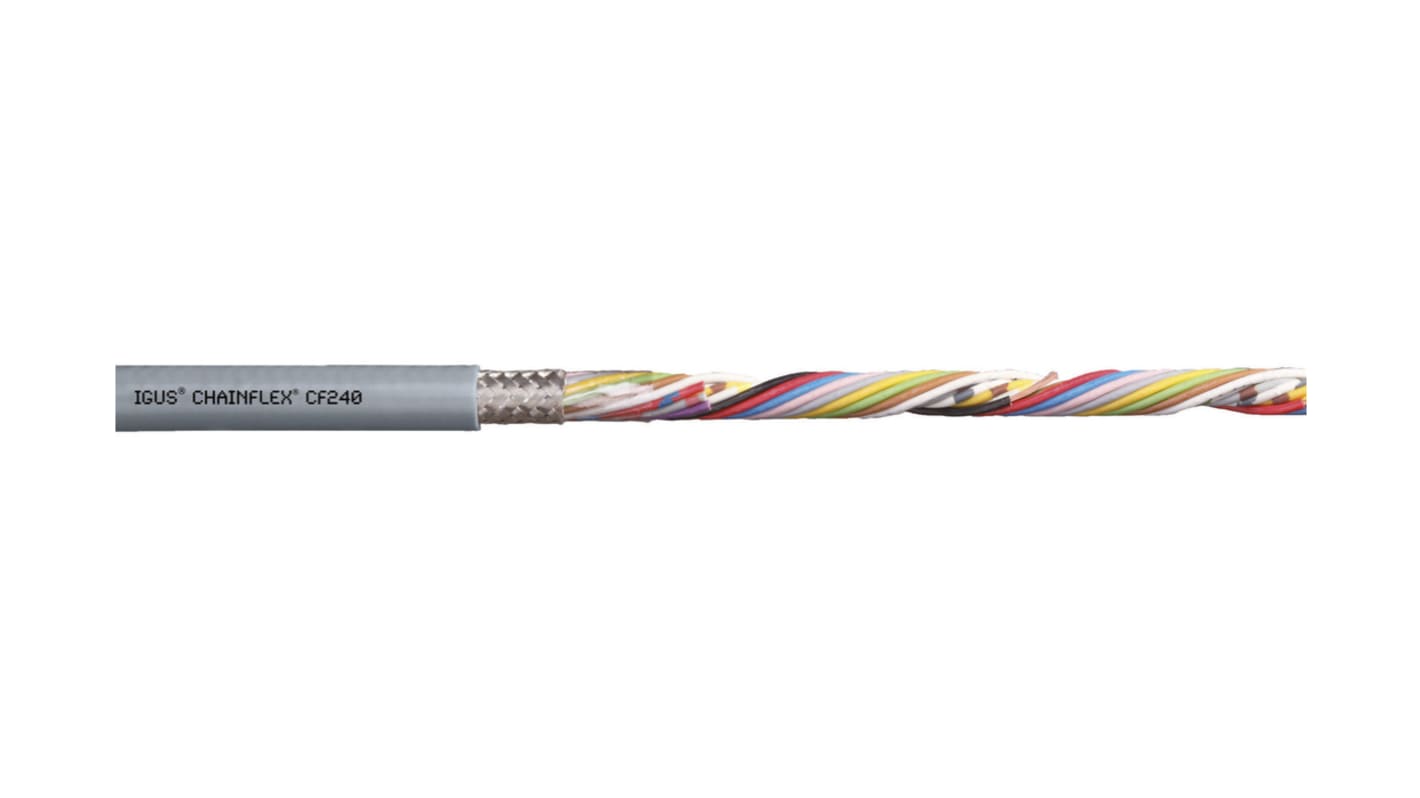

Igus chainflex CF240 Data Cable, 4 Cores, 0.14 mm², Screened, 25m, Grey PVC Sheath, 26 AWG

View all Control Cable

Subtotal (1 reel of 25 metres)*

£79.71

(exc. VAT)

£95.65

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 999,999,997 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£79.71£3.188

*price indicative

RS Stock No.:
185-4871
Mfr. Part No.:
CF240.01.04
Brand:
Igus
Find similar products by selecting one or more attributes.
Select all

Brand

Igus

Series

chainflex CF240

Number of Cores

4

Cross Sectional Area

0.14 mm²

American Wire Gauge

26 AWG

Conductor Material

Copper

Sheath Material

PVC

Sheath Colour

Grey

Screen Type

Tinned Copper Braid

Armoured

No

Screened/Unscreened

Screened

Minimum Bend Radius

5 x D

Length

25m

Outer Diameter

5mm

Voltage Rating

300 V

Current Rating

2.5 A

Standards Met

CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+70°C

Cable Shape

Multicore

Minimum Operating Temperature

-5°C

Insulation Material

PVC

Earth Cable

No

Oil Resistant

Yes

Conductor Resistance

138 Ω/km

COO (Country of Origin):
DE
Outer jacket: PVC
Overall shield
Flame retardant
Silicone-free
Application
For medium duty use
Light oil influence
Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Unsupported travel distances and up to 50 m for gliding applications
Storage and retrieval units for high-bay warehouses, machining units/packaging machines, handling, indoor cranes
