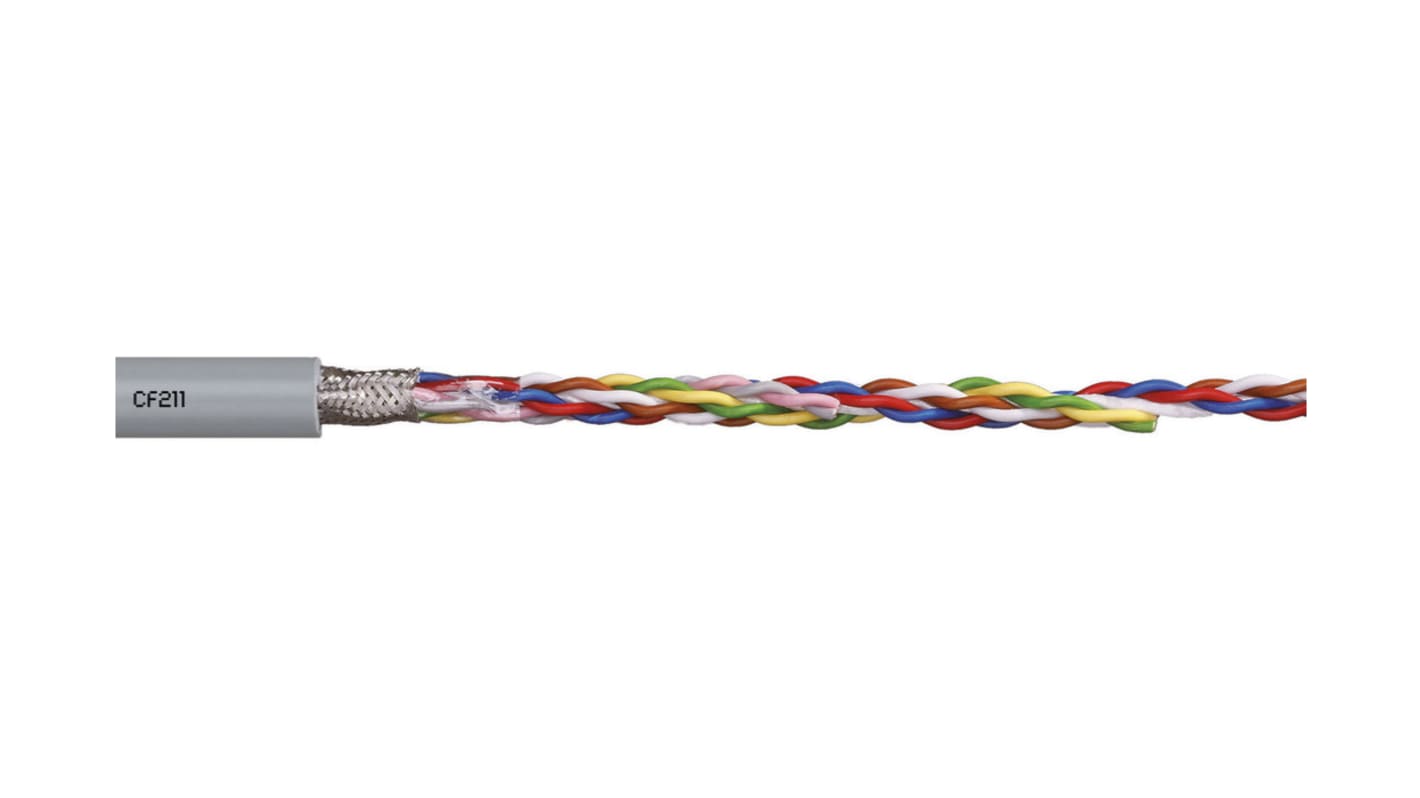

Igus chainflex CF211 Data Cable, 8 Cores, 0.5 mm², Screened, 25m, Grey PVC Sheath, 20 AWG
- RS Stock No.:
- 185-4849
- Mfr. Part No.:
- CF211.05.04.02
- Brand:
- Igus
Subtotal (1 reel of 25 metres)*
£227.04
(exc. VAT)
£272.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £227.04 | £9.082 |
*price indicative
- RS Stock No.:
- 185-4849
- Mfr. Part No.:
- CF211.05.04.02
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Series | chainflex CF211 | |
| Number of Cores | 8 | |
| Cross Sectional Area | 0.5 mm² | |
| American Wire Gauge | 20 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Tinned Copper Braid | |
| Armoured | No | |
| Screened/Unscreened | Screened | |
| Length | 25m | |
| Minimum Bend Radius | 4 x D | |
| Outer Diameter | 9.5mm | |
| Voltage Rating | 300 V | |
| Current Rating | 10 A | |
| Standards Met | CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | |
| Maximum Operating Temperature | +70°C | |
| Fire Behaviour | Flame Retardant | |
| Earth Cable | No | |
| Conductor Resistance | 39 Ω/km | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -5°C | |
| Oil Resistant | Yes | |
| Cable Shape | Twisted Pair | |
Select all | ||
|---|---|---|
Brand Igus | ||
Series chainflex CF211 | ||
Number of Cores 8 | ||
Cross Sectional Area 0.5 mm² | ||
American Wire Gauge 20 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Tinned Copper Braid | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Length 25m | ||
Minimum Bend Radius 4 x D | ||
Outer Diameter 9.5mm | ||
Voltage Rating 300 V | ||
Current Rating 10 A | ||
Standards Met CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Earth Cable No | ||
Conductor Resistance 39 Ω/km | ||
Insulation Material PVC | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant Yes | ||
Cable Shape Twisted Pair | ||
- COO (Country of Origin):
- DE
Outer jacket: PVC
Flame retardant
Silicone-free
Silicone-free
Application
For heavy duty applications
Light oil influence
Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Unsupported travel distances and up to 100 m for gliding applications
Storage and retrieval units for high-bay warehouses, machining units/packaging machines, handling, indoor cranes
Flame retardant
Silicone-free
Silicone-free
Application
For heavy duty applications
Light oil influence
Preferably indoor applications, but also outdoor ones at temperatures > 5 °C
Unsupported travel distances and up to 100 m for gliding applications
Storage and retrieval units for high-bay warehouses, machining units/packaging machines, handling, indoor cranes
