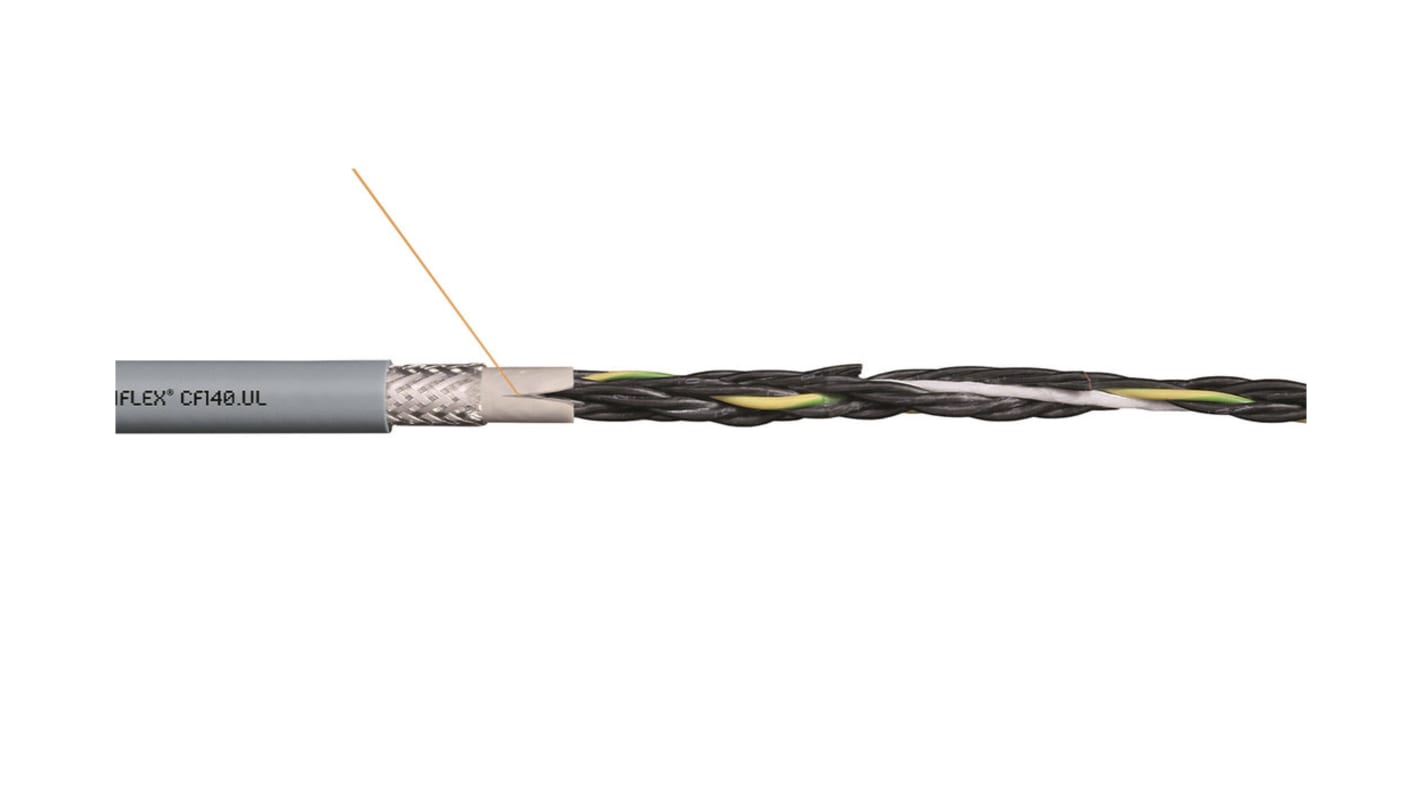

Igus chainflex CF140.UL Control Cable, 4 Cores, 2.5 mm², Screened, 25m, Grey PVC Sheath, 14 AWG
- RS Stock No.:
- 185-4837
- Mfr. Part No.:
- CF140.25.04.UL
- Brand:
- Igus
Subtotal (1 reel of 25 metres)*
£287.82
(exc. VAT)
£345.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £287.82 | £11.513 |
*price indicative
- RS Stock No.:
- 185-4837
- Mfr. Part No.:
- CF140.25.04.UL
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Igus | |
| Series | chainflex CF140.UL | |
| Number of Cores | 4 | |
| Cross Sectional Area | 2.5 mm² | |
| American Wire Gauge | 14 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Armoured | No | |
| Screened/Unscreened | Screened | |
| Screen Type | Tinned Copper Braid | |
| Minimum Bend Radius | 4 x D | |
| Outer Diameter | 11.5mm | |
| Length | 25m | |
| Voltage Rating | 300/500 V | |
| Current Rating | 30 A | |
| Standards Met | CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +70°C | |
| Earth Cable | Yes | |
| Oil Resistant | No | |
| Minimum Operating Temperature | -5°C | |
| Conductor Resistance | 8 Ω/km | |
| Cable Shape | Multicore | |
| Insulation Material | TPE | |
Select all | ||
|---|---|---|
Brand Igus | ||
Series chainflex CF140.UL | ||
Number of Cores 4 | ||
Cross Sectional Area 2.5 mm² | ||
American Wire Gauge 14 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Armoured No | ||
Screened/Unscreened Screened | ||
Screen Type Tinned Copper Braid | ||
Minimum Bend Radius 4 x D | ||
Outer Diameter 11.5mm | ||
Length 25m | ||
Voltage Rating 300/500 V | ||
Current Rating 30 A | ||
Standards Met CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1 | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +70°C | ||
Earth Cable Yes | ||
Oil Resistant No | ||
Minimum Operating Temperature -5°C | ||
Conductor Resistance 8 Ω/km | ||
Cable Shape Multicore | ||
Insulation Material TPE | ||
- COO (Country of Origin):
- DE
Outer jacket: PVC
Overall shield
Flame retardant
Silicone-free
Oil resistance: No oil resistance
CFRIP®
Application
For medium duty use
Without influence of oil
Preferably indoor applications
Unsupported travel distances and up to 50 m for gliding applications
Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
Overall shield
Flame retardant
Silicone-free
Oil resistance: No oil resistance
CFRIP®
Application
For medium duty use
Without influence of oil
Preferably indoor applications
Unsupported travel distances and up to 50 m for gliding applications
Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
