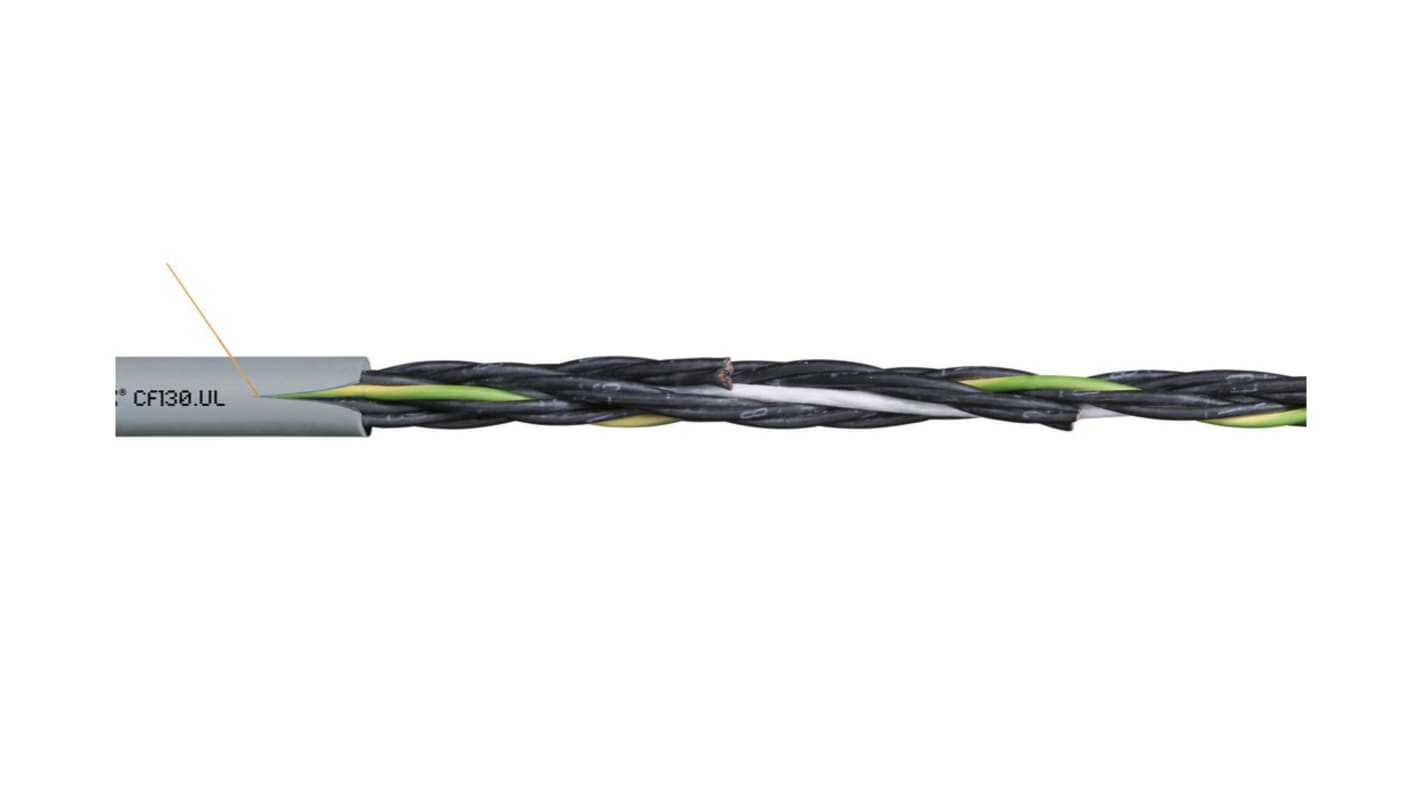

Igus chainflex CF130.UL Control Cable, 2 Cores, 1 mm², Unscreened, 50m, Grey PVC Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£94.85

(exc. VAT)

£113.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 3 unit(s) shipping from 04 September 2025
  • Plus 999,999,994 unit(s) shipping from 25 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£94.85£1.897

*price indicative

RS Stock No.:
185-4818
Mfr. Part No.:
CF130.10.02.UL
Brand:
Igus
Find similar products by selecting one or more attributes.
Select all

Brand

Igus

Series

chainflex CF130.UL

Number of Cores

2

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Copper

Sheath Material

PVC

Sheath Colour

Grey

Armoured

No

Screen Type

Unscreened

Screened/Unscreened

Unscreened

Outer Diameter

6mm

Minimum Bend Radius

4 x D

Length

50m

Voltage Rating

300 V

Current Rating

17 A

Standards Met

CE, CEI 20-35, cRUus, CSA, CTP, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+70°C

Insulation Material

TPE

Minimum Operating Temperature

-5°C

Cable Shape

Multicore

Earth Cable

No

Oil Resistant

No

Conductor Resistance

19.5 Ω/km
