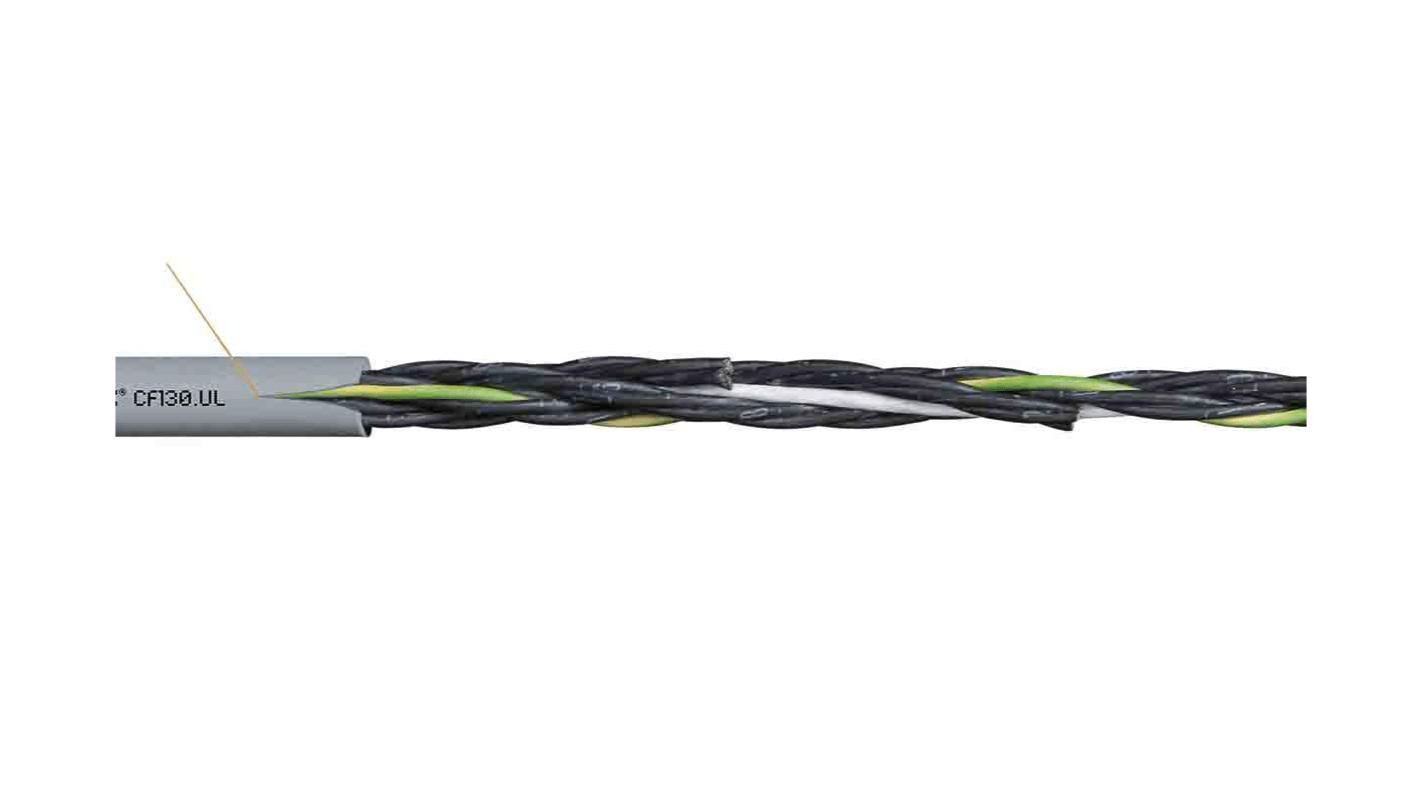

Igus chainflex CF130.UL Control Cable, 5 Cores, 0.75 mm², Unscreened, 10m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 185-4813
- Mfr. Part No.:
- CF130.07.05.UL
- Brand:
- Igus
Subtotal (1 reel of 50 metres)*
£138.05
(exc. VAT)
£165.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £138.05 | £2.761 |
*price indicative
- RS Stock No.:
- 185-4813
- Mfr. Part No.:
- CF130.07.05.UL
- Brand:
- Igus
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Igus | |
Series | chainflex CF130.UL | |
Number of Cores | 5 | |
Cross Sectional Area | 0.75 mm² | |
American Wire Gauge | 18 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screen Type | Unscreened | |
Screened/Unscreened | Unscreened | |
Armoured | No | |
Outer Diameter | 7mm | |
Minimum Bend Radius | 7.5 x D | |
Length | 10m | |
Voltage Rating | 300/500 V | |
Current Rating | 14 A | |
Maximum Operating Temperature | +70°C | |
Fire Behaviour | Flame Retardant | |
Insulation Material | TPE | |
Conductor Resistance | 26 Ω/km | |
Earth Cable | Yes | |
Cable Shape | Multicore | |
Minimum Operating Temperature | -5°C | |
Oil Resistant | No | |
Select all | ||
---|---|---|
Brand Igus | ||
Series chainflex CF130.UL | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Armoured No | ||
Outer Diameter 7mm | ||
Minimum Bend Radius 7.5 x D | ||
Length 10m | ||
Voltage Rating 300/500 V | ||
Current Rating 14 A | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Insulation Material TPE | ||
Conductor Resistance 26 Ω/km | ||
Earth Cable Yes | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant No | ||
- COO (Country of Origin):
- DE
Various jacket materials are available. The product range includes everything from control cables, servo cables, motor cables and robot cables to bus cables, data cables, encoder cables and fibre optic cables. The chainflex® cables for energy chains work flawlessly over long periods even with many cycles, high speeds and accelerations as well as very extreme ambient conditions.
Requirements: For medium duty applications
Outer jacket: PVC
Flame retardant
Silicone-free
Oil resistance: No oil resistance
Applications
For medium duty use
Without influence of oil
Preferably indoor applications
Unsupported travel distances and up to 50 m for gliding applications
Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
Outer jacket: PVC
Flame retardant
Silicone-free
Oil resistance: No oil resistance
Applications
For medium duty use
Without influence of oil
Preferably indoor applications
Unsupported travel distances and up to 50 m for gliding applications
Wood/stone processing, packaging industry, supply systems, handling, adjusting equipment
