Belden 5GB Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 100m, Grey PVC Sheath
- RS Stock No.:
- 176-2400
- Mfr. Part No.:
- 5GB-B100
- Brand:
- Belden
Subtotal (1 reel of 100 metres)*
£132.38
(exc. VAT)
£158.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £132.38 | £1.324 |
*price indicative
- RS Stock No.:
- 176-2400
- Mfr. Part No.:
- 5GB-B100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 5GB | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.75 mm² | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Control Cable Type | YY | |
| Screened/Unscreened | Unscreened | |
| Outer Diameter | 6.5mm | |
| Length | 100m | |
| Minimum Bend Radius | 10 x 6.5 (Occasional), 4 x 6.5 (Fixed) | |
| Voltage Rating | 300 V, 500 V | |
| Standards Met | CE, REACH, RoHS | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Flame Retardant | |
| Earth Cable | Yes | |
| Insulation Material | PVC | |
| Oil Resistant | Yes | |
| Minimum Operating Temperature | -30°C | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 5GB | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Outer Diameter 6.5mm | ||
Length 100m | ||
Minimum Bend Radius 10 x 6.5 (Occasional), 4 x 6.5 (Fixed) | ||
Voltage Rating 300 V, 500 V | ||
Standards Met CE, REACH, RoHS | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Earth Cable Yes | ||
Insulation Material PVC | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -30°C | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- CN

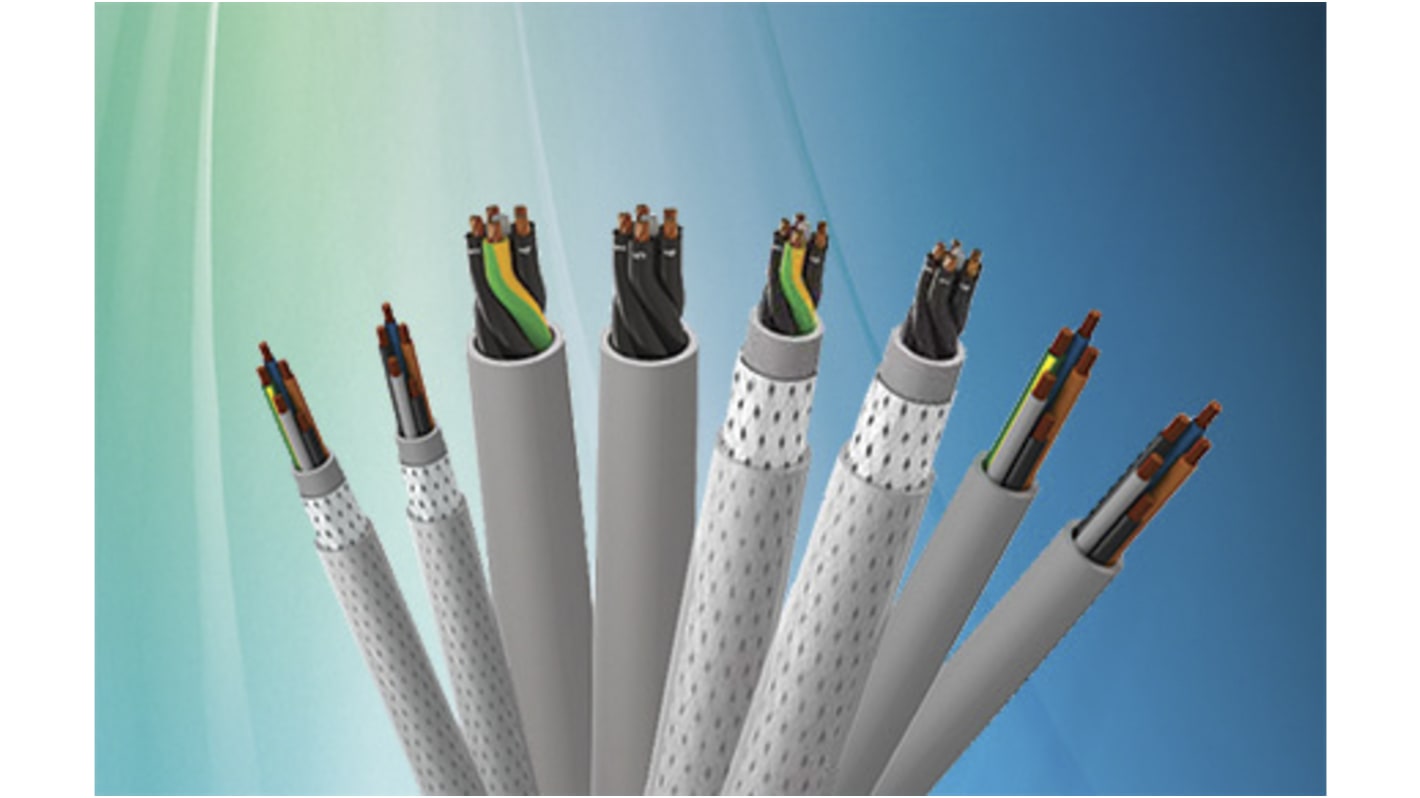

Belden Control Cable, YY Type, 100m Length - MachFlex Series - 5GB-B100
Use this high-performance control cable from Belden to effectively transmit signals to your devices. It has a PVC protective covering that's both durable and fluid resistant, making it appropriate for use in demanding conditions. As the cable is unscreened, it's a flexible option that can be installed around corners without loss of performance. An outer diameter of 6.5mm means it takes up minimal space in your electrical conduit.
Features & Benefits
• Broad operating temperature range of -30°C to +80°C for use in harsh conditions
• Tinned copper conductors for reliable signal transmission and high conductivity
• Earth wire protects your equipment from voltage surges
• Tinned copper conductors for reliable signal transmission and high conductivity
• Earth wire protects your equipment from voltage surges
Applications
• Precision control sensors
• Temperature controllers
• Automotive industries
• Temperature controllers
• Automotive industries
How far can I run this cable without losing signal?
For reliability and convenience, you can run this cable up to 100m without experiencing any reduction in signal strength.
