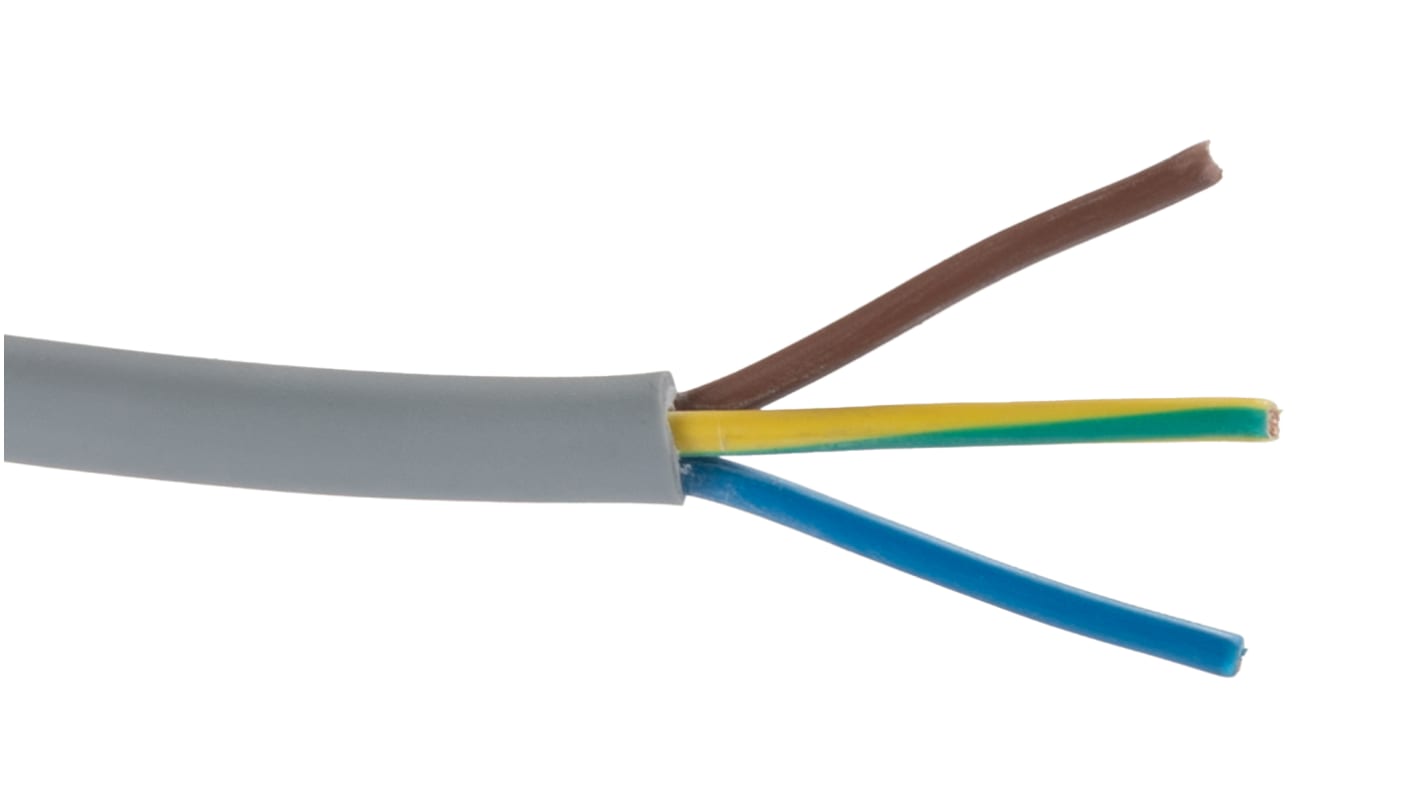

Belden C3GD Control Cable, 3 Cores, 1.5 mm², YY, Unscreened, 50m, Grey PVC Sheath
- RS Stock No.:
- 176-2363
- Mfr. Part No.:
- C3GD-BC50
- Brand:
- Belden
Subtotal (1 reel of 50 metres)*
£84.18
(exc. VAT)
£101.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £84.18 | £1.684 |
*price indicative
- RS Stock No.:
- 176-2363
- Mfr. Part No.:
- C3GD-BC50
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | C3GD | |
Number of Cores | 3 | |
Cross Sectional Area | 1.5 mm² | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | YY | |
Screened/Unscreened | Unscreened | |
Length | 50m | |
Outer Diameter | 6.6mm | |
Minimum Bend Radius | 10 x 6.6 (Occasional), 4 x 6.6 (Fixed) | |
Voltage Rating | 300 V, 500 V | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Cable Shape | Multicore | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -30°C | |
Earth Cable | Yes | |
Insulation Material | PVC | |
Select all | ||
---|---|---|
Brand Belden | ||
Series C3GD | ||
Number of Cores 3 | ||
Cross Sectional Area 1.5 mm² | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Outer Diameter 6.6mm | ||
Minimum Bend Radius 10 x 6.6 (Occasional), 4 x 6.6 (Fixed) | ||
Voltage Rating 300 V, 500 V | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Cable Shape Multicore | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -30°C | ||
Earth Cable Yes | ||
Insulation Material PVC | ||
- COO (Country of Origin):
- CN
Designed for applications which are installed in occasional flexing and fixed locations. Cable applicationsinclude precision controlsensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more.
