Belden 12GB Control Cable, 12 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath
- RS Stock No.:
- 176-2313
- Mfr. Part No.:
- 12GB-BC50
- Brand:
- Belden
Subtotal (1 reel of 50 metres)*
£163.09
(exc. VAT)
£195.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 28 November 2025
- Plus 7 unit(s) shipping from 09 January 2026
- Plus 5 unit(s) shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £163.09 | £3.262 |
*price indicative
- RS Stock No.:
- 176-2313
- Mfr. Part No.:
- 12GB-BC50
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 12GB | |
| Number of Cores | 12 | |
| Cross Sectional Area | 0.75 mm² | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Control Cable Type | YY | |
| Screened/Unscreened | Unscreened | |
| Length | 50m | |
| Minimum Bend Radius | 10 x 9.6 (Occasional), 4 x 9.6 (Fixed) | |
| Outer Diameter | 9.6mm | |
| Voltage Rating | 300 V, 500 V | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +80°C | |
| Oil Resistant | Yes | |
| Insulation Material | PVC | |
| Cable Shape | Multicore | |
| Earth Cable | Yes | |
| Minimum Operating Temperature | -30°C | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 12GB | ||
Number of Cores 12 | ||
Cross Sectional Area 0.75 mm² | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Minimum Bend Radius 10 x 9.6 (Occasional), 4 x 9.6 (Fixed) | ||
Outer Diameter 9.6mm | ||
Voltage Rating 300 V, 500 V | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +80°C | ||
Oil Resistant Yes | ||
Insulation Material PVC | ||
Cable Shape Multicore | ||
Earth Cable Yes | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- CN

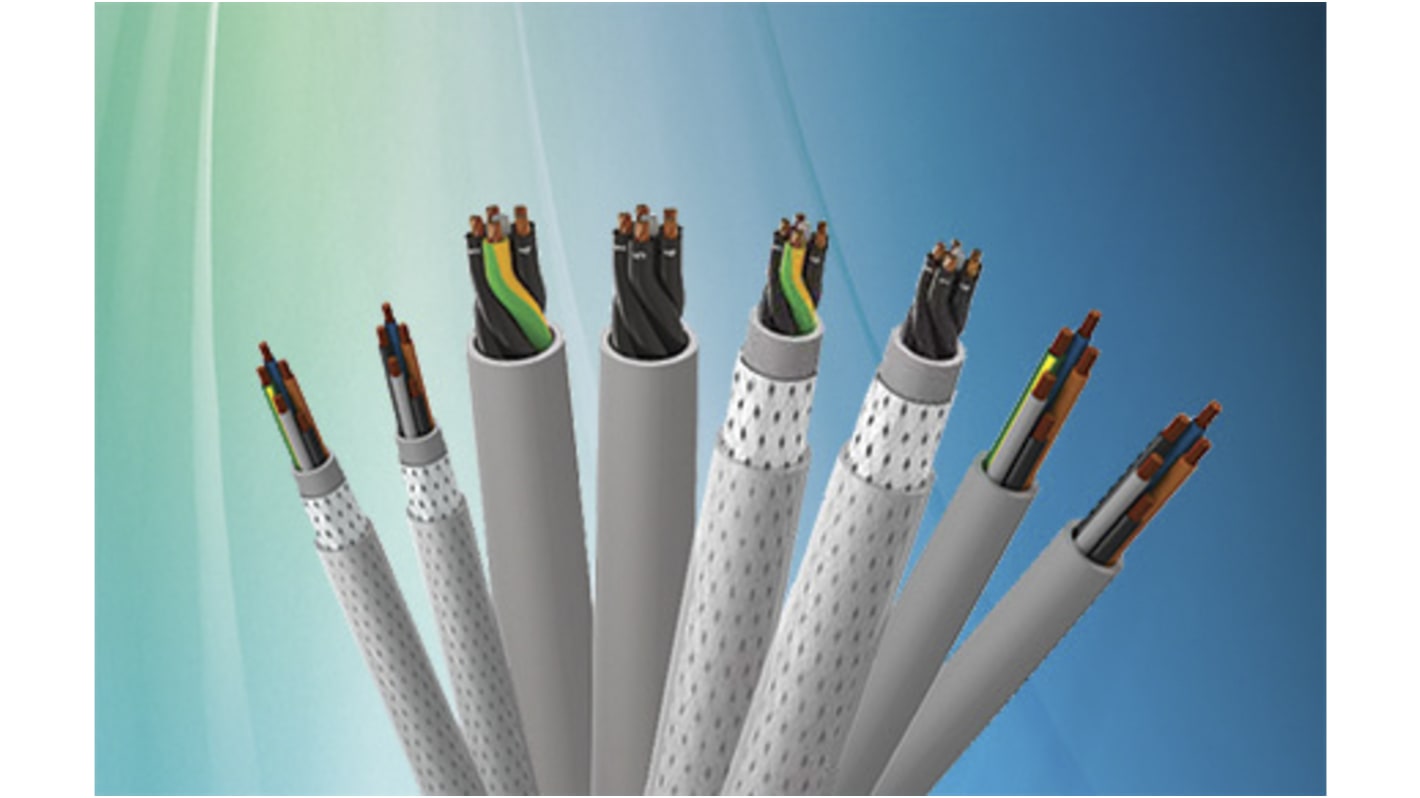

Belden Control Cable, Multicore, 0.75 mm² CSA - MachFlex Series - 12GB-BC50
This control cable from Belden combines physical robustness with a compact size to help you design small yet reliable automated systems. As it transfers data, signals and power in a single unit, it's a convenient option. The robust PVC jacket is durable as it resists corrosion and oil, while the cable is flame-retardant to increase workplace safety.
Features & Benefits
• Suitable for extreme industrial conditions, thanks to a fixed installation operating temperature range between -30°C and +80°C
• Resists the weathering effects of UV light for prolonged outdoor use
• Reel length of 50m for long runs or to cut down to size for multiple jobs
• Resists the weathering effects of UV light for prolonged outdoor use
• Reel length of 50m for long runs or to cut down to size for multiple jobs
Applications
• Control panels
• Machine cutting tools
• Motor speed control
• Temperature controllers
• Machine cutting tools
• Motor speed control
• Temperature controllers
Can I use this cable in mobile applications?
Yes, the durability of the component's PVC insulation material means it's able to withstand occasional movement.
