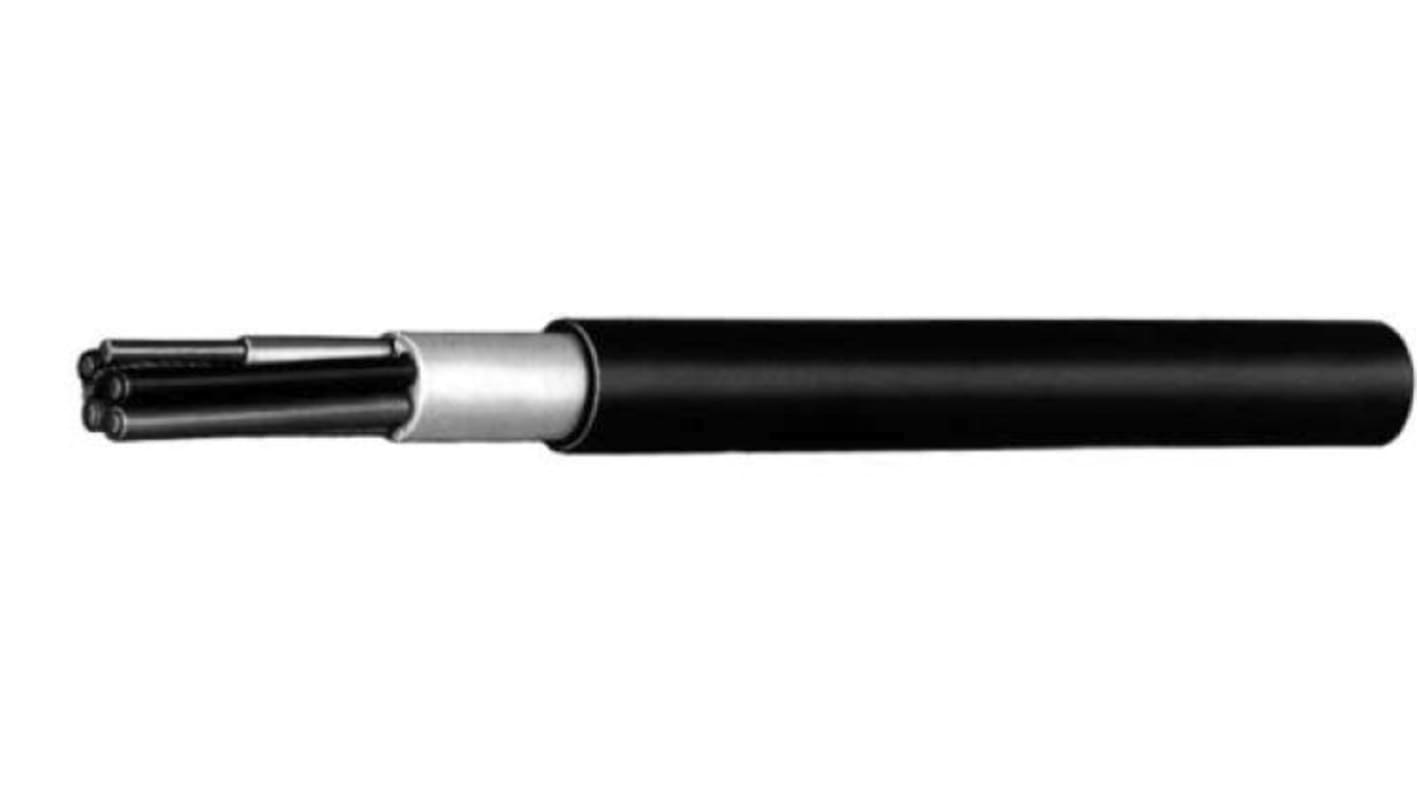

RS PRO Multicore Industrial Cable, 5 Cores, 4 mm², Unscreened, 100m, Black PVC Sheath, 11 AWG
- RS Stock No.:
- 536-376
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£774.18
(exc. VAT)
£929.02
(inc. VAT)
- RS Stock No.:
- 536-376
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 5 | |
| Cross Sectional Area | 4 mm² | |
| American Wire Gauge | 11 AWG | |
| Conductor Material | Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Black | |
| Screen Type | Foil | |
| Screened/Unscreened | Unscreened | |
| Outer Diameter | 16mm | |
| Length | 100m | |
| Minimum Bend Radius | 6 x Diameter | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +90°C | |
| Fire Behaviour | Flame Retardant | |
| Minimum Operating Temperature | -10°C | |
| Drain Wire | Yes | |
| Insulation Material | XLPE | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 5 | ||
Cross Sectional Area 4 mm² | ||
American Wire Gauge 11 AWG | ||
Conductor Material Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Black | ||
Screen Type Foil | ||
Screened/Unscreened Unscreened | ||
Outer Diameter 16mm | ||
Length 100m | ||
Minimum Bend Radius 6 x Diameter | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +90°C | ||
Fire Behaviour Flame Retardant | ||
Minimum Operating Temperature -10°C | ||
Drain Wire Yes | ||
Insulation Material XLPE | ||
- COO (Country of Origin):
- IT
RS PRO multicore rigid cables
From RS PRO, comes a range of great value multicore rigid cables. Manufactured to industry standards, these great value cables are a fantastic solution for a variety of electrical equipment and applications. All the models available in this range are excellent quality and highly reliable.
Features and benefits:
- Premium quality copper conductor
- 0.055 mm² and 0.06 mm²
- Flame retardant
- Outer black PVC sheath which shields it from the elements and eliminates low impact damage
- Maximum operating temperatures of +60 °C, +65 °C and +90 °C offered in this range of cables.
- Cable lengths of 50m and 100m offered in this range of cables
- Screened and unscreened cables are offered in this range of cables.
Applications
These Multicore cables have applications as a power supply for;
- Lighting
- Electrical devices
- Motors
- Electrical connections
- Risers
What is the difference between screened and unscreened cables?
Screened share a lot in common with unscreened cables however screened cables emit less electromagnetic energy which can cause signal interference with cables that are nearby.
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions
Note
Not recommended in areas that are flooded for more than two months of the year or in trenches forming drains.
Approvals
NC 32-201.
