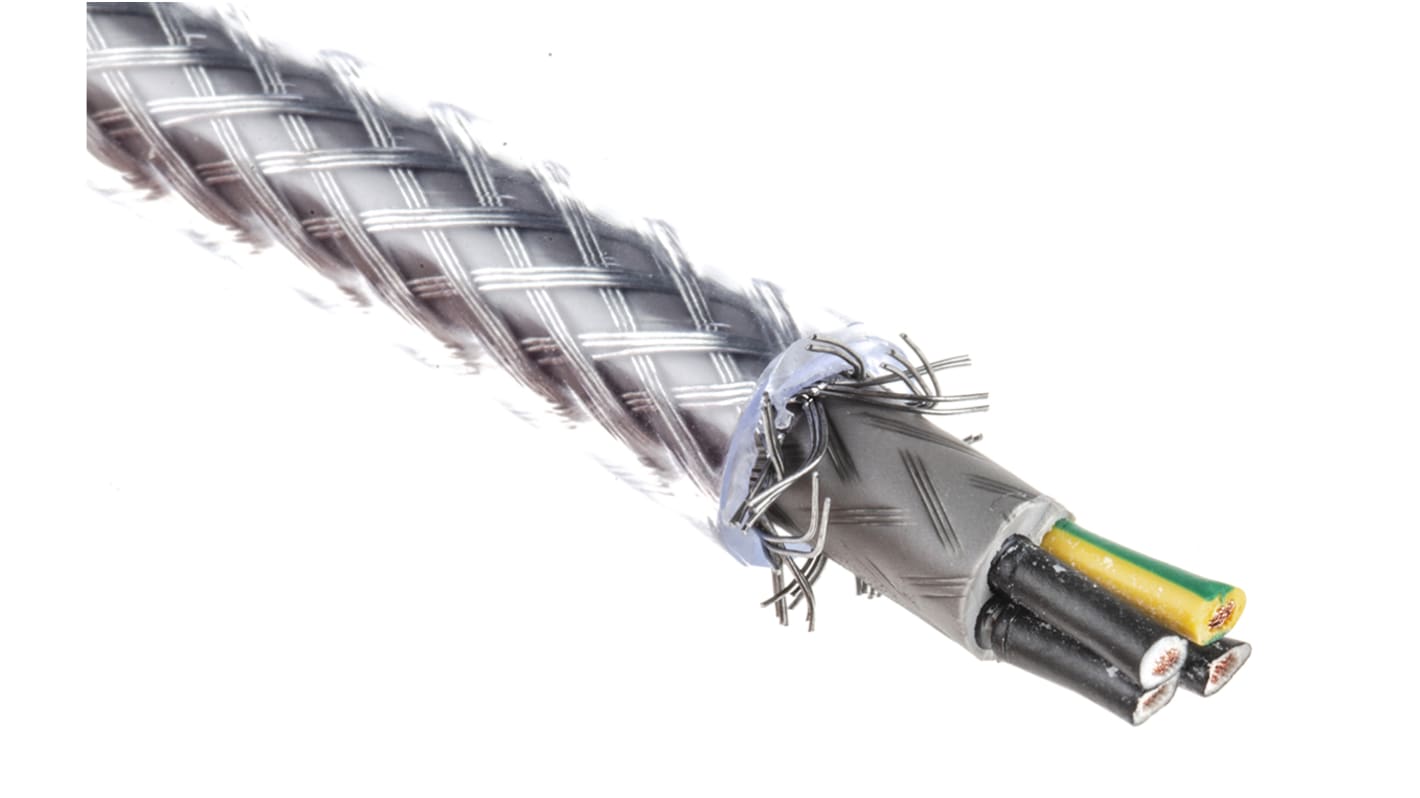

RS PRO Control Cable, 4 Cores, 0.75 mm², SY, Screened, 50m, Transparent PVC Sheath, 18 AWG
- RS Stock No.:
- 522-682
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£78.48
(exc. VAT)
£94.18
(inc. VAT)
- RS Stock No.:
- 522-682
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 4 | |
| Cross Sectional Area | 0.75 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Transparent | |
| Control Cable Type | SY | |
| Screen Type | Galvanised Steel | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Outer Diameter | 8.8mm | |
| Minimum Bend Radius | 8 x Diameter | |
| Voltage Rating | 300/500 V | |
| Current Rating | 4.5 A | |
| Maximum Operating Temperature | +80°C | |
| Core Strands | 24/0.2 mm | |
| Earth Cable | No | |
| Insulation Material | PVC | |
| Bedding Material | PVC | |
| Minimum Operating Temperature | -20°C | |
| Conductor Resistance | 28.1 Ω/km | |
| Filler Material | Chalk | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 4 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Transparent | ||
Control Cable Type SY | ||
Screen Type Galvanised Steel | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Outer Diameter 8.8mm | ||
Minimum Bend Radius 8 x Diameter | ||
Voltage Rating 300/500 V | ||
Current Rating 4.5 A | ||
Maximum Operating Temperature +80°C | ||
Core Strands 24/0.2 mm | ||
Earth Cable No | ||
Insulation Material PVC | ||
Bedding Material PVC | ||
Minimum Operating Temperature -20°C | ||
Conductor Resistance 28.1 Ω/km | ||
Filler Material Chalk | ||
- COO (Country of Origin):
- CN
