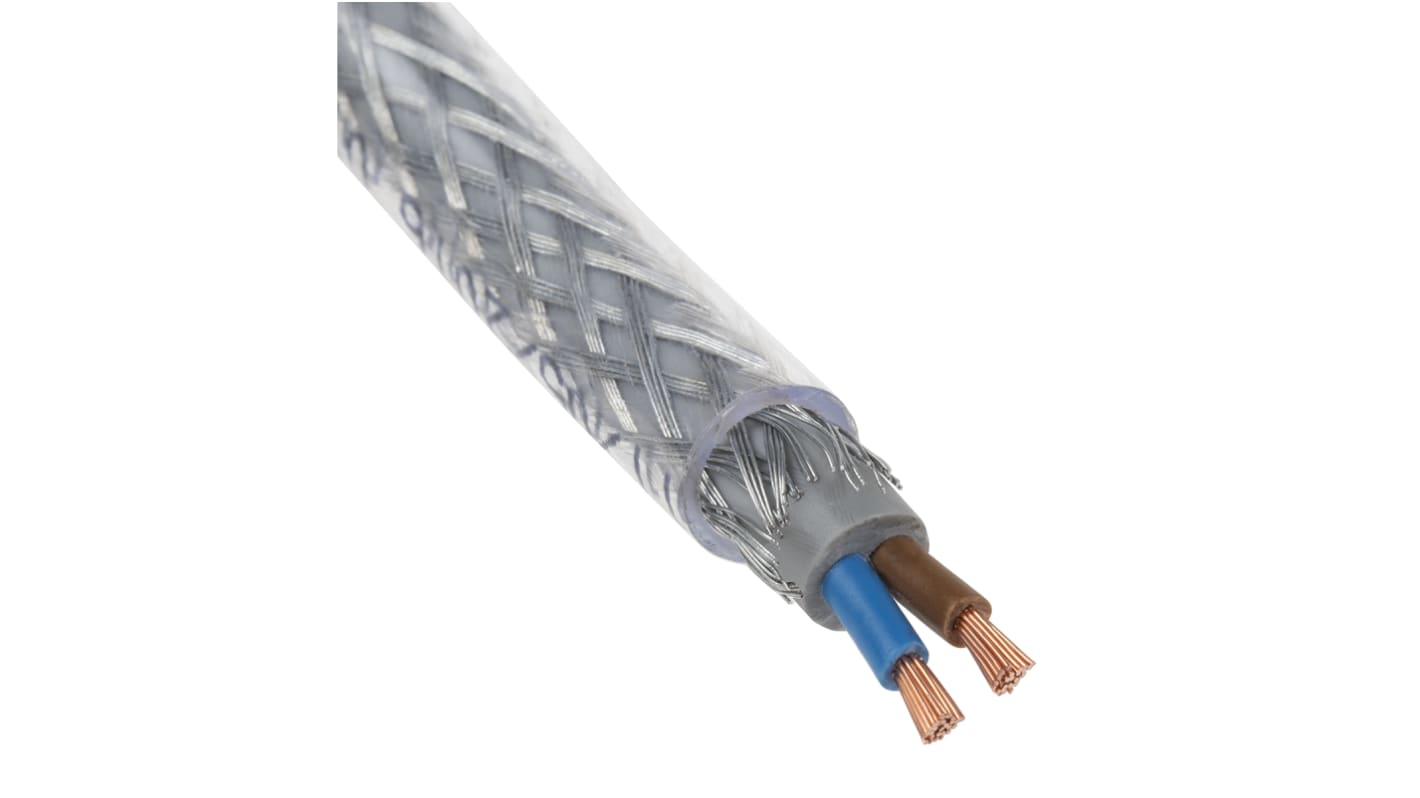

RS PRO SY Control Cable, 2 Cores, 1.5 mm², Screened, 50m, Transparent PVC Sheath, 15
- RS Stock No.:
- 522-535
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 reel of 50 metres)*
£68.09
(exc. VAT)
£81.71
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | £68.09 | £1.362 |
| 5 - 9 | £64.68 | £1.294 |
| 10 + | £59.51 | £1.19 |
*price indicative
- RS Stock No.:
- 522-535
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 2 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 15 | |
| Conductor Material | Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Transparent | |
| Screen Type | Galvanised Steel | |
| Screened/Unscreened | Screened | |
| Outer Diameter | 9.4mm | |
| Length | 50m | |
| Minimum Bend Radius | 8 x Diameter | |
| Voltage Rating | 300/500 V | |
| Current Rating | 9 A | |
| Maximum Operating Temperature | +80°C | |
| Earth Cable | No | |
| Core Strands | 30/0.25 mm | |
| Bedding Material | PVC | |
| Conductor Resistance | 13.7 Ω/km | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -20°C | |
| Filler Material | Chalk | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 2 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 15 | ||
Conductor Material Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Transparent | ||
Screen Type Galvanised Steel | ||
Screened/Unscreened Screened | ||
Outer Diameter 9.4mm | ||
Length 50m | ||
Minimum Bend Radius 8 x Diameter | ||
Voltage Rating 300/500 V | ||
Current Rating 9 A | ||
Maximum Operating Temperature +80°C | ||
Earth Cable No | ||
Core Strands 30/0.25 mm | ||
Bedding Material PVC | ||
Conductor Resistance 13.7 Ω/km | ||
Insulation Material PVC | ||
Minimum Operating Temperature -20°C | ||
Filler Material Chalk | ||
- COO (Country of Origin):
- CN
