Phoenix Contact SAC Bus Cable, 2 Cores, 0.25 mm² 24 AWG, Screened, 5 m, Silver Polyurethane Sheath
- RS Stock No.:
- 518-989
- Mfr. Part No.:
- 1419061
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 518-989
- Mfr. Part No.:
- 1419061
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Product Type | Bus Cable | |
| Number of Cores | 2 | |
| Conductor Material | Tin Plated Copper | |
| Jacket Material | Polyurethane | |
| Jacket Colour | Silver | |
| Screened/Unscreened | Screened | |
| Cable Length | 5m | |
| Outside Diameter | 6.7 mm | |
| Voltage | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | UL AWM Style 21198, UL 1581 Sec.1060 (FT-1), IEC 60754-1, IEC 60332-1, EAC-RoHS, cULus | |
| Cable CSA | 0.25 mm² | |
| Hazardous Area Certification | No | |
| American Wire Gauge | 24AWG | |
| Fire Behaviour | Flame Retardant | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Product Type Bus Cable | ||
Number of Cores 2 | ||
Conductor Material Tin Plated Copper | ||
Jacket Material Polyurethane | ||
Jacket Colour Silver | ||
Screened/Unscreened Screened | ||
Cable Length 5m | ||
Outside Diameter 6.7 mm | ||
Voltage 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals UL AWM Style 21198, UL 1581 Sec.1060 (FT-1), IEC 60754-1, IEC 60332-1, EAC-RoHS, cULus | ||
Cable CSA 0.25 mm² | ||
Hazardous Area Certification No | ||
American Wire Gauge 24AWG | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- PL

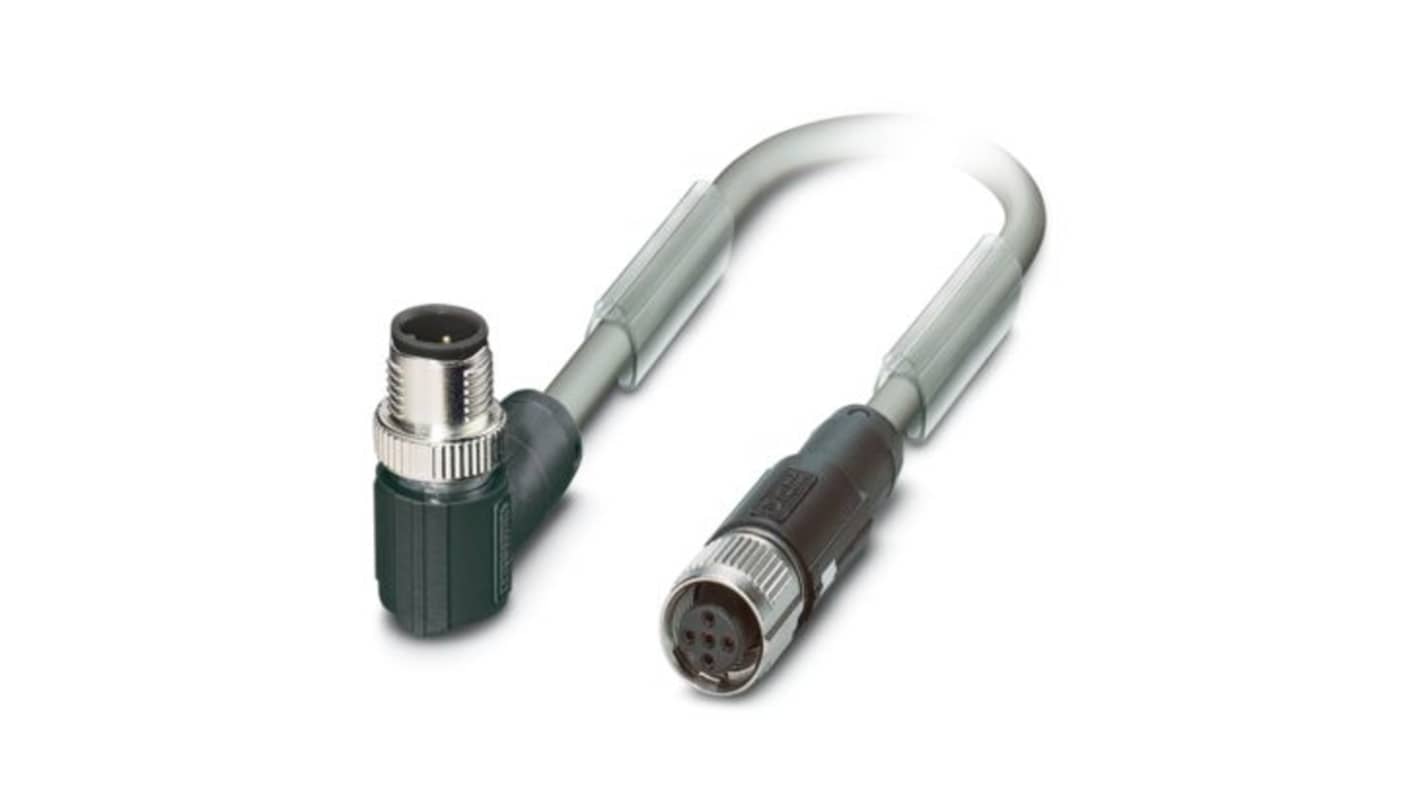

The Phoenix Contact Bus System Cable offers exceptional performance tailored for demanding industrial applications. Designed to seamlessly integrate with systems employing CANopen and DeviceNet protocols, this preassembled data cable is equipped with a robust structure ensuring superior reliability and durability. With its shielded construction, it provides effective protection against electromagnetic interference, making it ideal for environments with challenging conditions. This cable features a length of 5 metres, ensuring ample flexibility for various setups. Engineered with halogen free materials, it promotes safety and environmental compliance, which is crucial for modern industrial practices.
Preassembled for quick and easy installation
Includes angled M12 SPEEDCON connectors for secure connectivity
Engineered for durability in rigorous industrial environments
Effective temperature range for diverse operational conditions
Robust construction allows for greater flexibility in applications
