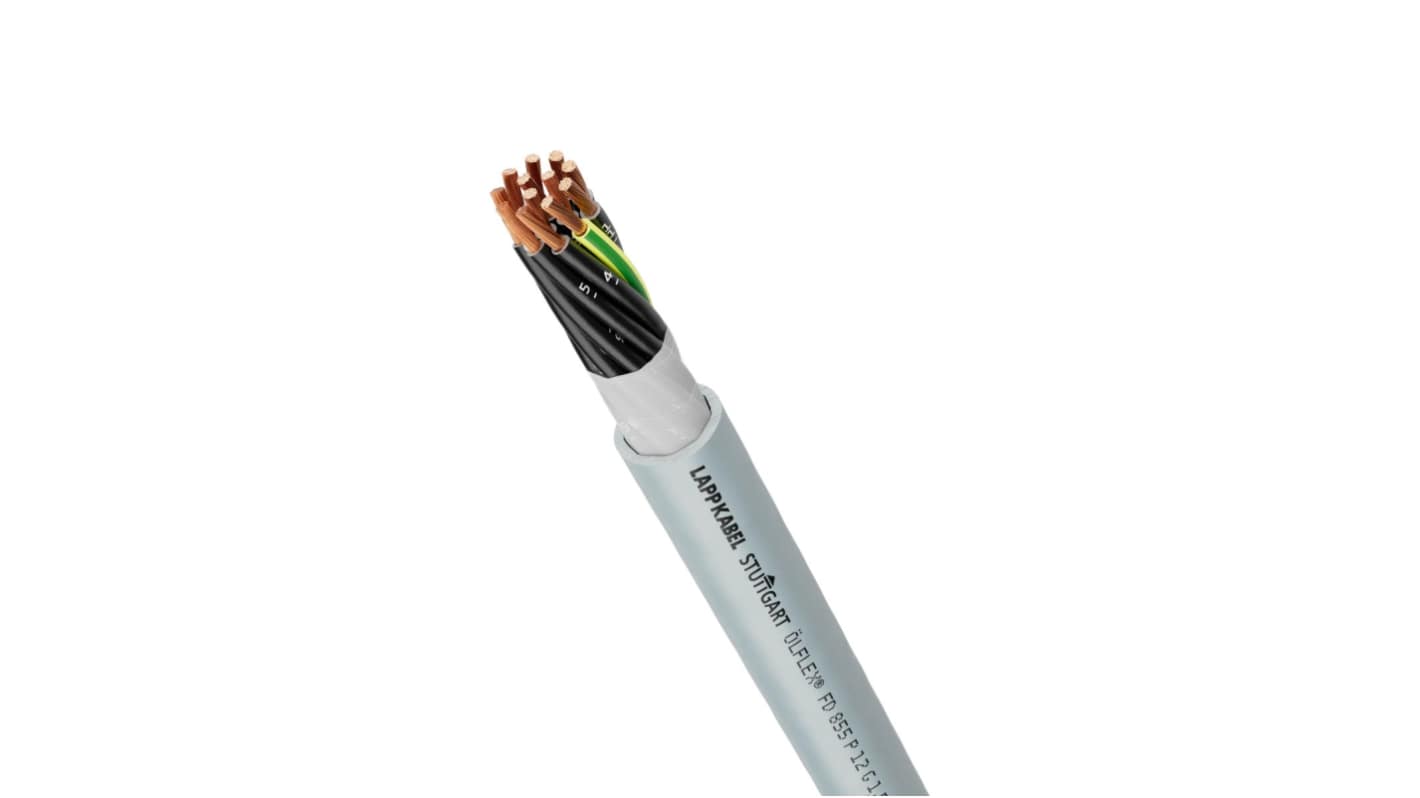

Lapp OLFLEX FD 855 P Control Cable, 12 Cores, 1.5mm² 16 AWG, Unscreened, Silver Grey Polyurethane Compound Sheath
- RS Stock No.:
- 433-420
- Mfr. Part No.:
- 0027579
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£733.80
(exc. VAT)
£880.56
(inc. VAT)
FREE delivery for orders over £60.00
- 1 unit(s) shipping from 11 December 2026
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £733.80 | £14.676 |
*price indicative
- RS Stock No.:
- 433-420
- Mfr. Part No.:
- 0027579
- Brand:
- Lapp
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | OLFLEX FD 855 P | |
| Product Type | Control Cable | |
| Number of Cores | 12 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyurethane Compound | |
| Jacket Colour | Silver Grey | |
| Screened/Unscreened | Unscreened | |
| Outside Diameter | 12.7mm | |
| Voltage | 300V, 500V | |
| Conductor Type | Extra Fine | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | UL AWM 758, Style 21576 (File No. E63634) cRU AWM I/II A (File No. E63634) | |
| Maximum Operating Temperature | 80°C | |
| Cable CSA | 1.5mm² | |
| Hazardous Area Certification | No | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 | |
| American Wire Gauge | 16AWG | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series OLFLEX FD 855 P | ||
Product Type Control Cable | ||
Number of Cores 12 | ||
Conductor Material Bare Copper | ||
Jacket Material Polyurethane Compound | ||
Jacket Colour Silver Grey | ||
Screened/Unscreened Unscreened | ||
Outside Diameter 12.7mm | ||
Voltage 300V, 500V | ||
Conductor Type Extra Fine | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals UL AWM 758, Style 21576 (File No. E63634) cRU AWM I/II A (File No. E63634) | ||
Maximum Operating Temperature 80°C | ||
Cable CSA 1.5mm² | ||
Hazardous Area Certification No | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 | ||
American Wire Gauge 16AWG | ||
- COO (Country of Origin):
- DE
LAPP Series P Control Cable, 500V Voltage, Grey Jacket - 0027579
Features and Benefits:
• -50°C lower limit for low-temperature deployment
• 80°C upper limit allowing higher ambient operation
• Extra-fine bare copper conductors for enhanced flexibility
• Flame-retardant jacket meeting IEC60332-1-2 for fire safety
Applications
• Ideal for industrial automation moving parts
• Used with mobile plant and machinery harnesses
• Can be used for factory-floor signal distribution
What is the conductor construction and how does it affect flexibility?
Which sheath compound is used and what does it provide?
What approvals cover electrical and fire test regimes?
How many cores and what gauge are provided for control circuits?
Is there a hazardous-area certification for use in explosive atmospheres?
