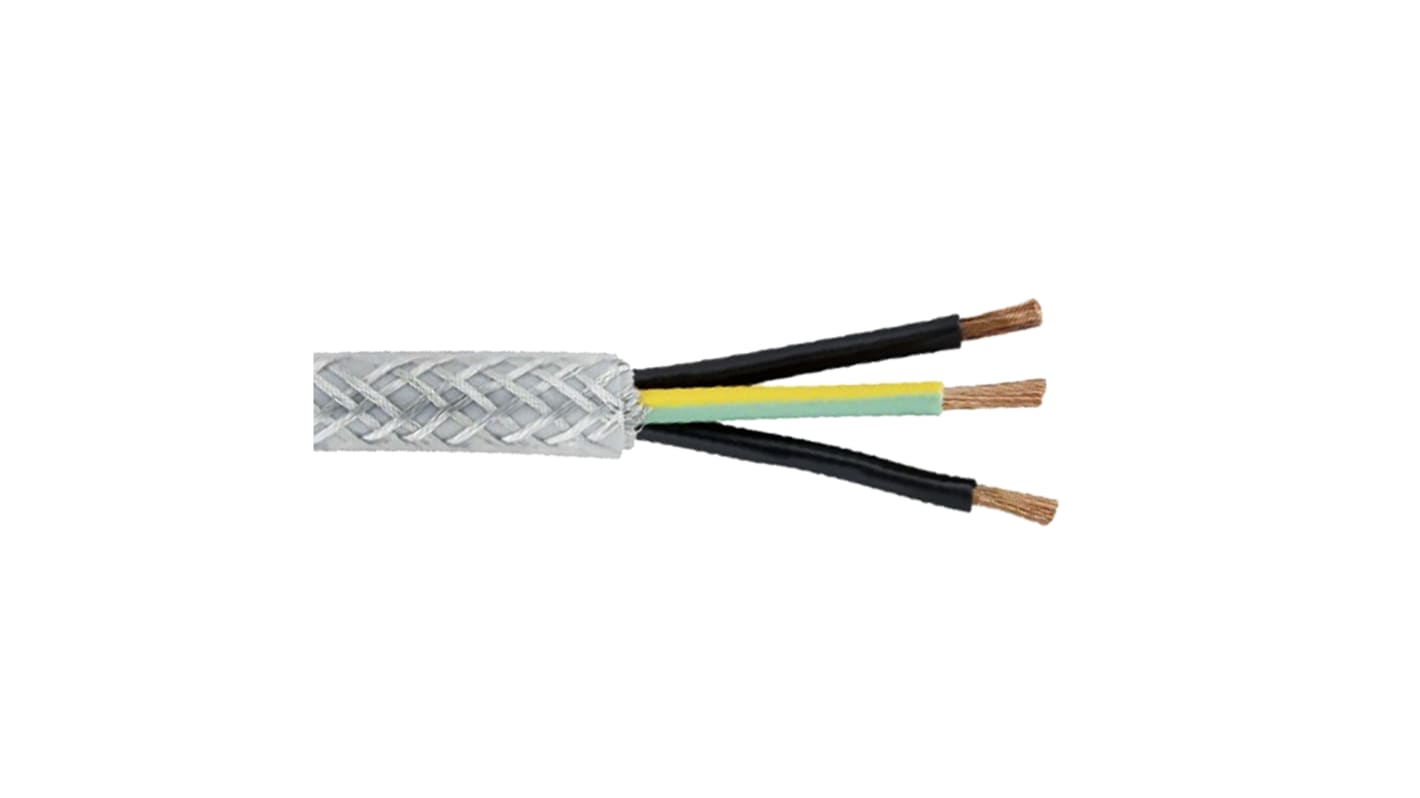

Belden Belden SY SY Control Cable, 3 Cores, 4 mm², Screened, 50m, Transparent PVC Sheath, 11 AWG
- RS Stock No.:
- 379-362
- Mfr. Part No.:
- SYSF03.0050
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 379-362
- Mfr. Part No.:
- SYSF03.0050
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | Belden SY | |
| Number of Cores | 3 | |
| Cross Sectional Area | 4 mm² | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Sheath Colour | Transparent | |
| American Wire Gauge | 11 AWG | |
| Outer Diameter | 13.23mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Minimum Operating Temperature | -5°C | |
| Oil Resistant | No | |
| Current Rating | 30 A | |
| Insulation Material | PVC | |
| Conductor Resistance | 4.95 Ω/km | |
| Maximum Operating Temperature | +70°C | |
| Screen Type | Galvanised Steel | |
| Earth Cable | Yes | |
| Bedding Material | PVC | |
| Voltage Rating | 300/500 V | |
| Conductor Material | Copper | |
| Minimum Bend Radius | 10 x D | |
| Core Strands | 56/0.3 mm | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series Belden SY | ||
Number of Cores 3 | ||
Cross Sectional Area 4 mm² | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Sheath Colour Transparent | ||
American Wire Gauge 11 AWG | ||
Outer Diameter 13.23mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant No | ||
Current Rating 30 A | ||
Insulation Material PVC | ||
Conductor Resistance 4.95 Ω/km | ||
Maximum Operating Temperature +70°C | ||
Screen Type Galvanised Steel | ||
Earth Cable Yes | ||
Bedding Material PVC | ||
Voltage Rating 300/500 V | ||
Conductor Material Copper | ||
Minimum Bend Radius 10 x D | ||
Core Strands 56/0.3 mm | ||
- COO (Country of Origin):
- CN
Flexible Armoured SY Type Mains Cable
Flexible mains cable, commonly known as an ’SY’ type, which has three layers of protection, combining the characteristics of a flexible mains cable with that of a steel wire armoured type.
Features and Benefits
·Flexible
·Good resistance to chemicals
·Flexible
·Good resistance to chemicals
Applications
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
Manufactured to VDE 2050 standard
Core colours:
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
Type SY
Note
SY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
