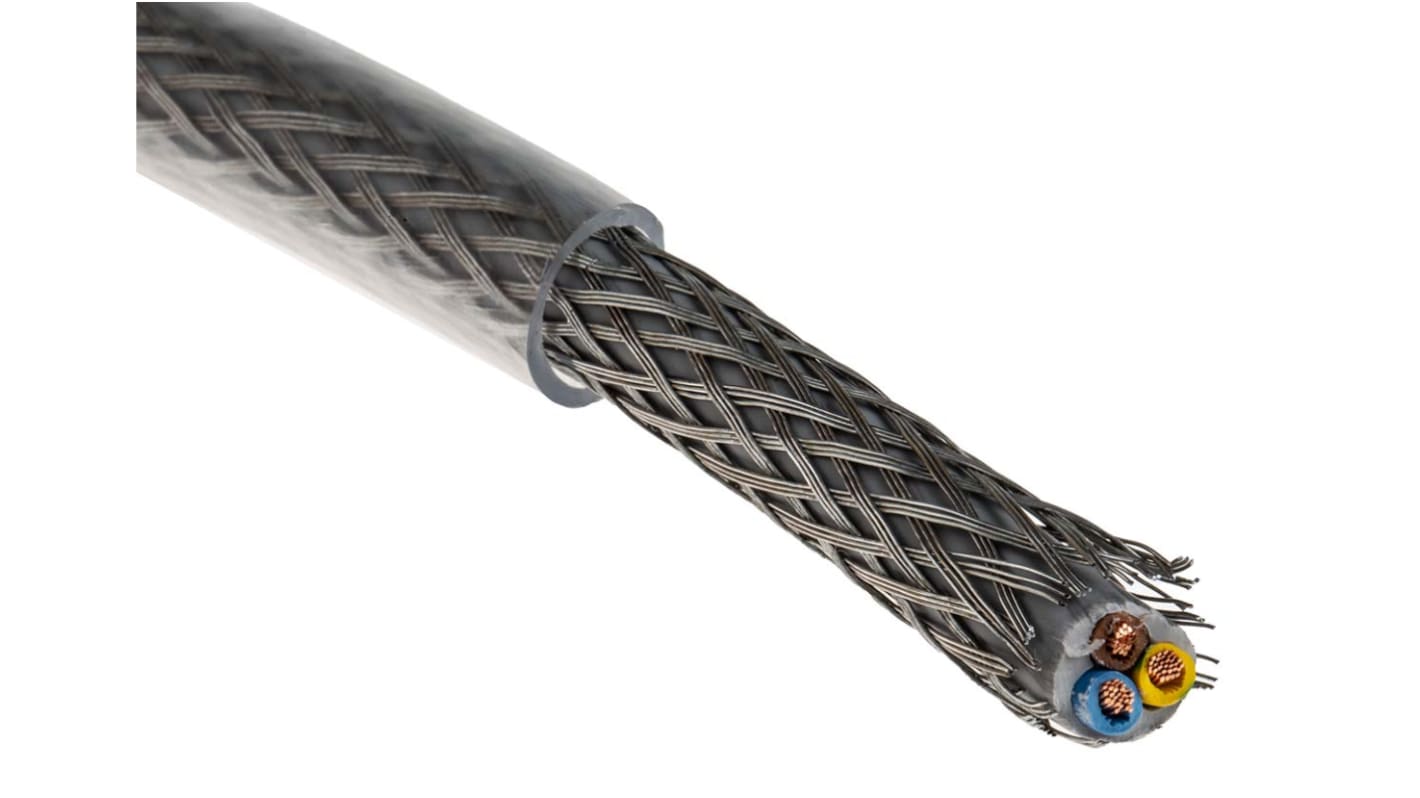

Belden Belden SY SY Control Cable, 3 Cores, 1.5 mm², Screened, 50m, Transparent PVC Sheath, 15 AWG
- RS Stock No.:
- 379-148
- Mfr. Part No.:
- SYSD03.0050
- Brand:
- Belden
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£91.93
(exc. VAT)
£110.32
(inc. VAT)
- RS Stock No.:
- 379-148
- Mfr. Part No.:
- SYSD03.0050
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | Belden SY | |
| Number of Cores | 3 | |
| Cross Sectional Area | 1.5 mm² | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Sheath Colour | Transparent | |
| American Wire Gauge | 15 AWG | |
| Outer Diameter | 10.03mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Core Strands | 30/0.25 mm | |
| Minimum Bend Radius | 10 x D | |
| Conductor Material | Copper | |
| Insulation Material | PVC | |
| Conductor Resistance | 13.3 Ω/km | |
| Maximum Operating Temperature | +70°C | |
| Voltage Rating | 300/500 V | |
| Bedding Material | PVC | |
| Earth Cable | Yes | |
| Screen Type | Galvanised Steel | |
| Current Rating | 10 A | |
| Minimum Operating Temperature | -5°C | |
| Oil Resistant | No | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series Belden SY | ||
Number of Cores 3 | ||
Cross Sectional Area 1.5 mm² | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Sheath Colour Transparent | ||
American Wire Gauge 15 AWG | ||
Outer Diameter 10.03mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Core Strands 30/0.25 mm | ||
Minimum Bend Radius 10 x D | ||
Conductor Material Copper | ||
Insulation Material PVC | ||
Conductor Resistance 13.3 Ω/km | ||
Maximum Operating Temperature +70°C | ||
Voltage Rating 300/500 V | ||
Bedding Material PVC | ||
Earth Cable Yes | ||
Screen Type Galvanised Steel | ||
Current Rating 10 A | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant No | ||
Flexible Armoured SY Type Mains Cable
Flexible mains cable, commonly known as an ’SY’ type, which has three layers of protection, combining the characteristics of a flexible mains cable with that of a steel wire armoured type.
Features and Benefits
·Flexible
·Good resistance to chemicals
·Flexible
·Good resistance to chemicals
Applications
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
·Ideal for applications where power is required in arduous situations, on automated or robotic equipment and where equipment may be subjected to vibration or movement.
Manufactured to VDE 2050 standard
Core colours:
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
·2-core: Brown, Blue
·3-core: Blue, Brown, Green/Yellow
·4-core: Blue, Brown, Black, Green/Yellow
·5-core: Blue, Brown, Black, Grey, Green/Yellow
·6-core: Green/Yellow + 5 numbered
·7-core: Green/Yellow + 6 numbered
·12-core: Green/Yellow + 11 numbered
·18 core: Green/Yellow + 17 numbered
·25 core: Green/Yellow + 24 numbered
Type SY
Note
SY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
