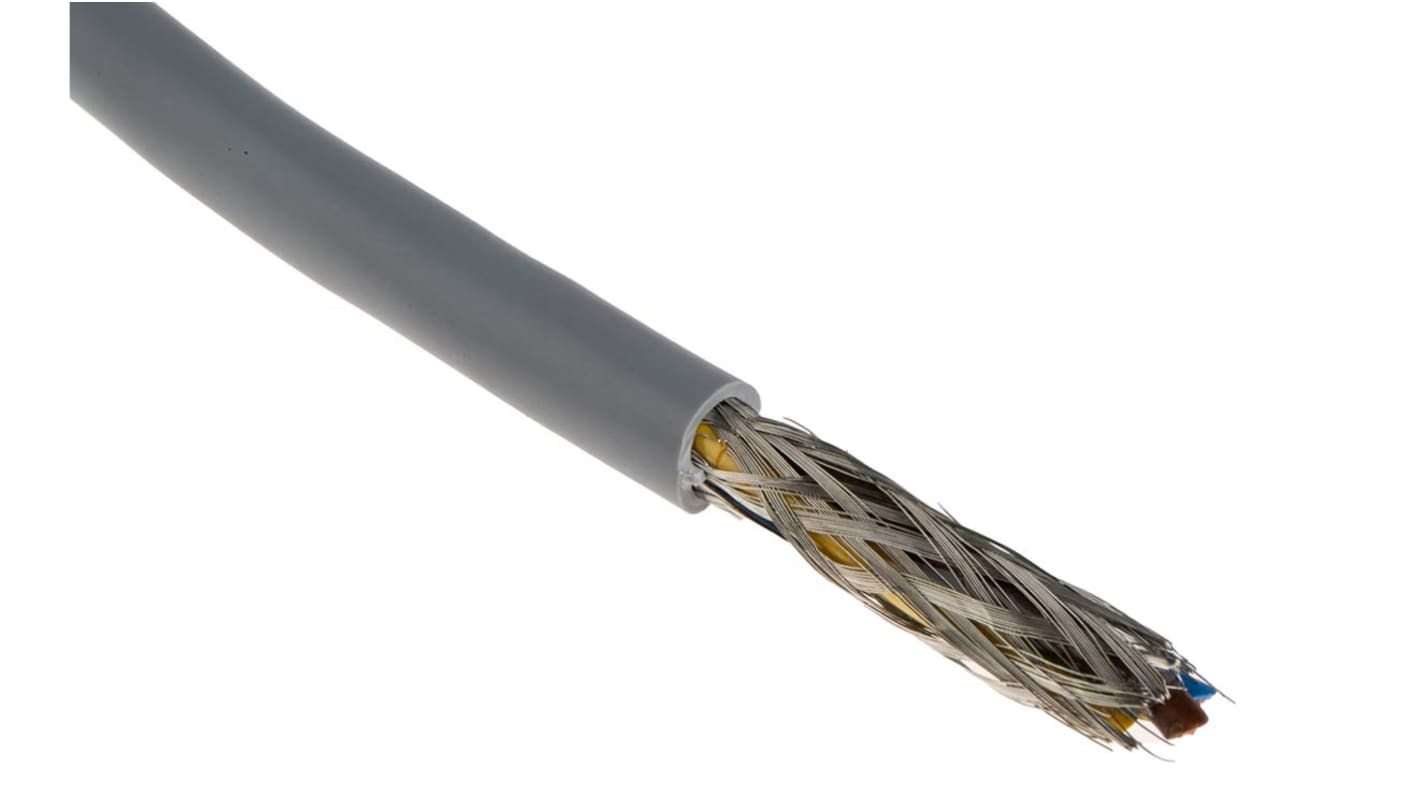

Belden Belden CY CY Control Cable, 3 Cores, 1 mm², Screened, 50m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 363-373
- Mfr. Part No.:
- CYSC03.0050
- Brand:
- Belden
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£144.00
(exc. VAT)
£172.80
(inc. VAT)
- RS Stock No.:
- 363-373
- Mfr. Part No.:
- CYSC03.0050
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | Belden CY | |
| Number of Cores | 3 | |
| Cross Sectional Area | 1 mm² | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Sheath Colour | Grey | |
| American Wire Gauge | 17 AWG | |
| Outer Diameter | 7.45mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Voltage Rating | 300/500 V | |
| Earth Cable | Yes | |
| Screen Type | Tinned Copper Braid | |
| Maximum Operating Temperature | +70°C | |
| Conductor Resistance | 19.5 Ω/km | |
| Insulation Material | PVC | |
| Current Rating | 10 A | |
| Minimum Bend Radius | 10 x D | |
| Core Strands | 32/0.2 mm | |
| Minimum Operating Temperature | -5°C | |
| Conductor Material | Copper | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series Belden CY | ||
Number of Cores 3 | ||
Cross Sectional Area 1 mm² | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Sheath Colour Grey | ||
American Wire Gauge 17 AWG | ||
Outer Diameter 7.45mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Voltage Rating 300/500 V | ||
Earth Cable Yes | ||
Screen Type Tinned Copper Braid | ||
Maximum Operating Temperature +70°C | ||
Conductor Resistance 19.5 Ω/km | ||
Insulation Material PVC | ||
Current Rating 10 A | ||
Minimum Bend Radius 10 x D | ||
Core Strands 32/0.2 mm | ||
Minimum Operating Temperature -5°C | ||
Conductor Material Copper | ||
- COO (Country of Origin):
- CN
Control Cable CY Type
CY Cables are screened flexible cables used as interconnecting cables for control, regulation and measurement in control equipment. Applications include: Assembly, production lines, conveyors and computer units. CY cable is ideal for applications requiring interference free transmission. Designed to be used outdoors when protected from UV radiation, also indoor environments that are subjected to dry or moist conditions. CY Cable has the flexibility to be temporarily moved without tensile stress.
Core Colours
3-core: Blue, Brown, Green/Yellow
4-core: Grey, Brown, Black, Green/Yellow (See note)
5-core: Blue, Brown, Black, Grey, Green/Yellow
7-core: Green/Yellow + 6 numbered
4-core: Grey, Brown, Black, Green/Yellow (See note)
5-core: Blue, Brown, Black, Grey, Green/Yellow
7-core: Green/Yellow + 6 numbered
Manufactured to VDE 2050 standard
Note
(4-core only) In accordance with 2004 European Harmonised colours for installation cable.
Note
CY control cables are not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
